Description
*Pictured in Aluminum* – All current models will be built with Aluminum composite panels 2mm thick with choice of 15 plus colors – Diamond tread front and rear corners – Diamond tread fenders – 3” Bottom trim!

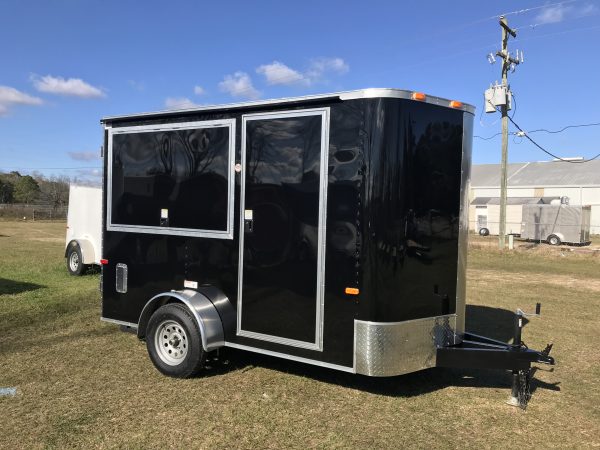

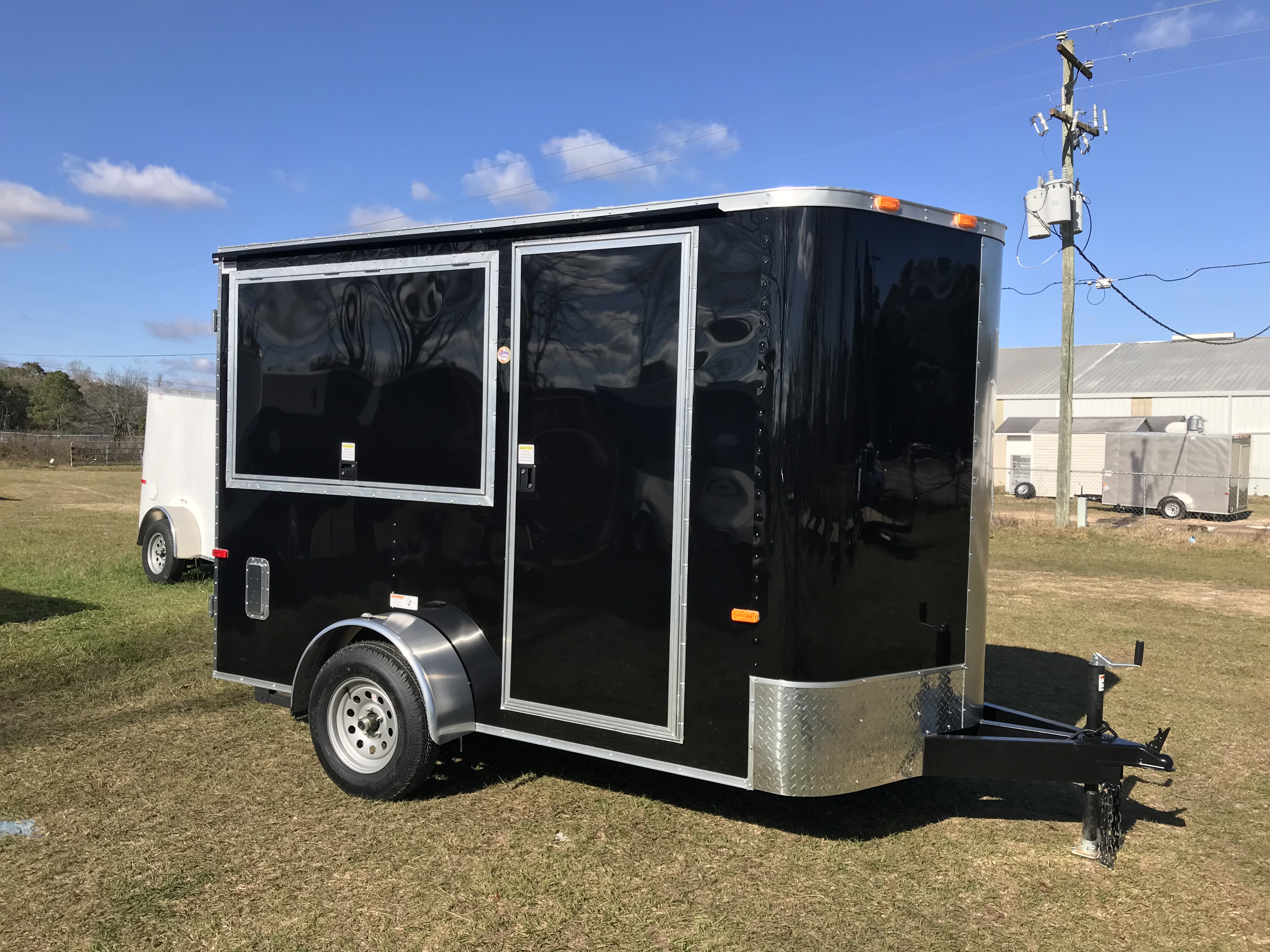

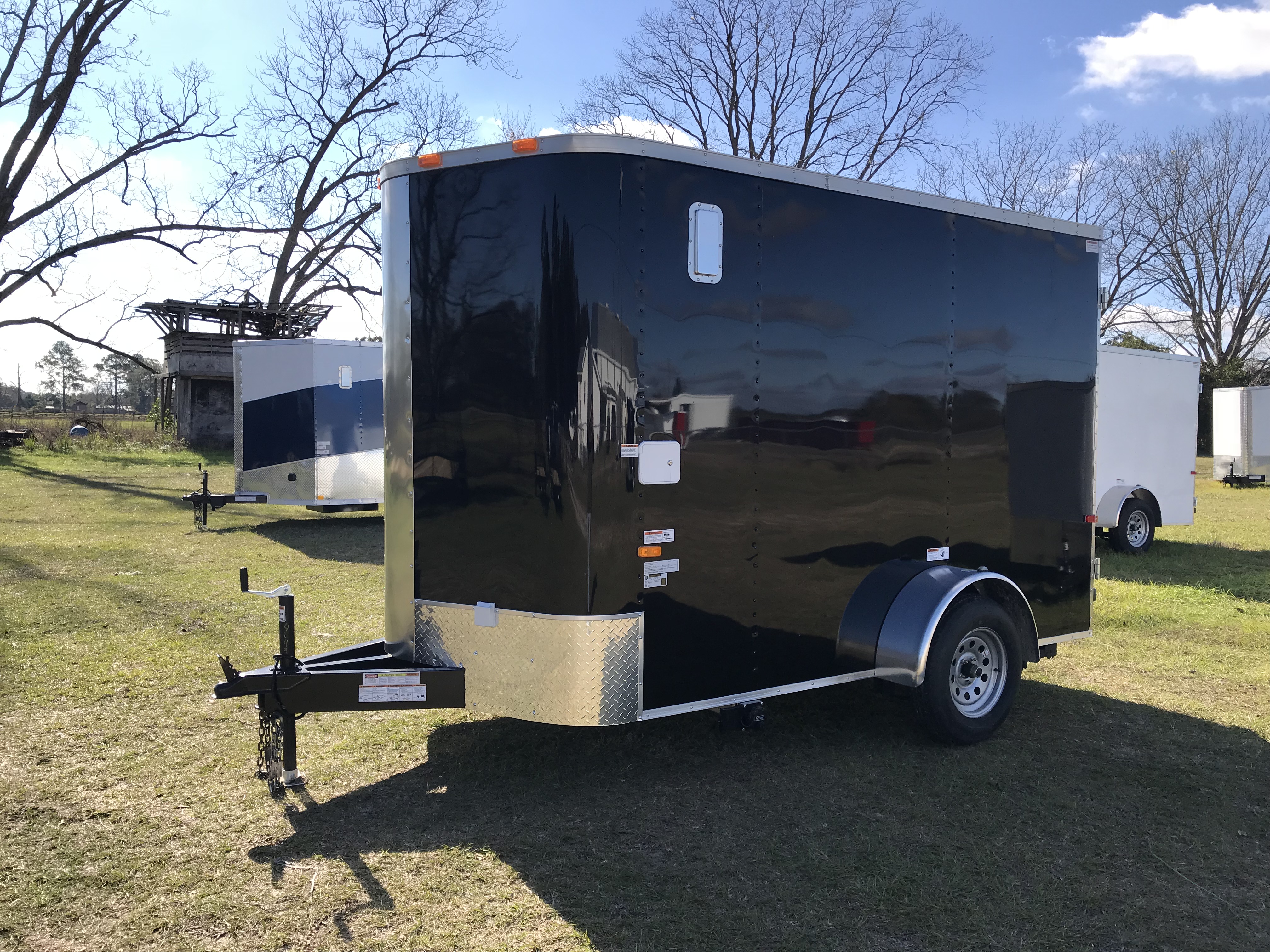

6×10 Single Axle – Small Concession Trailer
Included Features:
2 Foot rounded V-nose in addition to 10 foot box
Triple Tube Tongue
Extended tongue
2×6 Tubular Main frame (No I-Beam)
16″ on center floor cross members
Tubular 16″ on center wall studs
Tubular 16″ on center ceiling studs
4400# Dropped Leaf Spring Axle
Electric brakes on axle with breakaway kit
Easy Lube Hubs
Black Exterior Aluminum Composite Panels 2mm
Diamond tread front and rear corners
Diamond tread fenders
3” Bottom trim
Semi Screwless Exterior
Aluminum Flow Through Vents

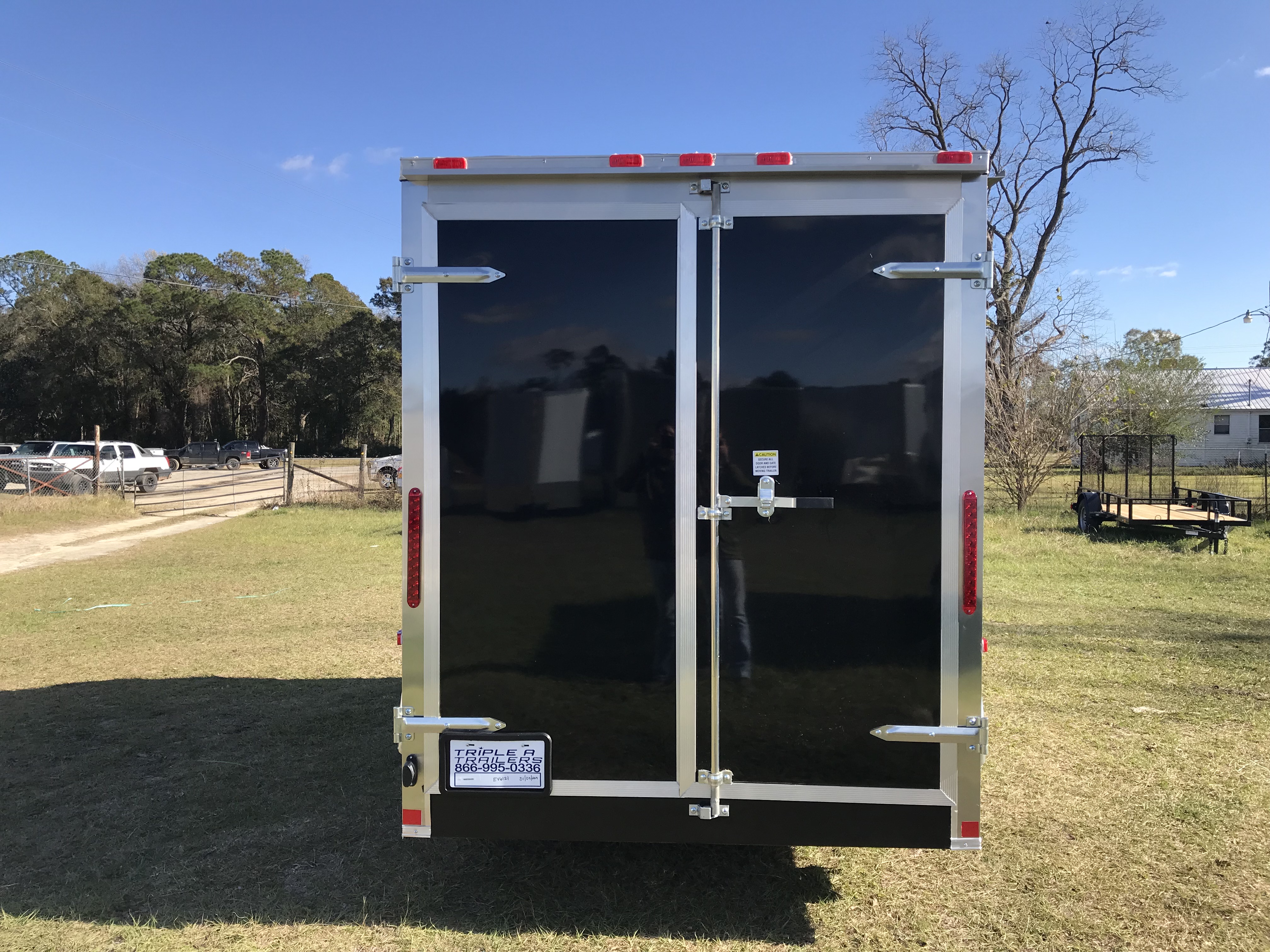

Double Rear Doors
3/4″ Plywood Floor
7/16″ OSB Walls
White vinyl walls and ceiling
Insulated walls and ceiling
Vinyl Flooring
15″ silver mod Wheels
225/75/15 Radial Tires
6 foot 6 Inch Interior Height
(1) 40×64″ concession window – No Glass or screens
All LED Lights
2″ Front Coupler
(1) 12 volt dome light
32″ R/V Style Side Door
Rear Fold down Stabilizer Jacks
Corrugated galvanized Mesa roof
Black Undercoating
Drip Edges Over All Doors
Sand foot
Deluxe license plate holder
50 Amp electrical Package
(5) Interior Outlets
(2) 4′ Foot LED Lights
50 Amp Panel Box w/ Motor Base Plug
50 Amp Ship To Shore Cord (25 foot lifeline to power the trailer)
Hot & Cold Water package includes:

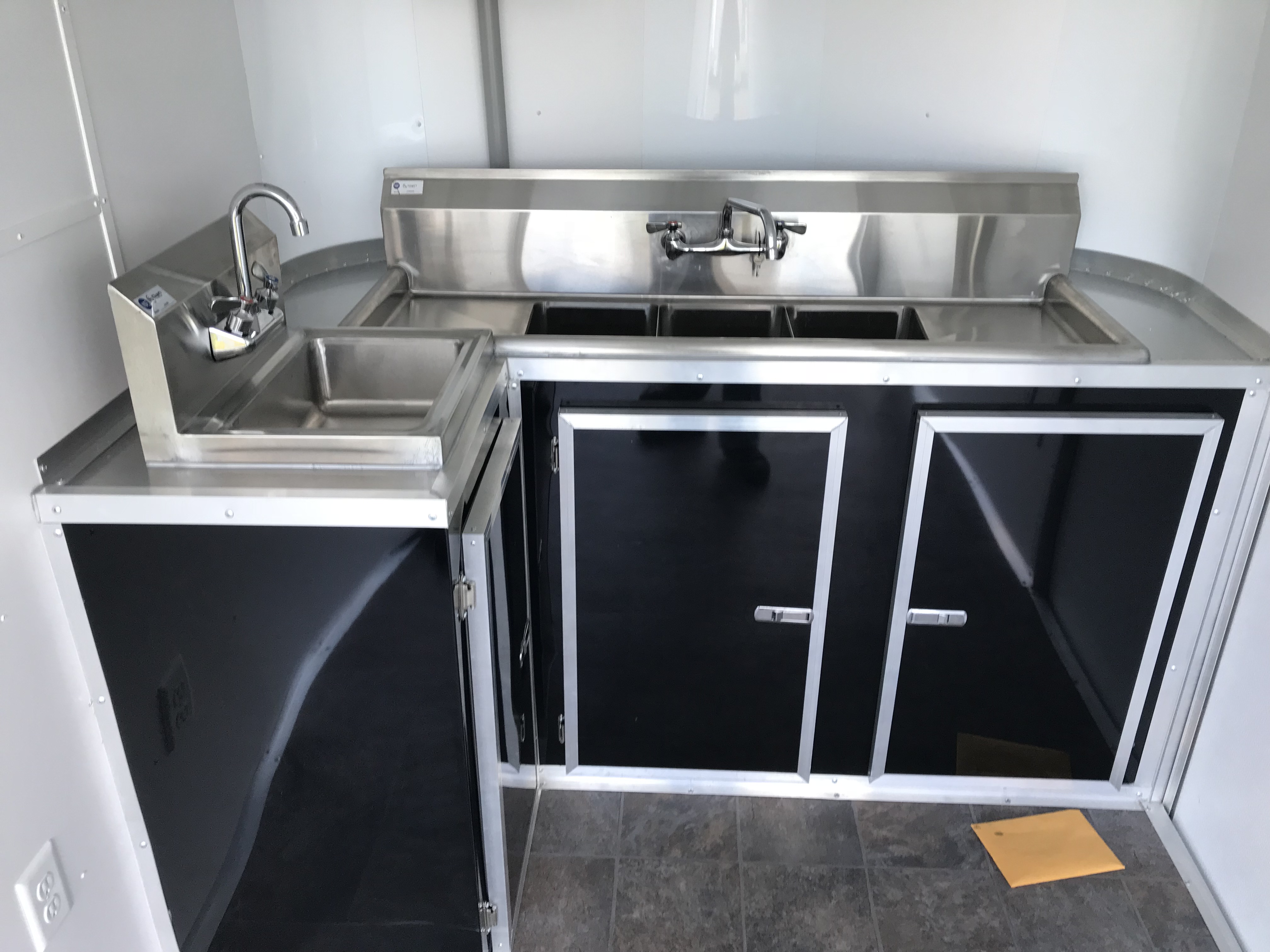

Three Compartment Sinks and Hand wash sinks set inside base cabinets
6 gallon Hot water Heater
52 Gallon Gray water tank & 30 Gallon Fresh Water Tank
120 Volt On Demand Water Pump
Splash Guard and Drain Boards
