Description

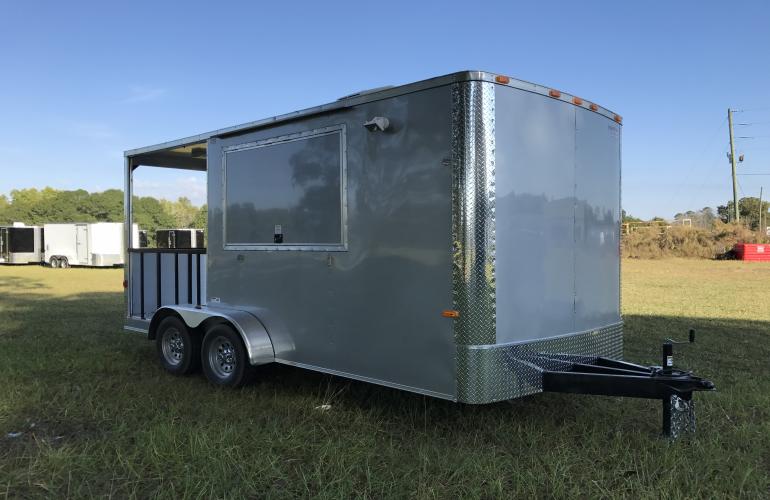

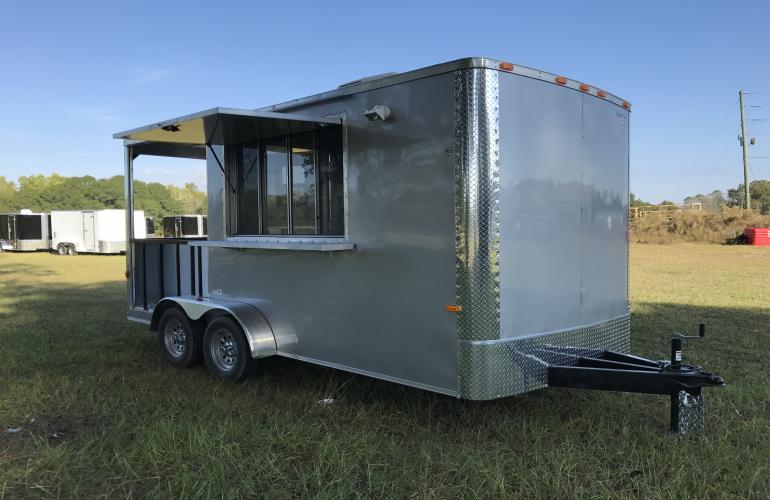

7′ X 16′ Tandem BBQ Competition Trailer with Porch

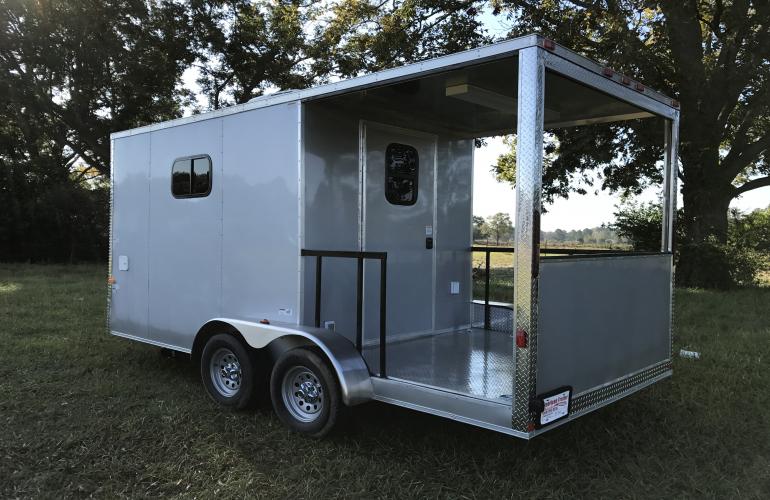

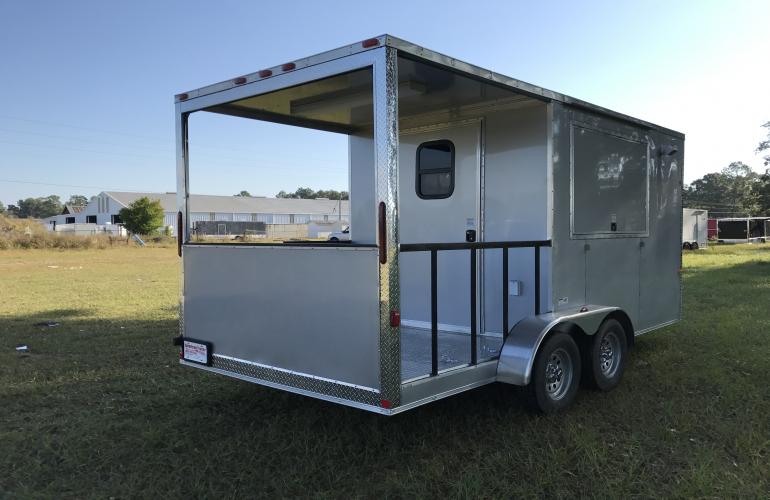

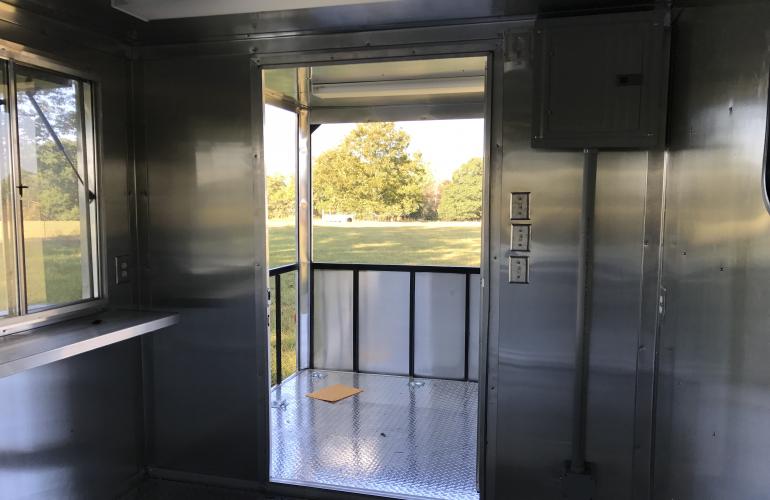

This trailer has a 10 foot box with a 6 foot porch with handrails. Features a 36″ wide opening for porch access.

• 38 Gallon waste water tank with Drain Valve Installed under the floor of the trailer and a 26 Fresh Water Tank is uninstalled with the trailer (this option is available if you prefer to install sinks at a later date)
• City gravity water fill piece installed

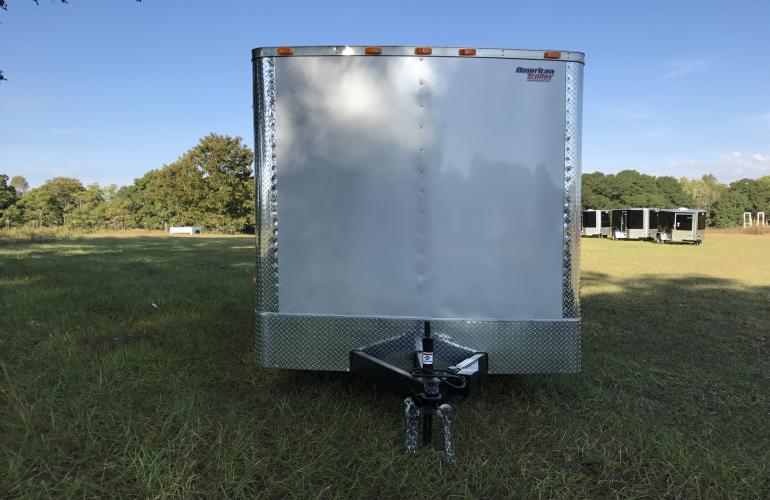

• Radius Front Nose Design

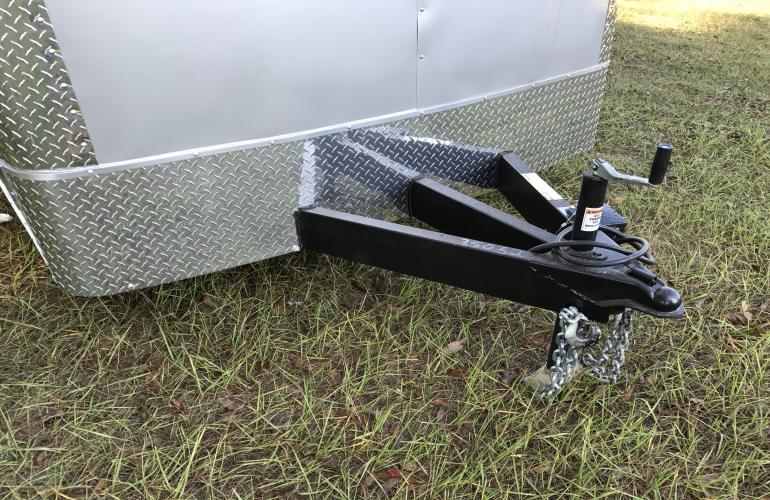

• Triple Tube Tongue
• 2×6 Tubular Main frame
• 16″ on center floor cross members
• Tubular 16″ on center wall studs
• Tubular 16″ on center ceiling cross members
• Styrofoam Insulated Walls and Ceiling
• 3500 lb. Dropped Leaf Spring Axles
• Electric Brakes (both axles)
• Easy Lube Hubs
• Electric Brake Wiring ran inside steel tubing main frame
• Radial Tires 205/75/15
• Silverfrost in color

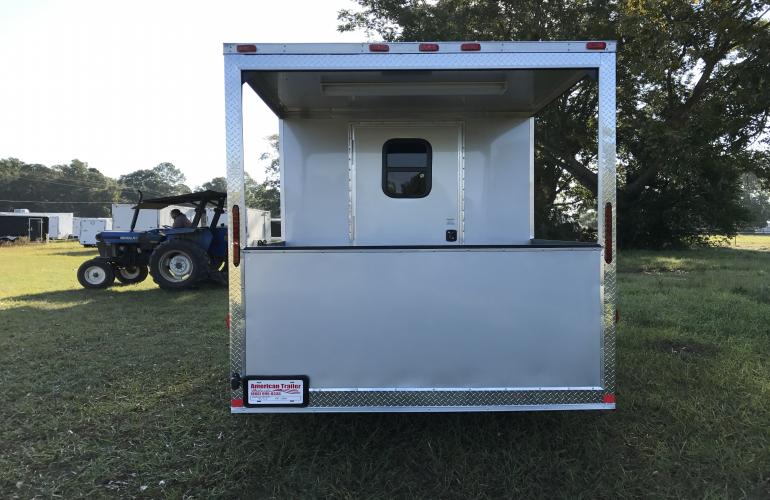

• Handrail on the rear covered with Silverfrost aluminum
• Semi Screwless Exterior
• Diamond Tread front Stone Guard
• Diamond Tread Front and Rear and Top header
• Smooth Aluminum Fenders
• (8) Floor D-rings welded in place
• 3/4″ Plywood Floor Painted Gray
• 7/16″ OSB Walls and ceiling
• Aluminum interior walls – Mil Finish
• Aluminum interior Ceiling – Mil Finish (enclosed and porch)
• 15″ silver mod Wheels
• 7 foot Interior Height

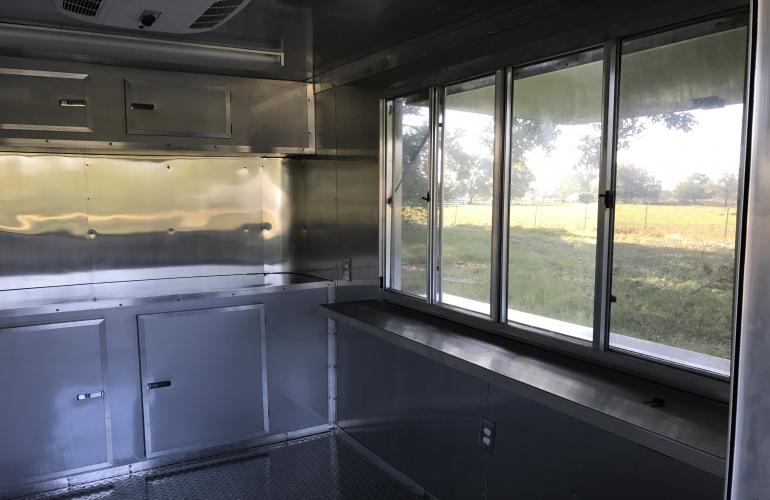

• (1) 40″ x 64″ Concession window with sliding glass windows
• Sliding Screen over the concession window
• Removable Aluminum Exterior Serving Shelf
• Removable Aluminum Interior Serving Shelf
• (1) 12 volt dome light

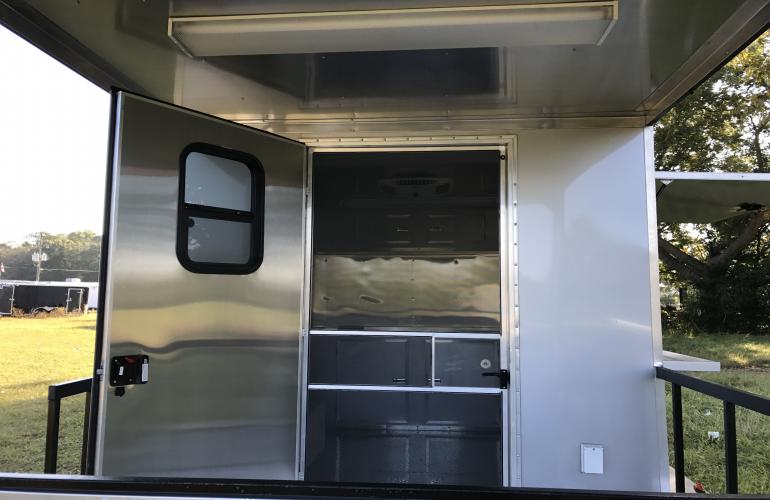

• (1) 36″ R/V Style Door with Screen Door
• 15″x18″ tinted sliding glass window in the door

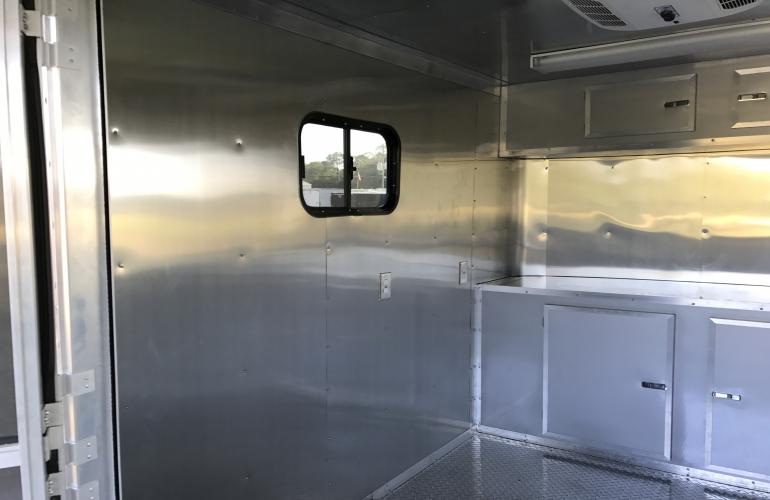

• Tinted 15″ x 30″ tinted sliding glass window w/ screen (Road side)

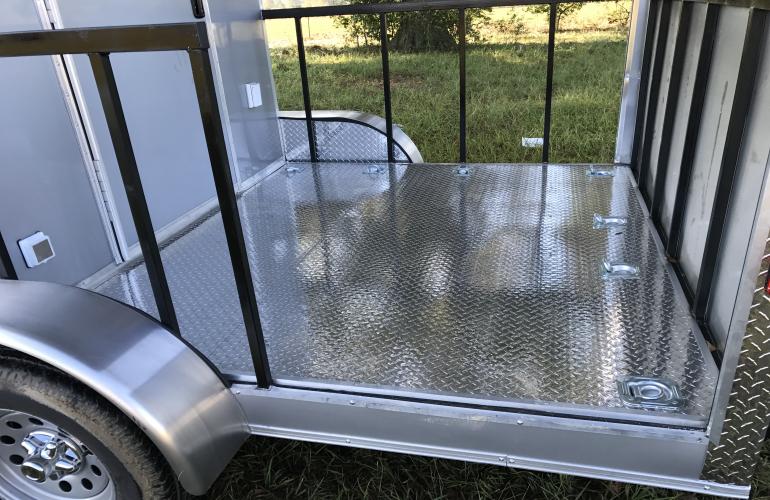

• Heavy Gauge .063 diamond Tread Flooring Interior and Porch

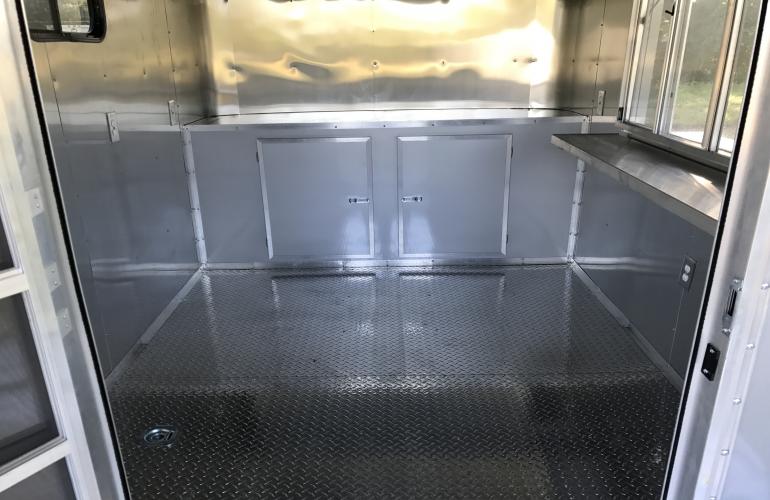

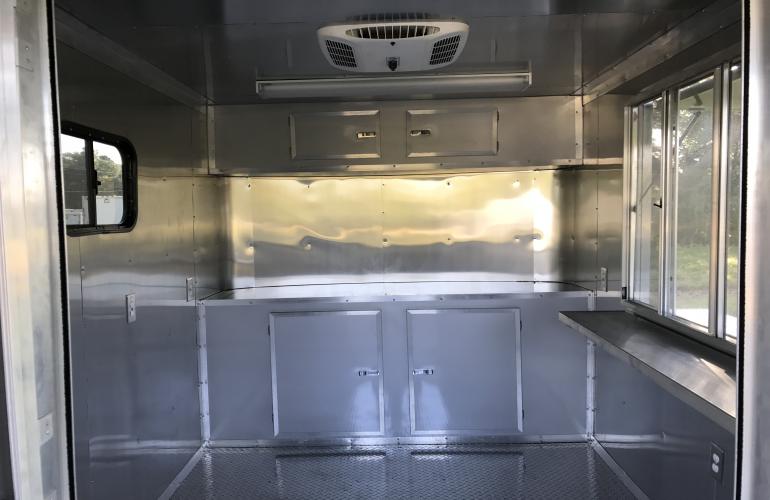

• 7 Foot of Base Cabinets in silverfrost Aluminum across the front at the bottom
• 7 Foot upper cabinets In silverfrost aluminum across the top front
• Dust shield
• Solid front wall construction
• Corrugated Galvanized Mesa roof
• Access panels to fender lights
• Asphalt Undercoating
• Drip Edges Over All Doors
• Sand foot
• Deluxe license plate holder
• 2 5/16 Front Coupler

50 Amp Electrical Package:

• (7) Outlets inside
• (3) Fluorescent Lights
• 50 Amp Panel Box
• (1) GFCI Outlet – Located on the porch
• (1) 150 Watt Outside Flood light
• 13,500 BTU A/C unit with heat strip
• 50 Amp Ship to Shore Cord (25 foot lifeline to power the trailer)
• LED Tail Lights
