Description

*Pictured in Aluminum* – All current models will be built with Aluminum composite panels 2mm thick with choice of 15 plus colors – Diamond tread front and rear corners – Diamond tread fenders – 3” Bottom trim!

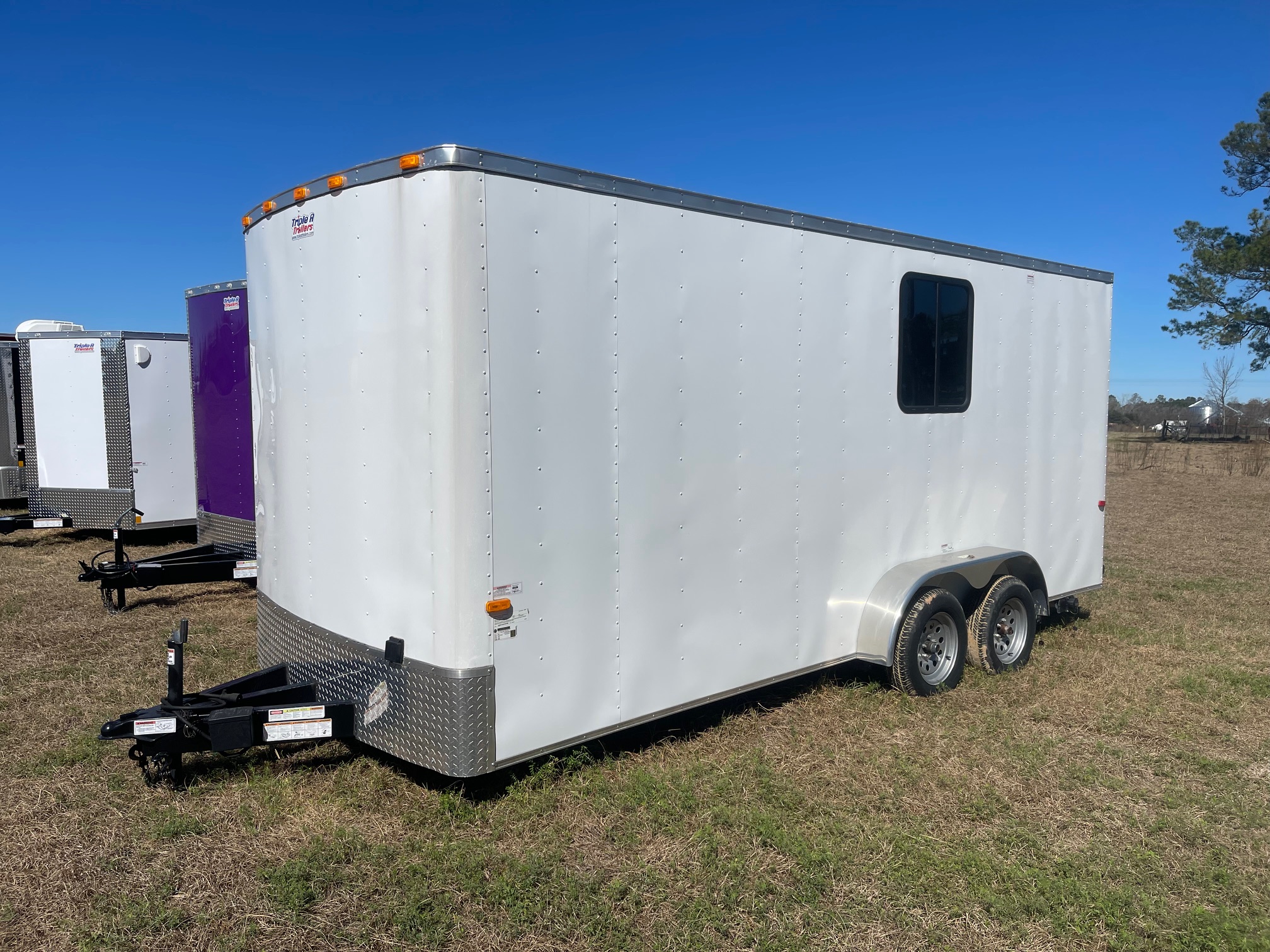

7 x 18 Tandem Axle Trailer

Radius Nose Design
Included Features:
2×6 Steel Tubular main frame (No I-Beam)
Triple tube Tongue
16″ on center floor cross members
Tubular 16″ on center wall studs
Tubular 16″ on center ceiling
3/4″ Plywood Floor
7/16″ OSB Walls
White Vinyl Walls and Ceiling
Styrofoam Insulated walls and ceiling
Tandem 3500 lb dropped leaf spring axles
Electric brakes on both axles
Easy Lube Hub
15″ Silver Mod Steel Wheels
205/75/15 Radial Tires
Screwed exterior
White exterior aluminum composite panels 2mm
Diamond tread front and rear corners
Diamond tread fenders
3” Bottom trim

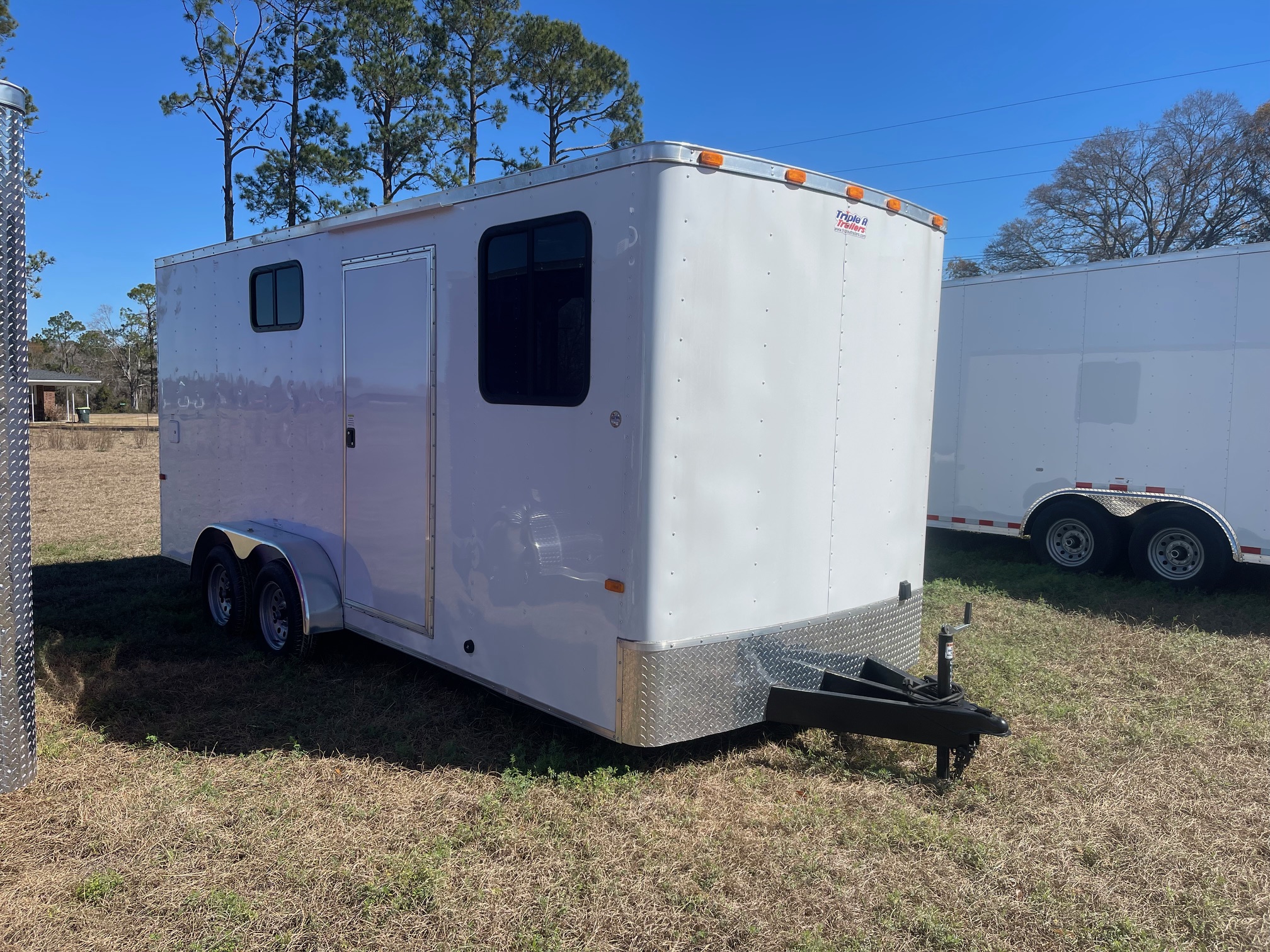

36” RV style side door

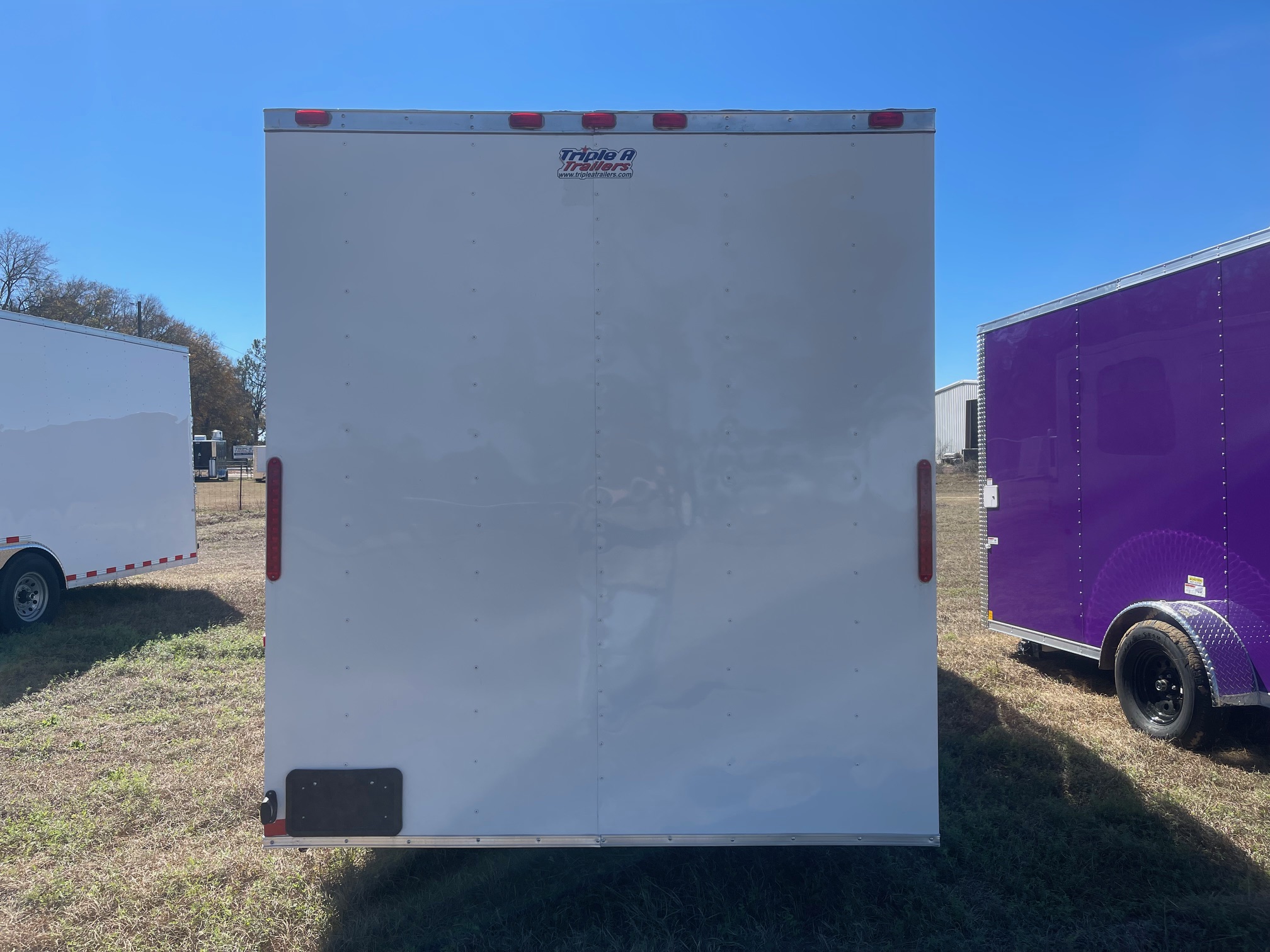

Solid rear wall
(2) 30”x30” tinted glass window
(1) 15”X30” WINDOW
Vinyl flooring
7 foot Interior Height

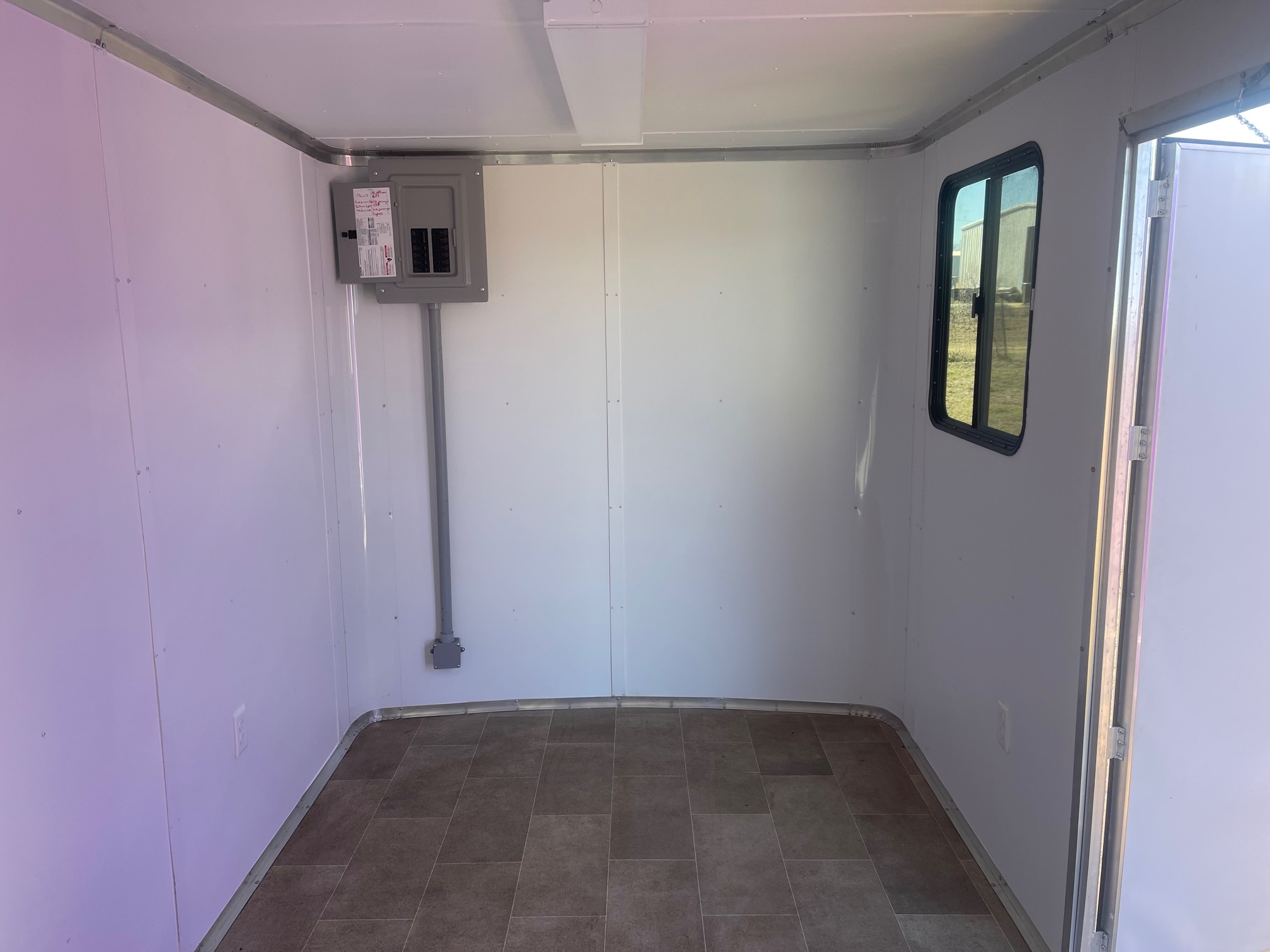

50 Amp Electrical Package
50 Amp Panel Box
(2) 4 foot LED lights
(4) Interior Outlets
(1) GFI Outlet
50 Amp Ship to Shore cord (Lifeline 25 foot)
Non-powered roof vent
A/C Brace and wire
Drip edges over all doors
Diamond Tread front stoneguard
Corrugated Galvanized mesa Roof
All LED lights
(1) 12 volt dome light
Deluxe tag bracket
Sandfoot on tongue jack
13 front section with 5′ bathroom in rear
Bathroom Package Includes:

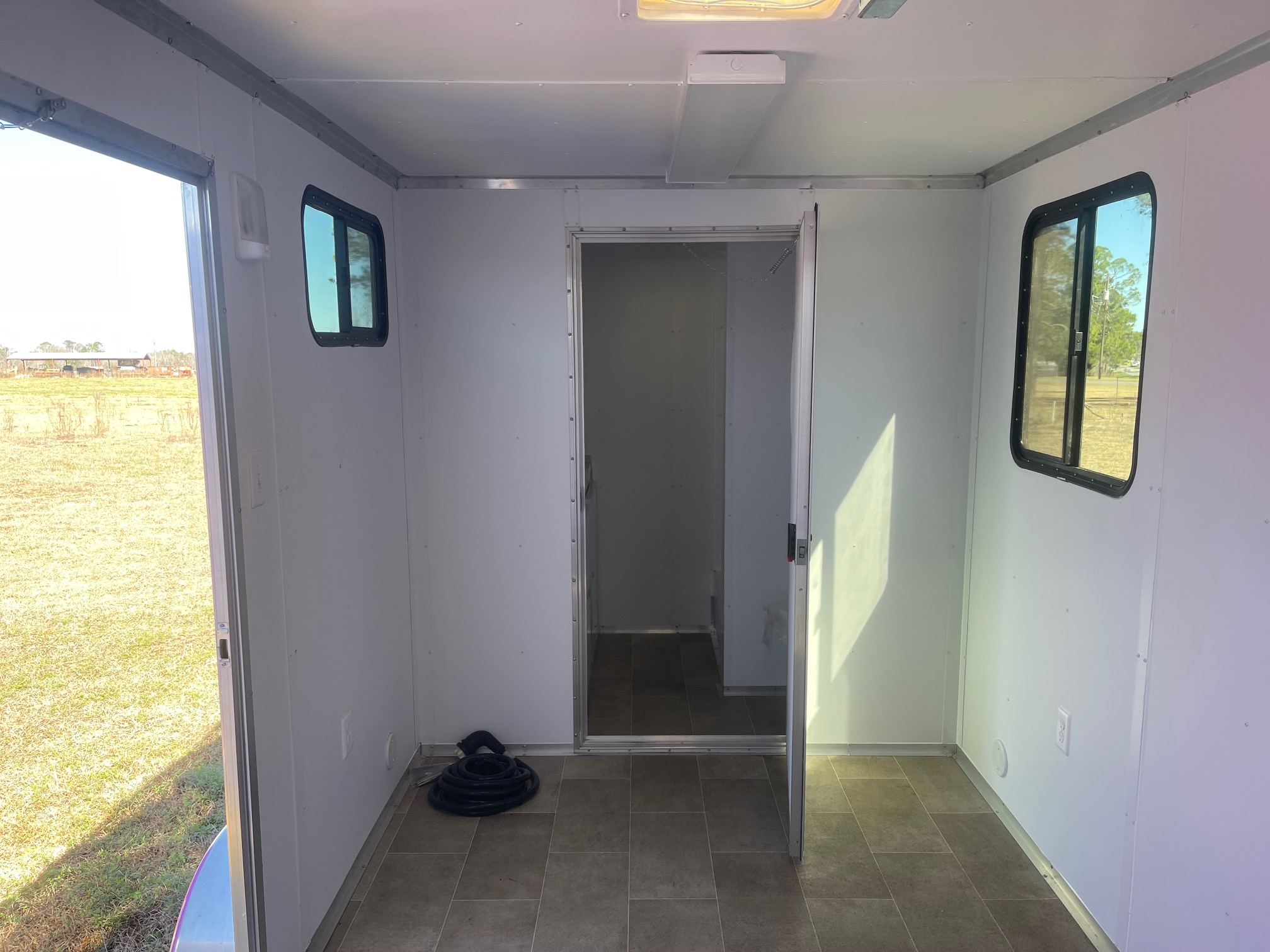

Partition wall with 32” RV Door
30”x30” shower stall

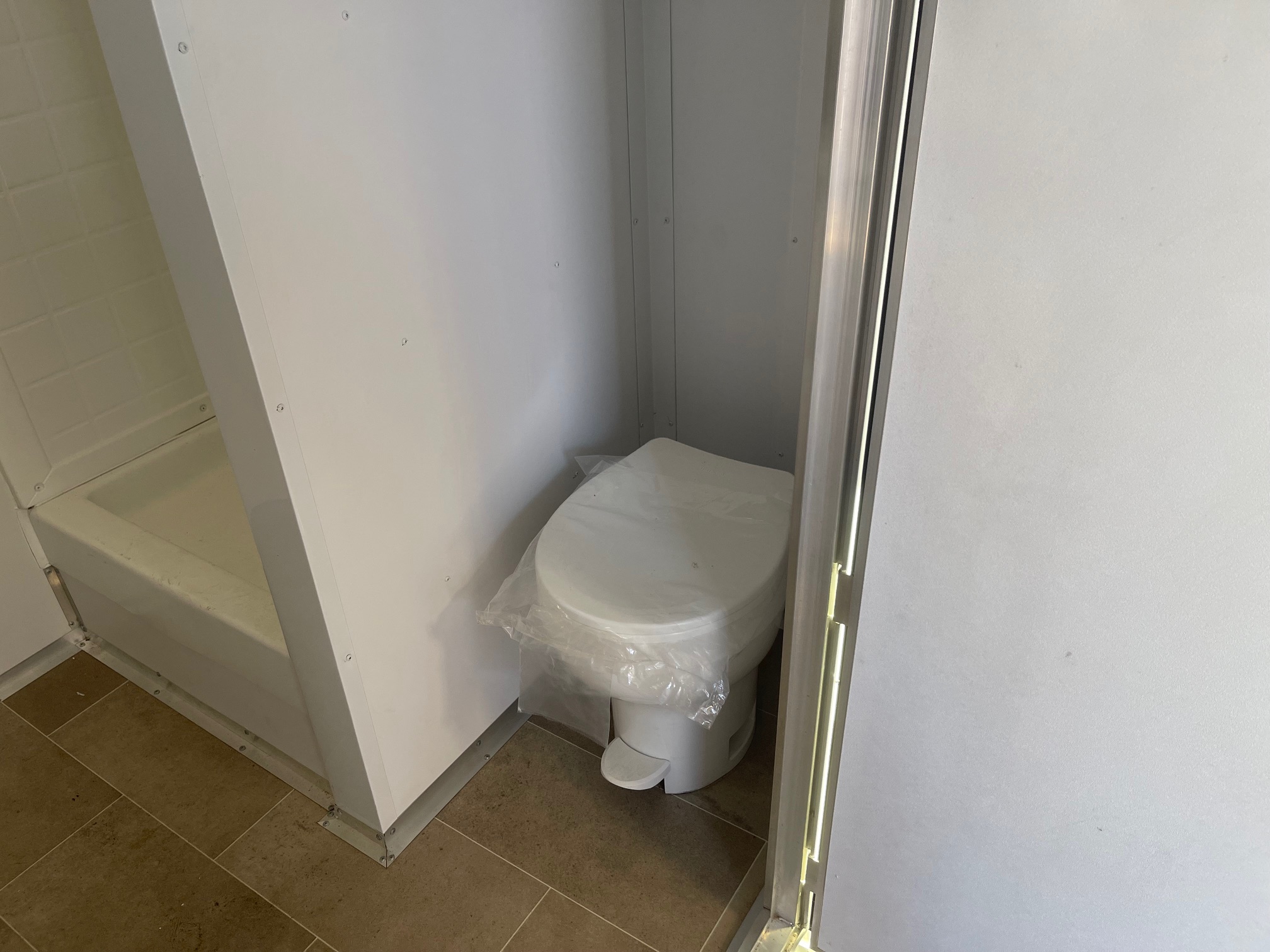

RV toilet with blackwater tank

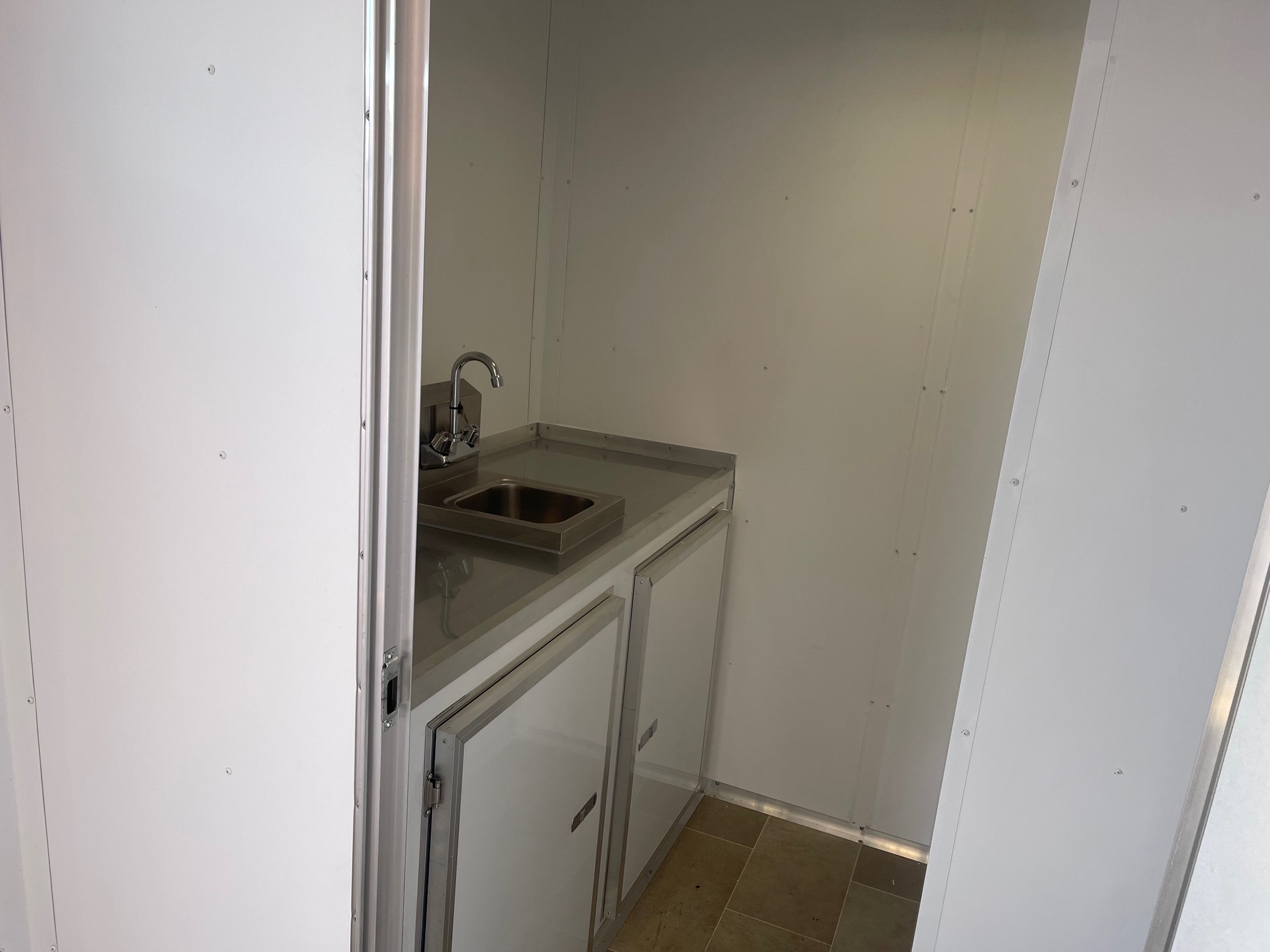

Handwashing’s sink with base cabinet
30 gallon fresh water tank
52 Gallon gray water tank
On demand water pump
6 Gallon water heater
Powered roof vent
