Description

*Pictured in Aluminum* – All current models will be built with Aluminum composite panels 2mm thick with choice of 15 plus colors – Diamond tread front and rear corners – Diamond tread fenders – 3” Bottom trim!

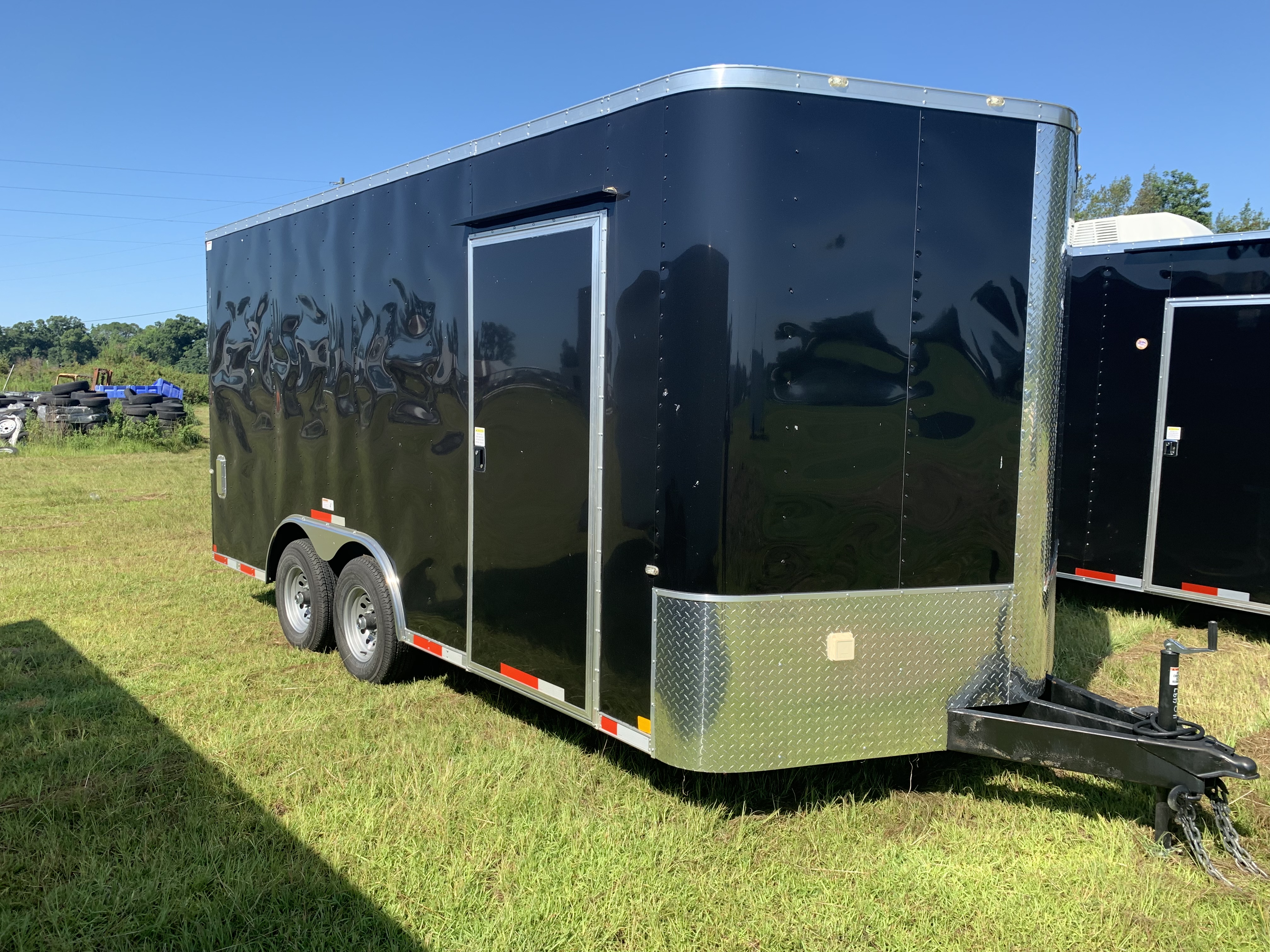

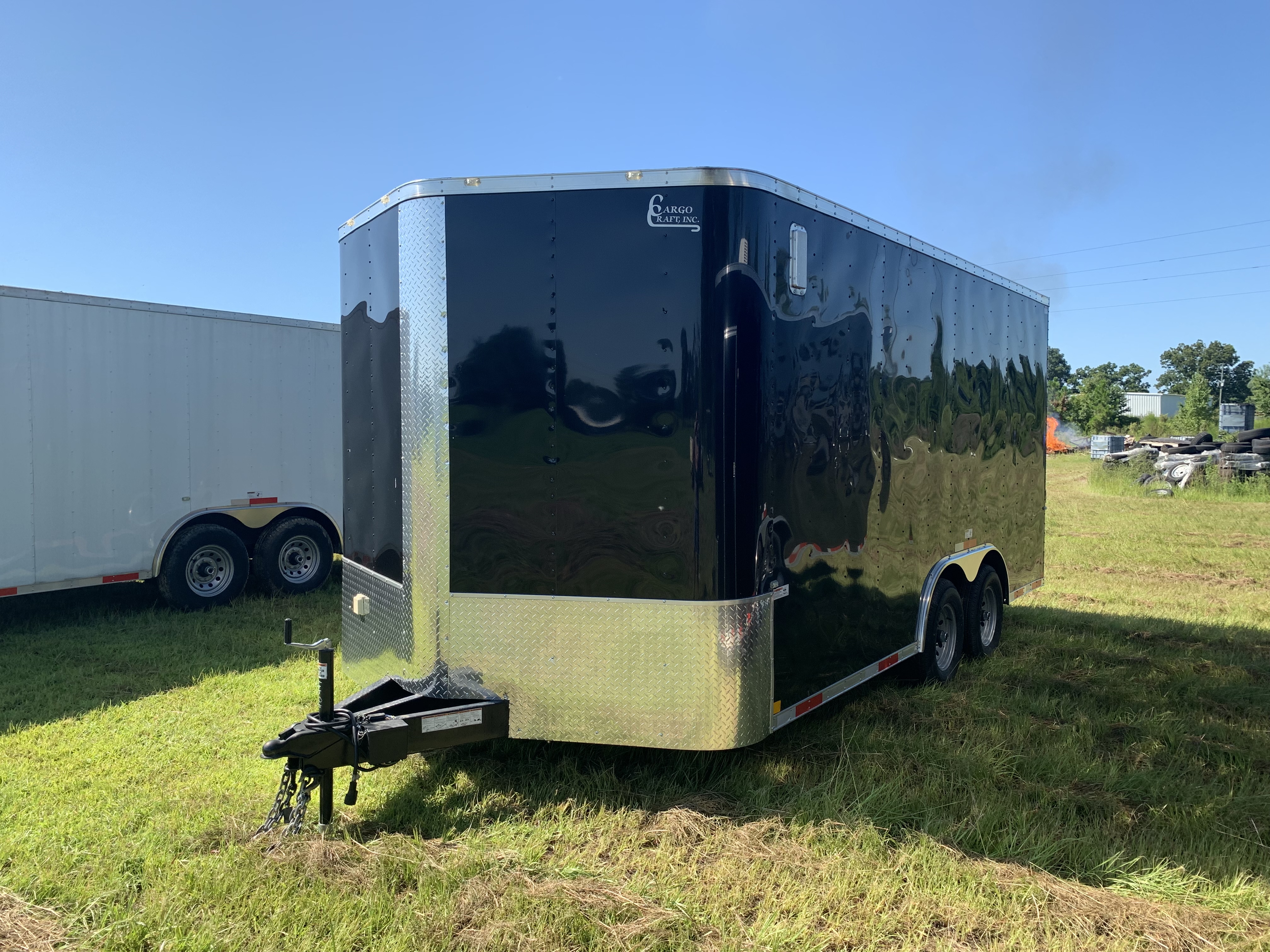

8.5×16 Tandem Axle Auto Carrier

Included Features:

2 Foot rounded V-nose in addition to the 16 foot box
2 x 6 Tubular Main frame
Triple tube tongue
12″ on center floor cross members
Tubular 16″ on center walls
Tubular 16″ on center ceiling
5200# Dropped Leaf Spring Axles
Electric Brakes (both axles)

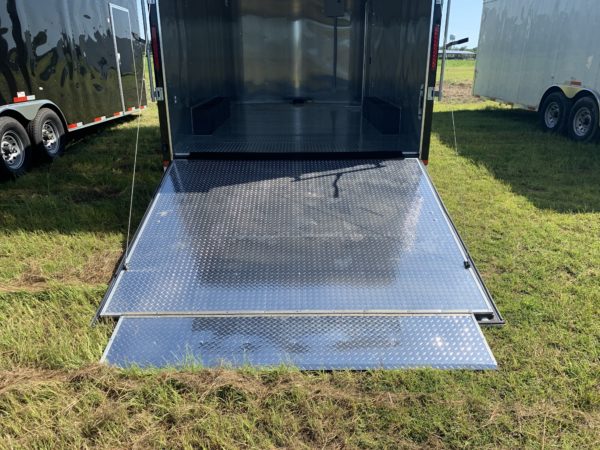

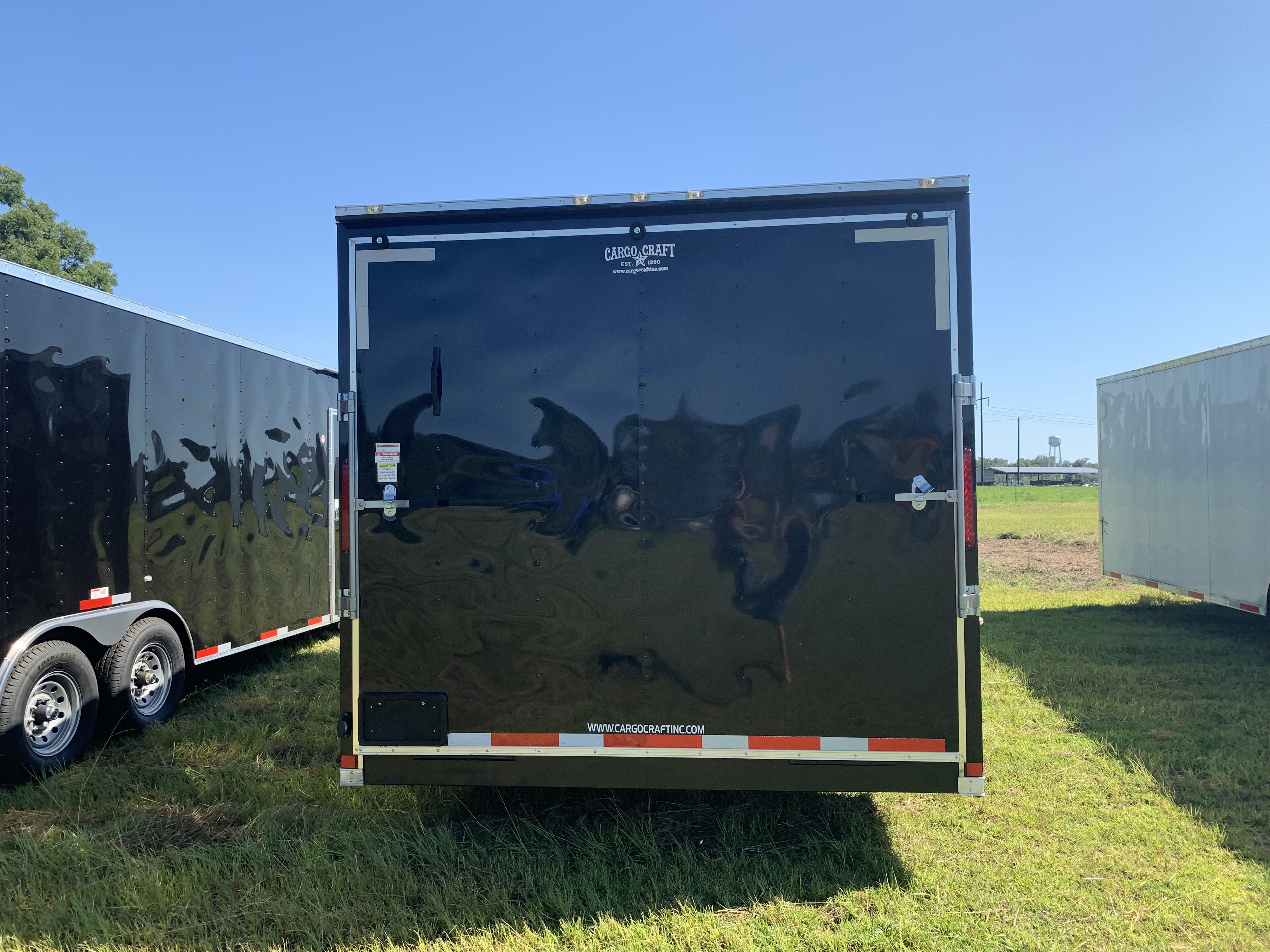

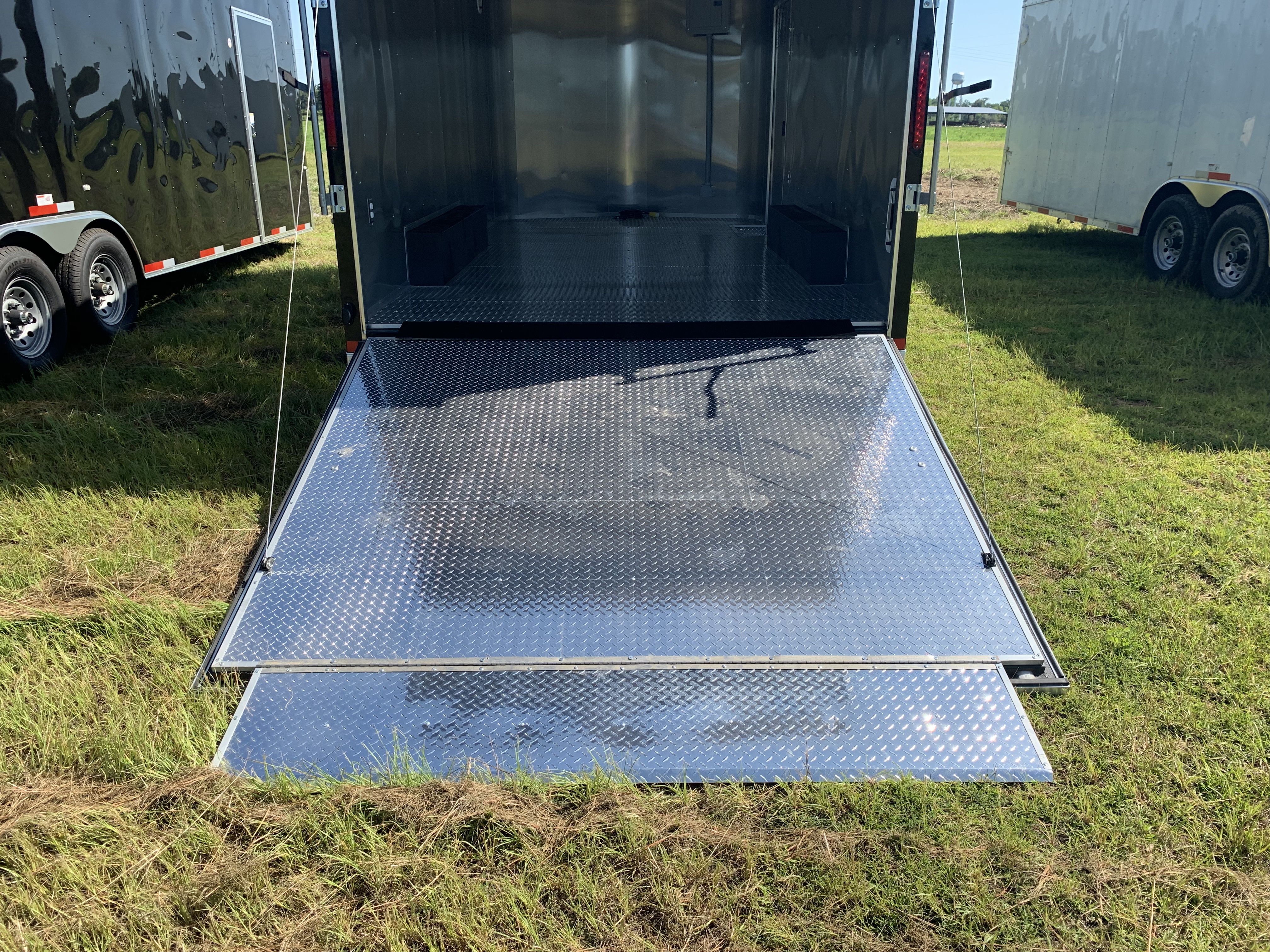

Rear 4500 lb Ramp Door with 16″ Flap Extension
Black Exterior Aluminum Composite Panels 2mm
Diamond tread front and rear corners
Diamond tread fenders
3” Bottom trim
Screwed Exterior
3/4″ plywood floor
7/16″ OSB walls and ceiling

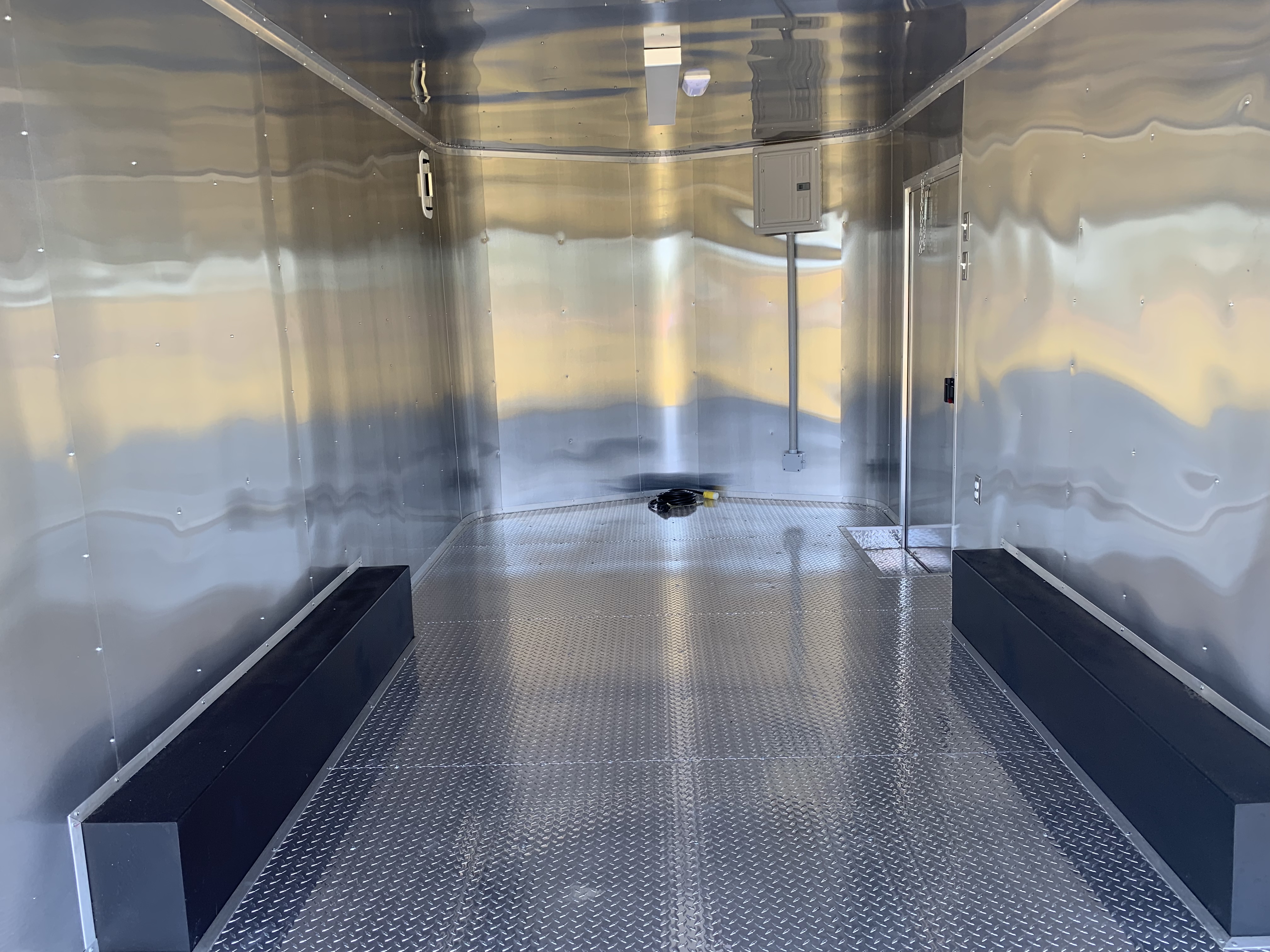

Mill finish aluminum interior walls and ceiling
Insulated walls and ceiling
15″ Steel silver mod wheels
225/75/15 Radial Tires
7 foot Interior height
All LED Lights
Alloy aluminum Side walls Vents
2 5/16th Front Coupler
36″ RV style side door
Built in step at side door
Diamond tread aluminum Floor, Ramp, and Flap extension
(2) 12 volt dome lights wired to a wall switch
30 Amp Electrical Package
(2) Four Foot LED Lights
(2) Interior 110 Volt Outlets
30 Amp Ship To Shore Cord
A/C Brace and wire
Corrugated Galvanized Mesa Roof
Black Undercoating
Drip edge over all doors
Deluxe tag bracket with light
Sandfoot on tongue jack
