Description

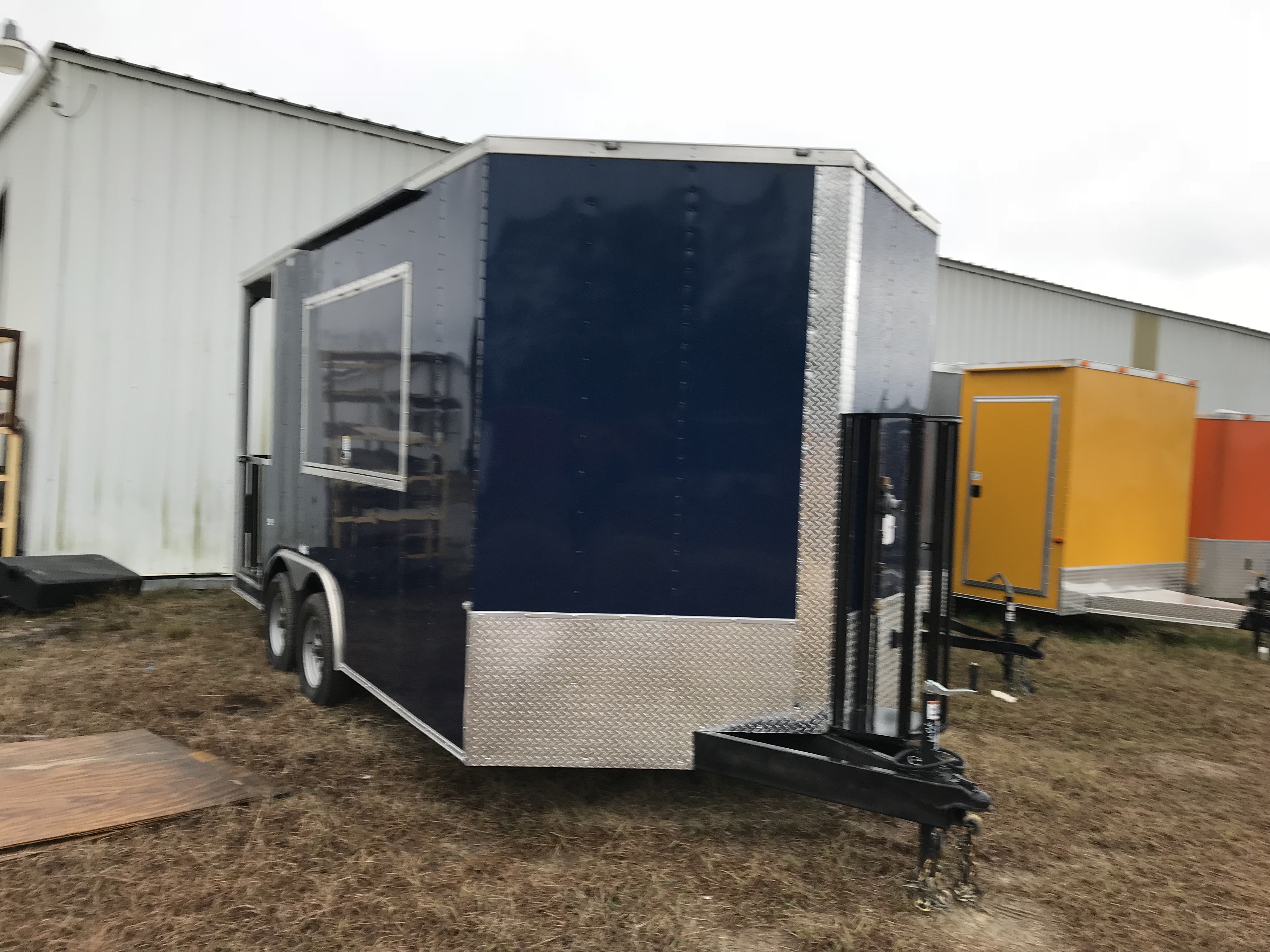

This trailer is 8.5×16 and has a 12 foot box plus a 2 foot V-nose with a 4 foot porch with Handrails.

– 2 Foot V-nose in additional to 12 foot box

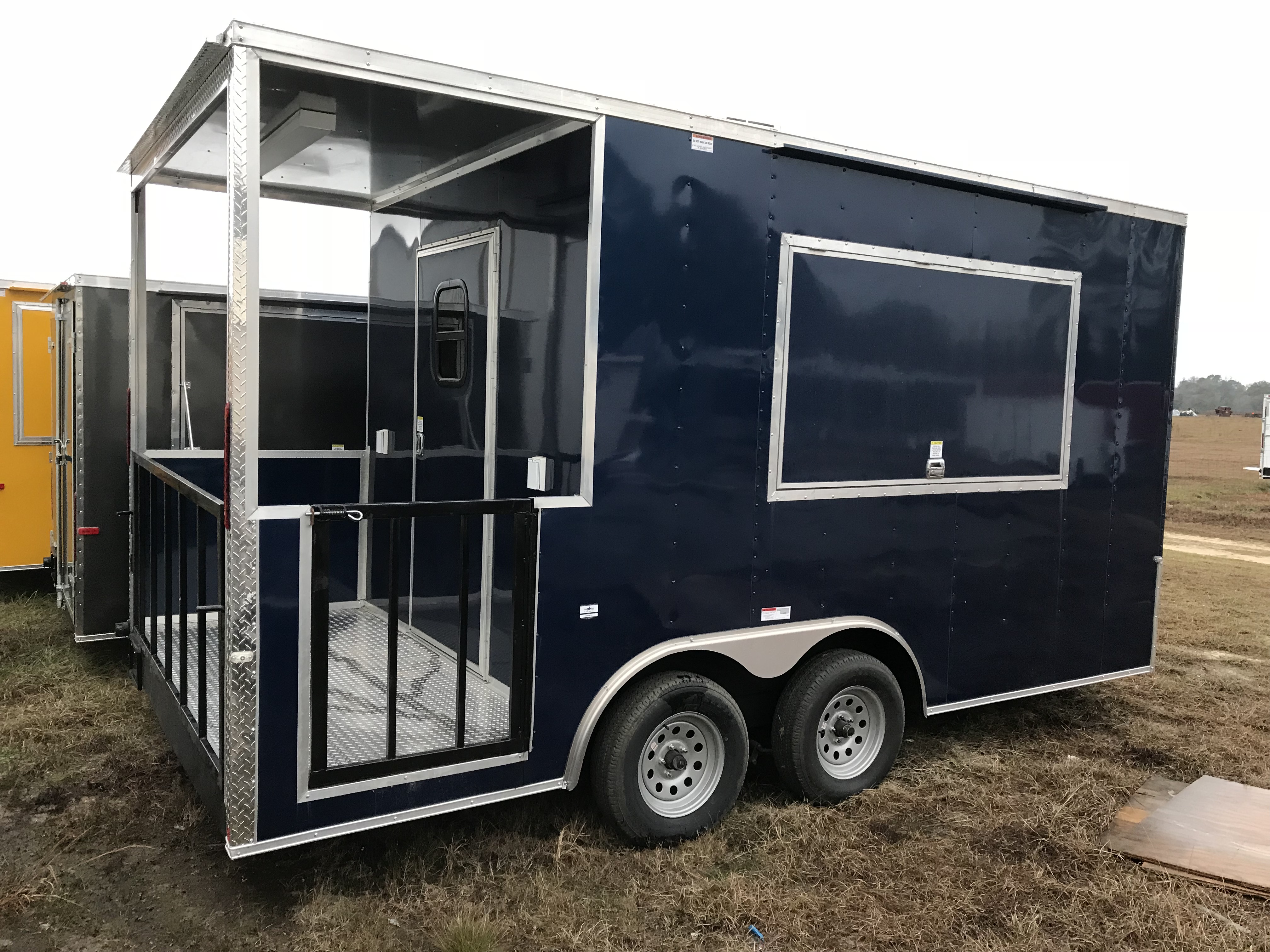

– Porch Trailer 12 Foot enclosed and 4 foot Porch

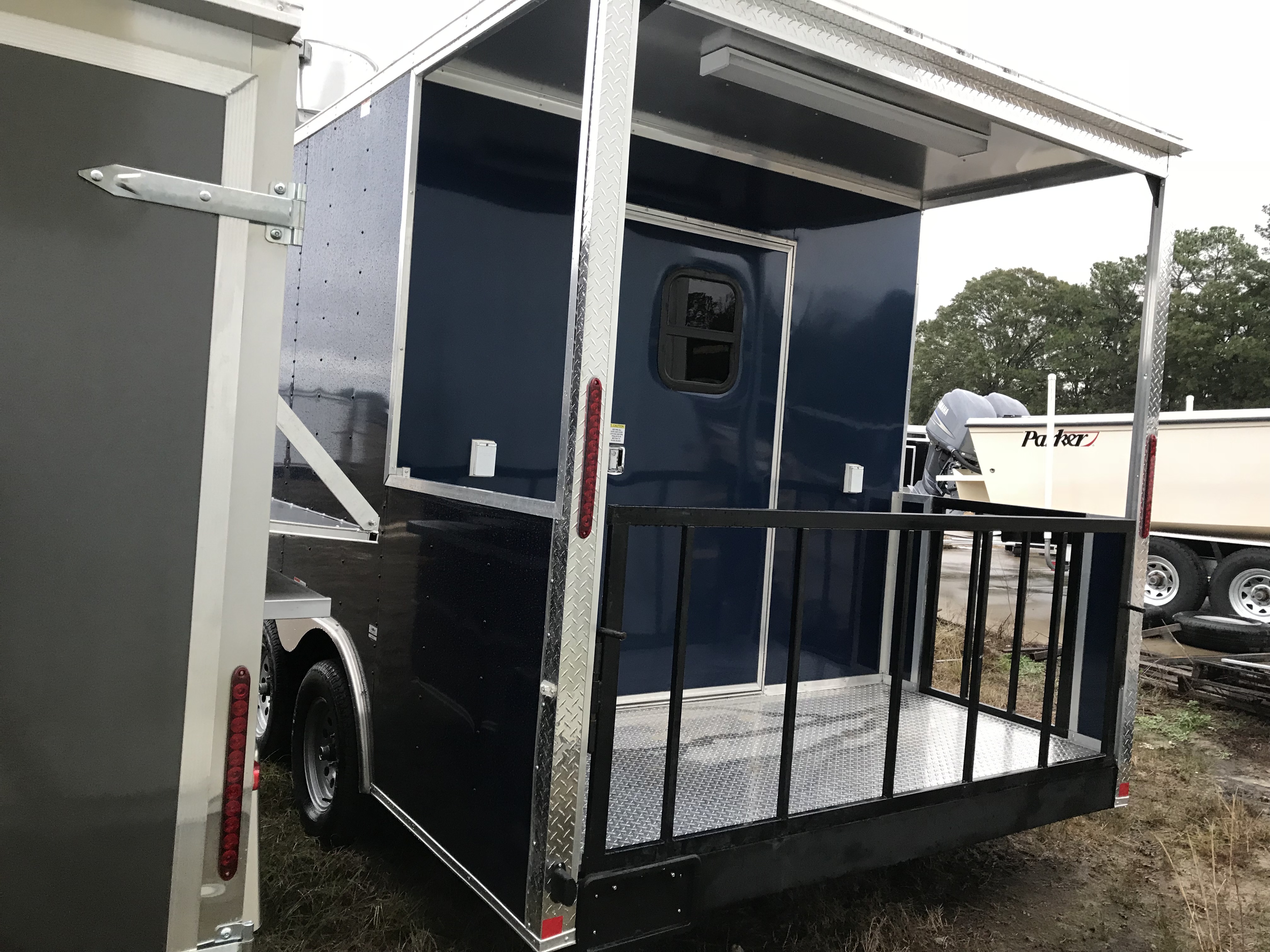

– Handrails around porch w/ 30″ opening on each side
– Removable Handrail on the back of the porch
– Triple Tube Tongue
– 2×6 Tubular Main frame (3/16th gauge steel)
– 16″ on center floor cross members
– Tubular 16″ on center wall studs
– Tubular 16″ on center ceiling cross members
– 3500# Dropped Leaf Spring Axles
– Electric Brakes (both axles)
– Easy Lube Hubs
– Electric Brake Wiring ran inside steel tubing main frame
– Indigo Blue Exterior Aluminum .030 gauge
– Screwed Exterior
– Diamond Tread front Stone guard
– Smooth aluminum Fenders
– 3/4″ Plywood Floor
– 7/16″ OSB Walls and ceiling
– Mil Finish Aluminum interior Walls and Ceiling
– Mil Finish Aluminum Ceiling on the porch
– Styrofoam Insulated Walls and Ceiling – Enclosed part of trailer
-Rubber Tread Plate Floor on enclosed part of the trailer

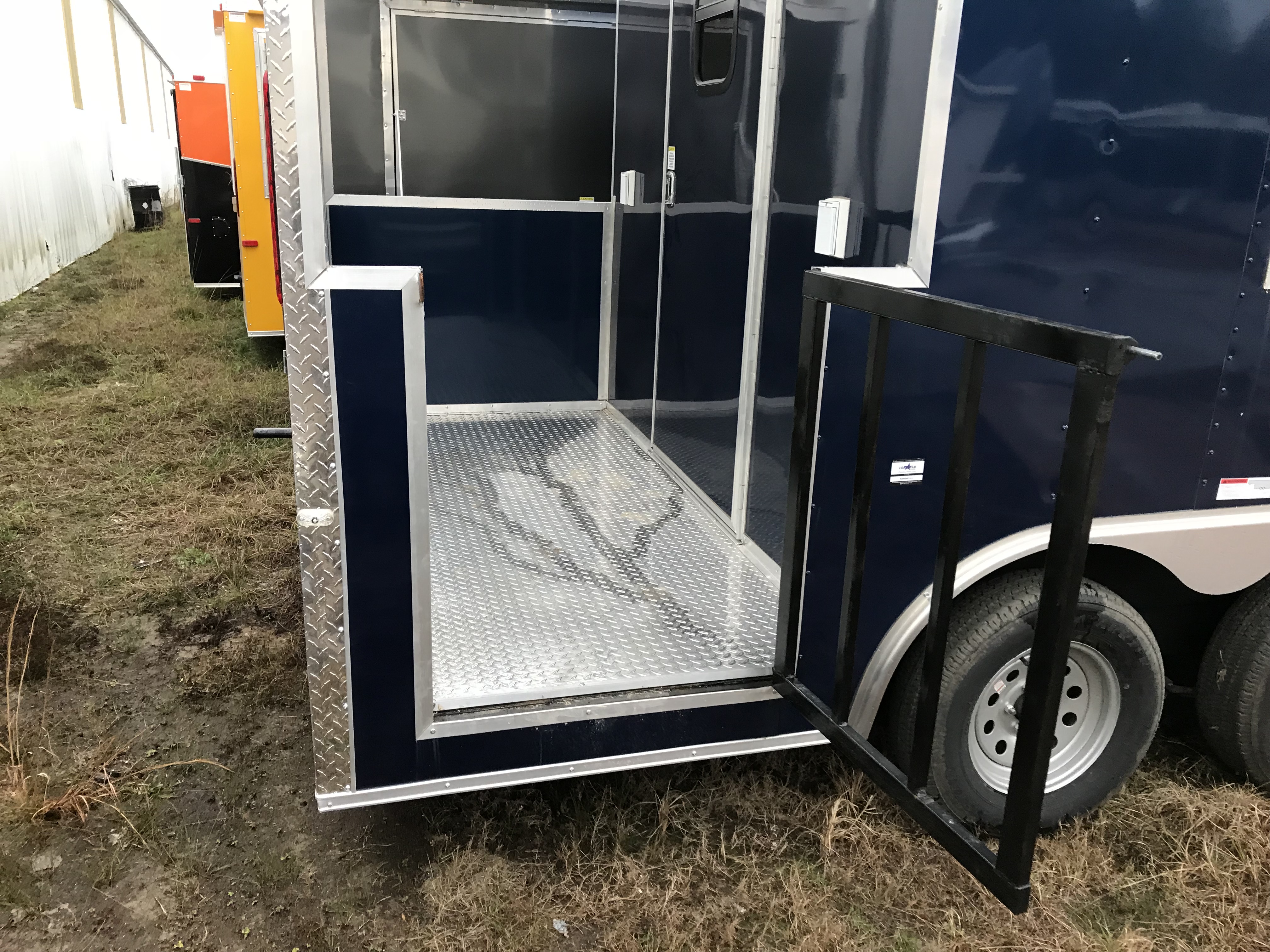

– Heavy Gauge .063 Diamond Tread flooring on the 4 foot porch
– Diamond Tread rear corner post and top header
– 15″ silver mod Wheels
– 205/75/15 Radial Tires
– 7 foot Interior Height

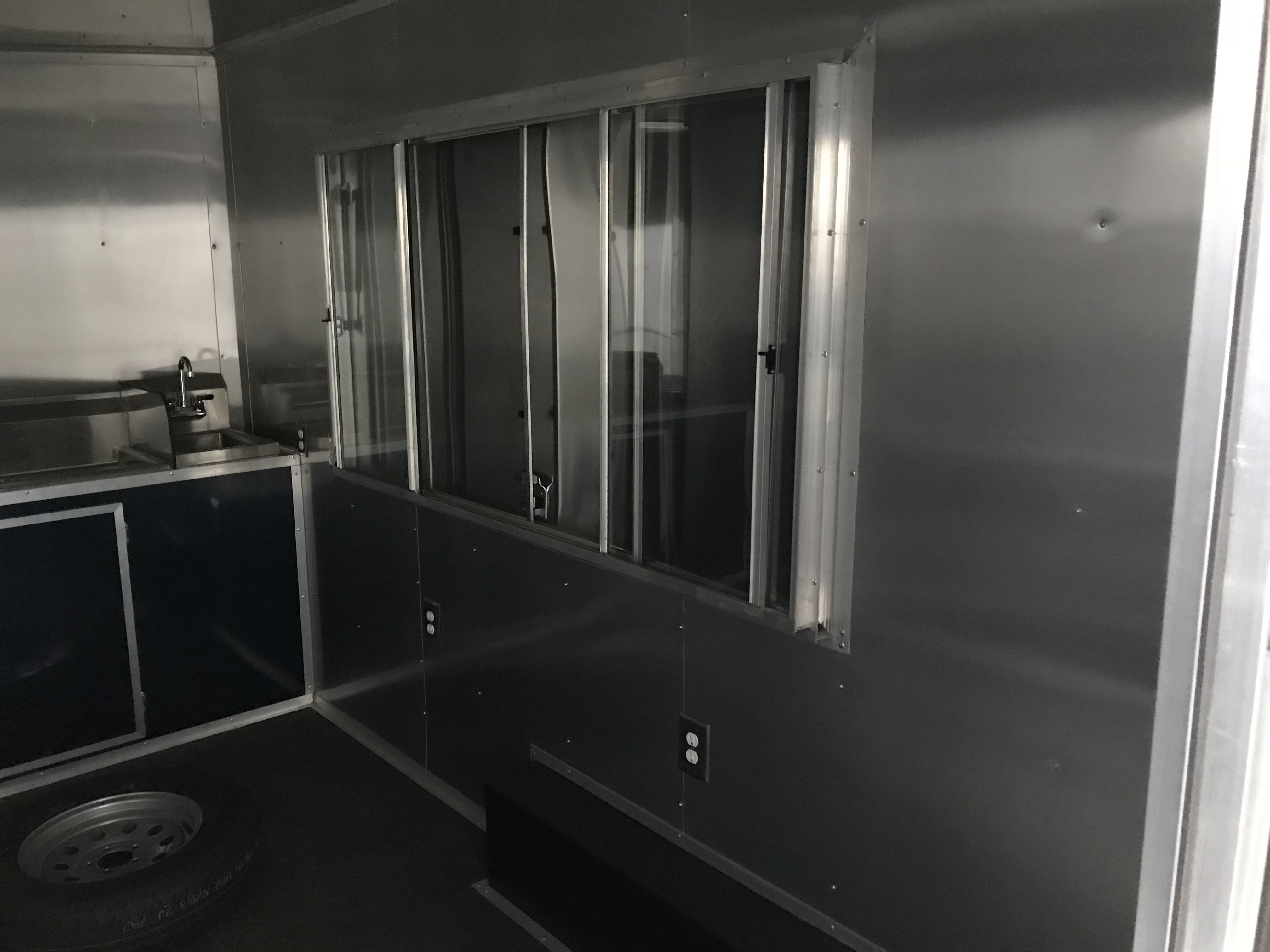

– (1) 40×74″ Concession window with sliding glass windows and screens
– 50 Amp Electrical Package – (7) interior outlets, (2) GFI Outlets on the porch, (3) Fluorescent Lights , 50 Amp Panel Box
– 50 Amp Ship to Shore Cord (25 foot lifeline to power the trailer)
– 13,500btu A/C unit with heat strip

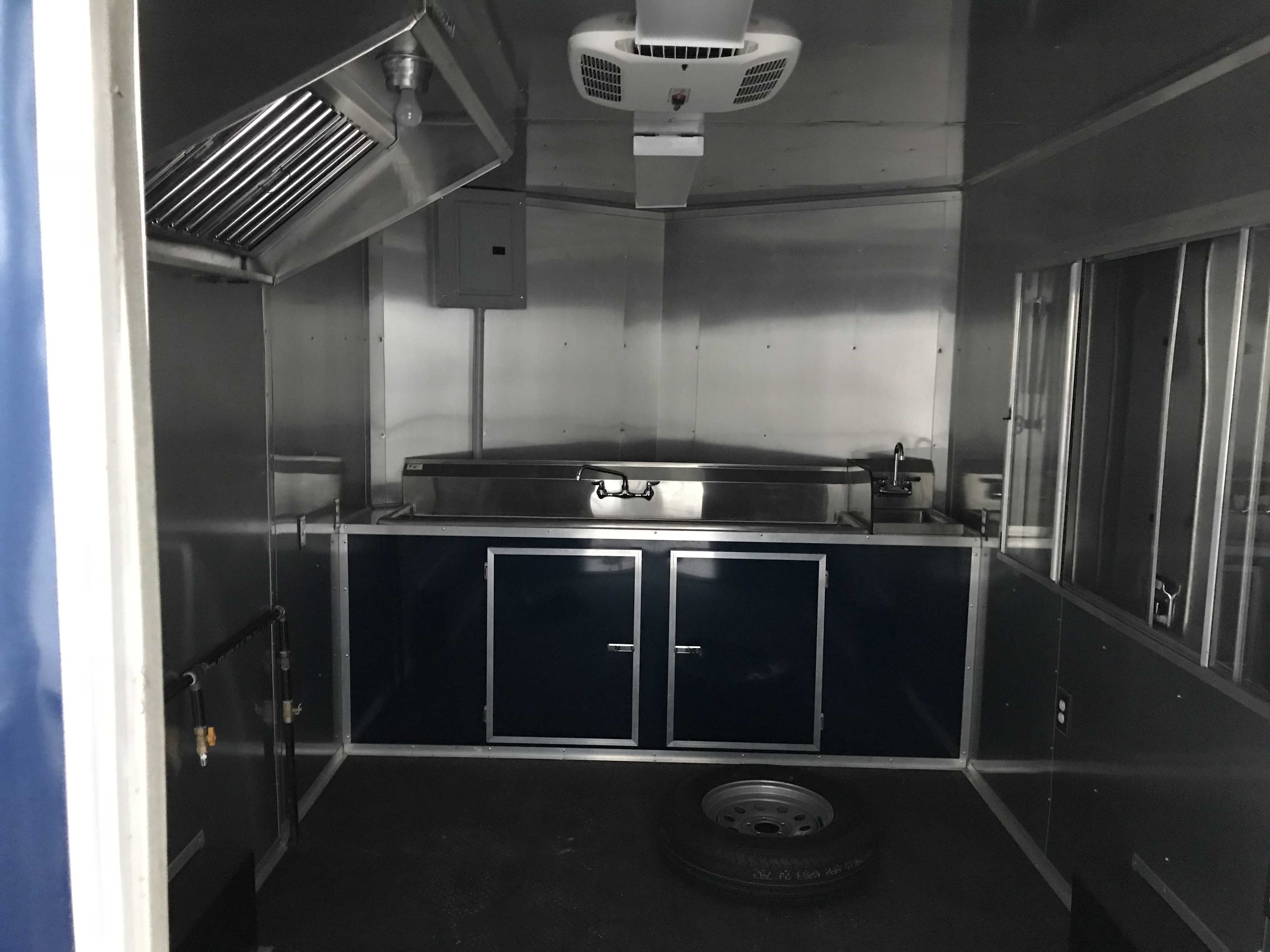

– Hot & Cold Water Pkg: Hand wash sink, 3 compartment sinks, 6 gallon hot water heater, 30 gallon fresh water tank, 52 gallon grey water tank, On demand water pump. Sinks will be set in base cabinets w/ (2) cabinet doors
– Rear fold Down Stabilizer Jacks
– (1) 4′ stainless steel Hood Range
– All LED Lights
– 2 5/16th Front Coupler
– (1) 12 volt dome lights

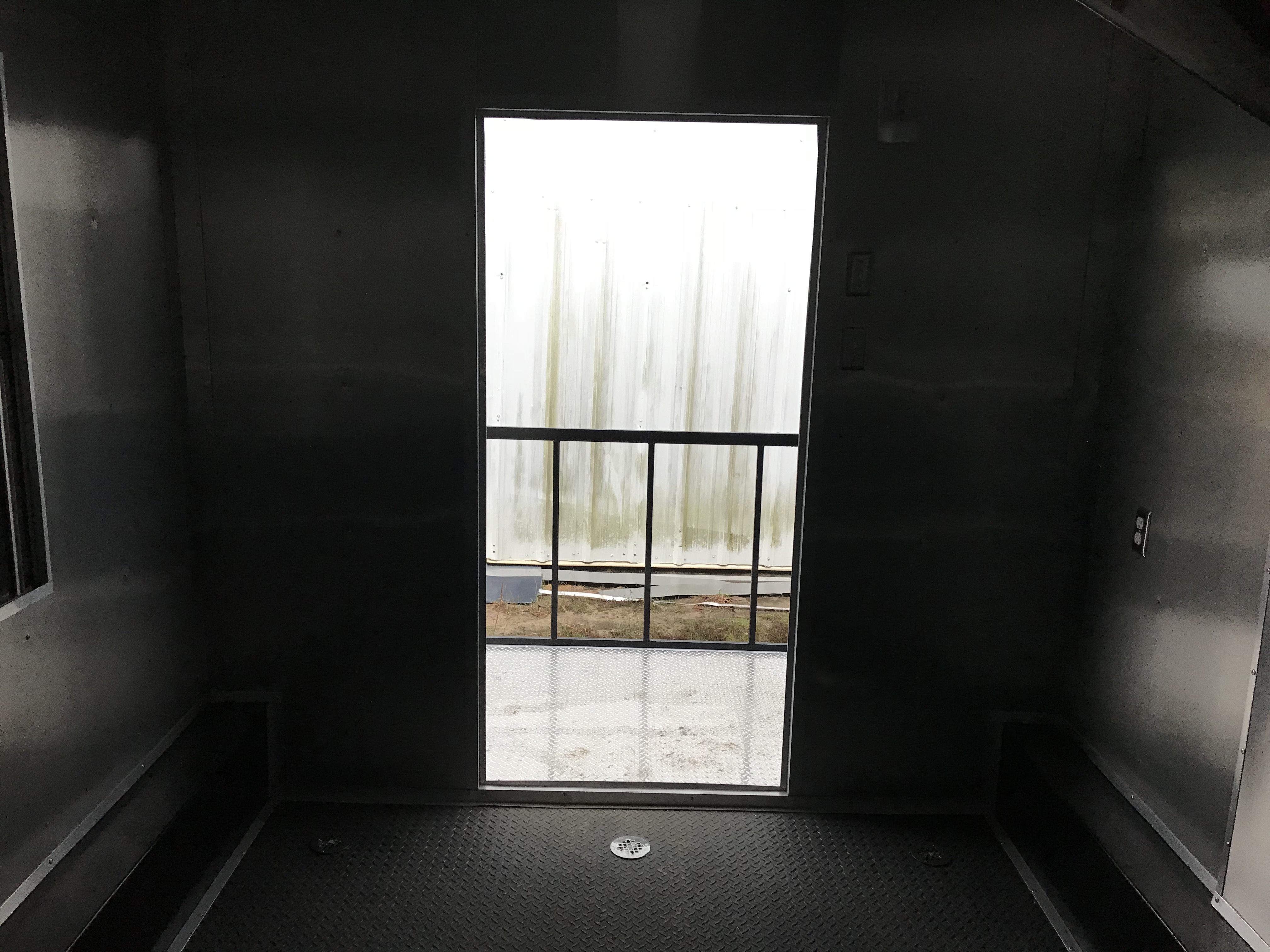

– (1) 36″ R/V Style Side Door – Located on the porch
– (1) 15×18″ Tinted sliding glass window with screen – located in 36” door
– (1) 100 lb propane tank

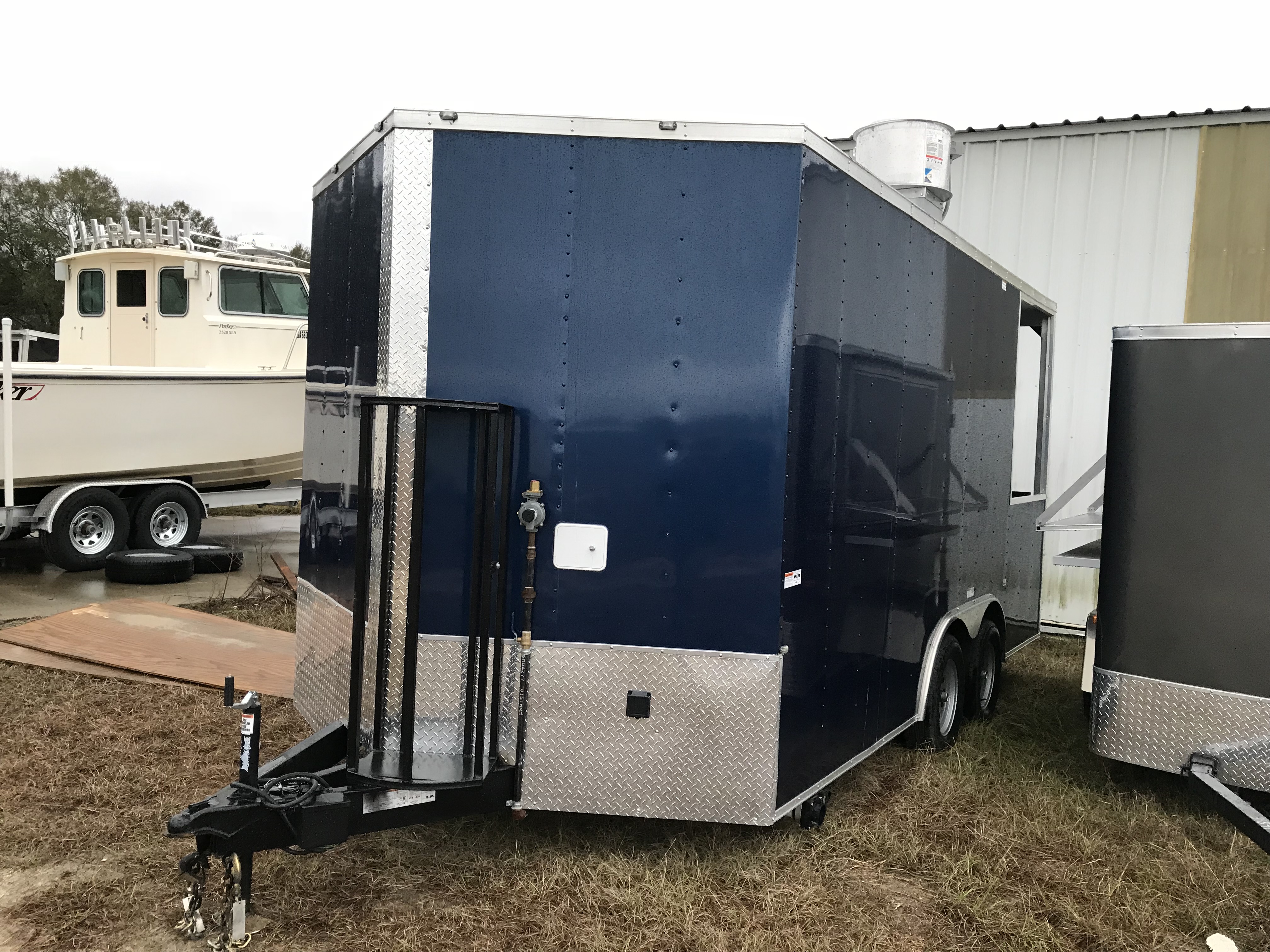

– (1) 100 lb propane cage mounted on front of passenger side
– (1) 450,000 BTU regulator

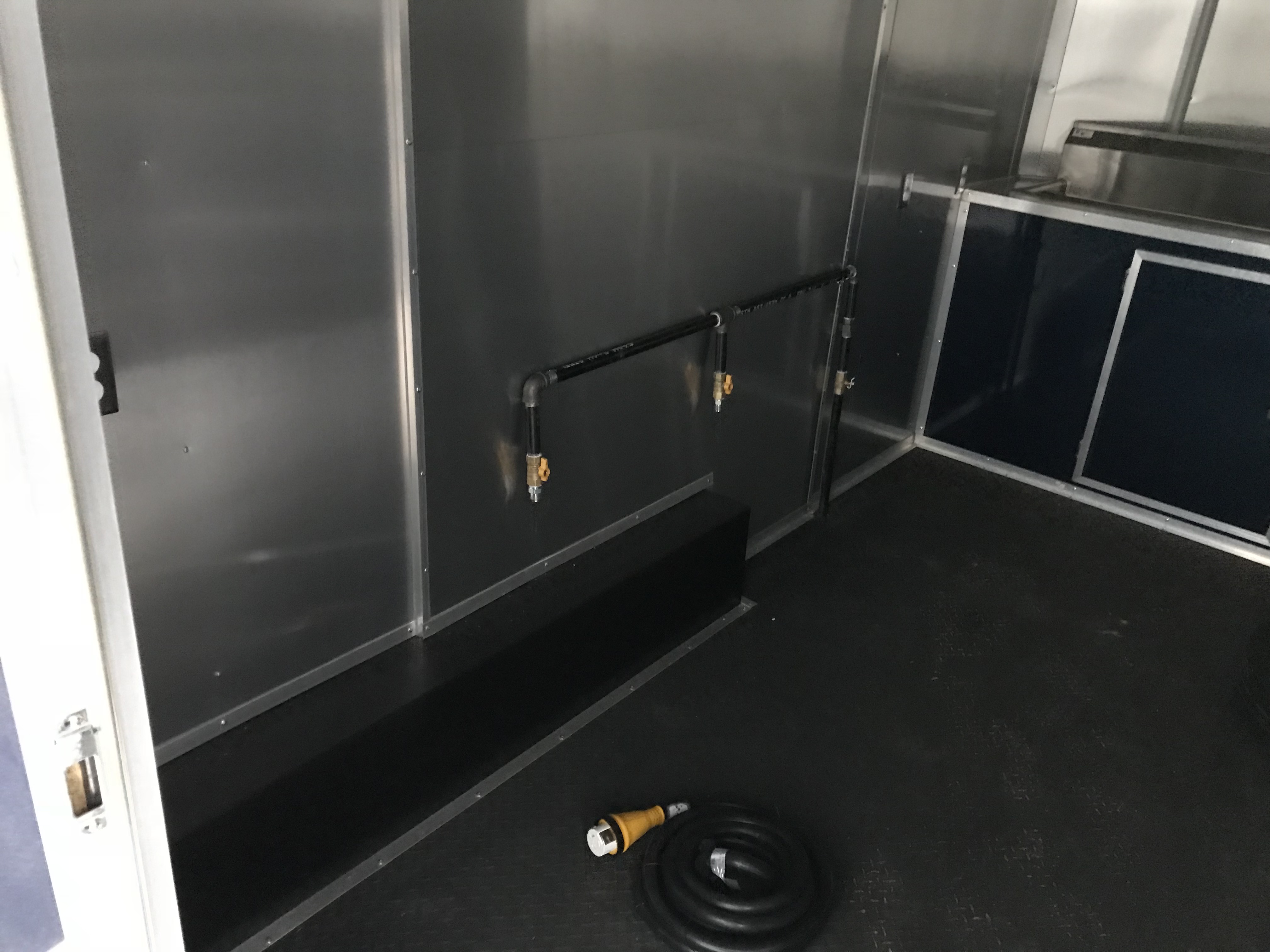

– (2) propane gas lines ran under hood range
– (1) propane gas line ran to porch
– Dust shield
– Solid front wall construction
– Corrugated galvanized Mesa style roof
– Asphalt Undercoating
– Drip Edges Over All Doors
– Sand foot
– Deluxe license plate holder
– Spare Tire Included 205/75/15 Silver Mod Radial Tire
