Description

8.5′ x 20′ Tandem Axle Concession Trailer

Included Features:

• 2×6 Steel Tubular main frame (No I-Beam)
• Triple tube Tongue
• Extended Tongue
• 16″ on center floor cross members
• 16″ on center wall studs (tubular)
• 16″ on center ceiling (tubular)
• 3/4″ Plywood Floor
• 7/16″ OSB walls and ceiling
• 7 foot 6 inch Interior Height
• Aluminum interior Walls and Ceiling – Mil finish
• Styrofoam Insulated walls and ceiling
• Flat Nose Design
• Tandem 5200 lb dropped leaf spring axles
• Electric brakes on both axles
• Easy Lube Hub
• Electric brake wiring ran inside the tubular main frame
• 15″ Silver mod Wheels
• 225/75/15 Radial Tires
• Semi Screwless exterior
• Victory Red exterior aluminum .030 gauge

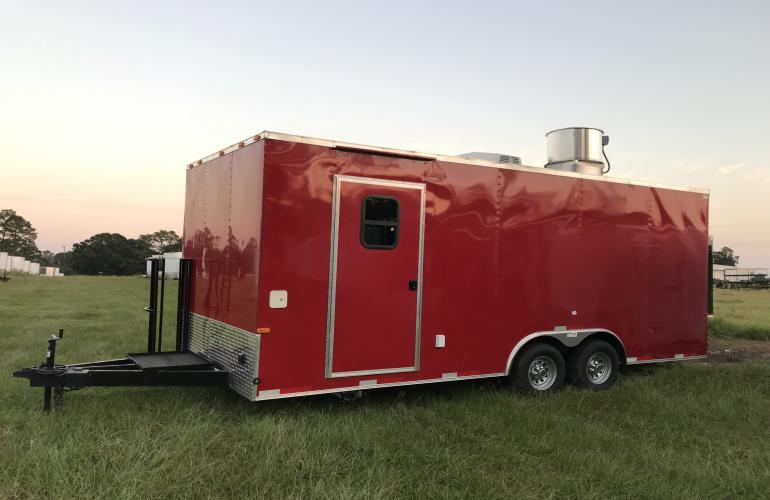

• 36″ RV door with screen door
• Tinted 15′ x 18″ Window mounted in a 36″ side door

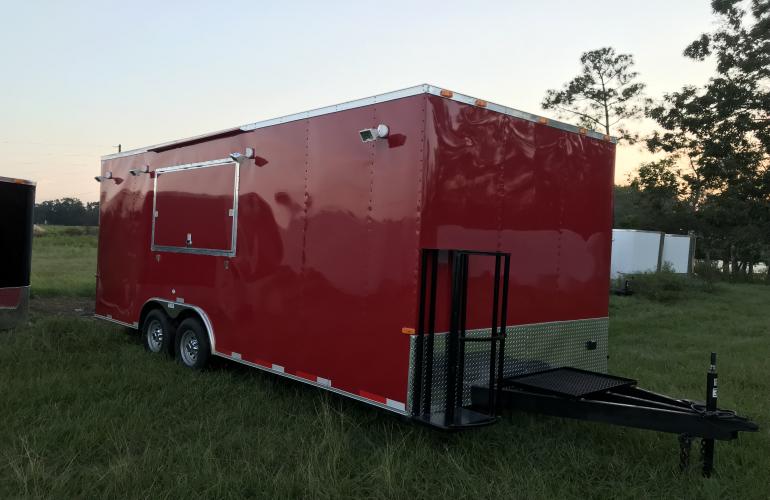

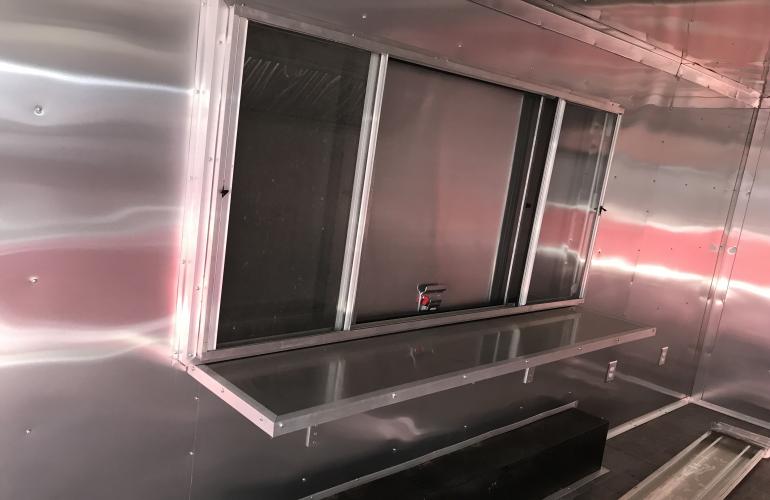

• One 40″ x 74″ concession window with sliding glass windows and screens

• One Aluminum Exterior removable serving shelf – Under concession window

• Interior countertop under the concession window
• Vinyl interior flooring (marble style
• Stabilizer Jacks (rear)

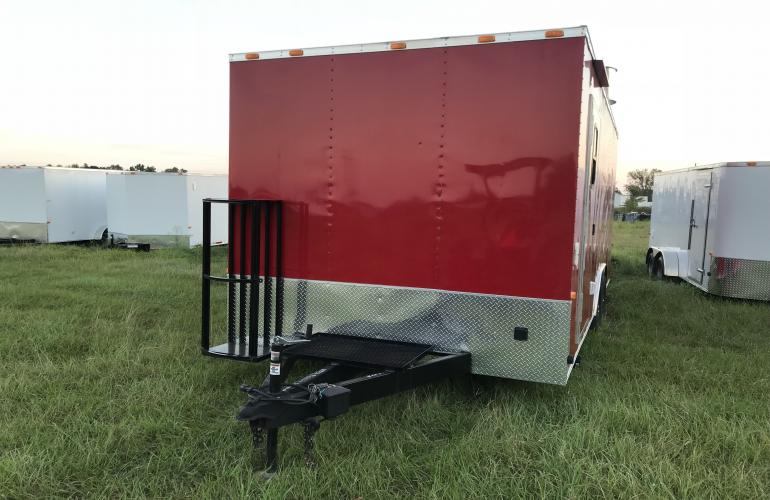

• One 100 lb Propane Cage on the hitch of the trailer

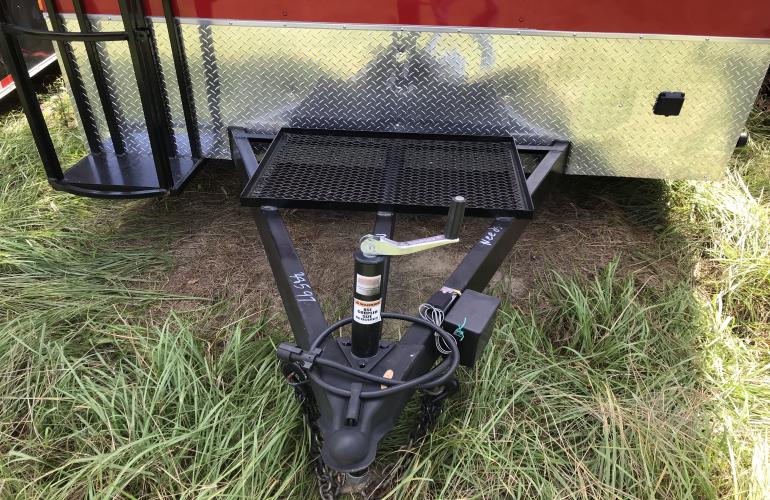

• Generator platform with mesh bottom
• Asphalt Undercoating
• Drip edges over all doors

• 24″ Diamond Tread front stone guard
• Smooth Aluminum fenders
• Corrugated Galvanized Mesa Roof
• LED Tail lights
• Reinforced Front Wall Construction
• One 12 volt dome light
• Dust Resistant Construction
• Deluxe tag bracket
• Sandfoot on tongue jack

 Electrical

• Four, 4 foot fluorescent lights
• (6) Interior Outlets
• (1) Outside GFI outlet
• 50 Amp Panel Box
• 50 Amp Ship to Shore cord (Lifeline 25 foot)
• A/C unit with heat strip 13,500 btu

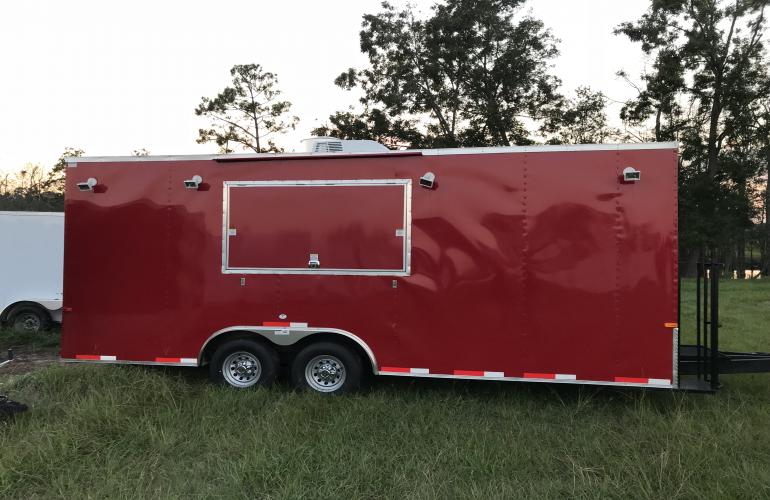

• (4) exterior 150 watt flood lights – Around the top outside of the trailer

Culinary Appointments

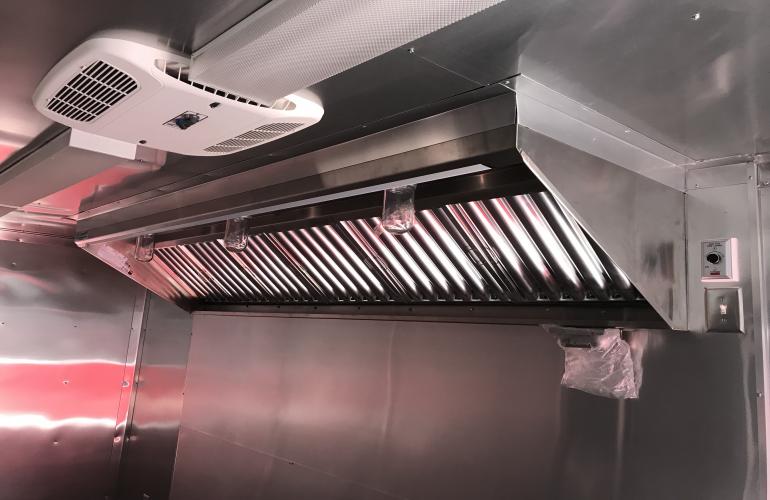

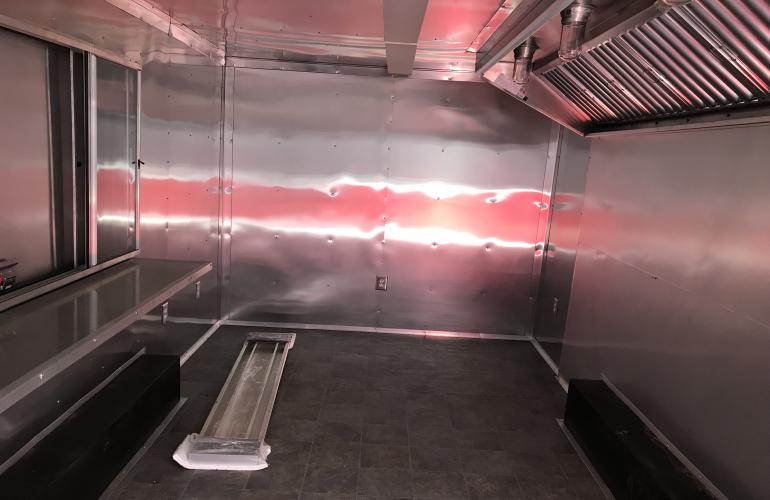

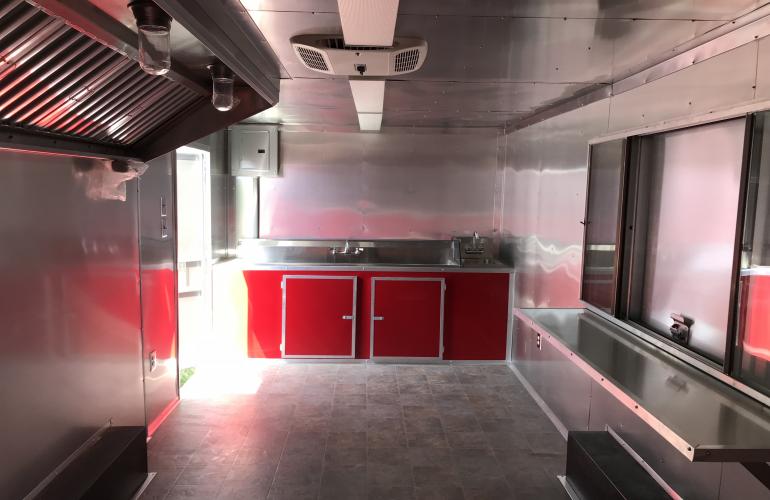

• 9 Foot Hood w/ Variable Speed Control and built in lights

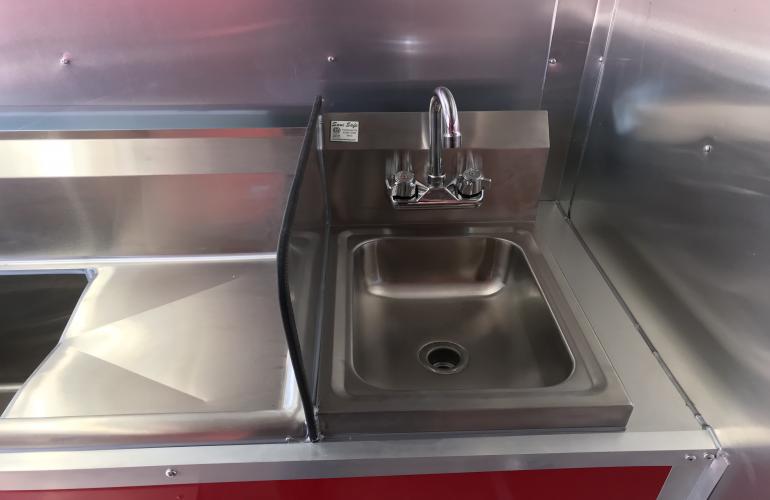

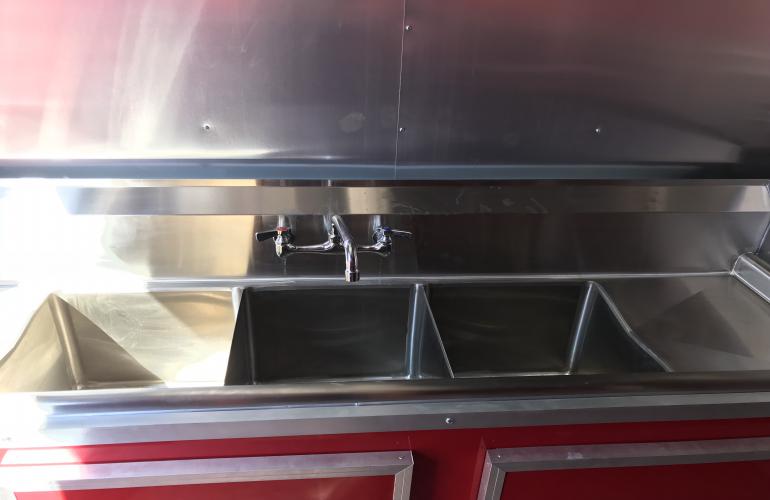

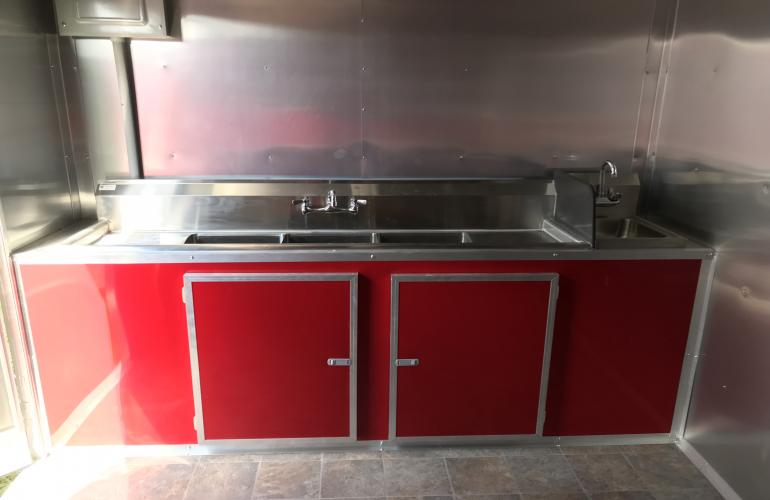

• Three Compartment Sinks with splash guard and drain boards
• Sinks set inside base cabinets with
• Hot water Heater (6 gallon)
• 30 Gallon Fresh Water Tanks
• 52 Gallon Grey Water Tanks
• On Demand Water Pump
