Description

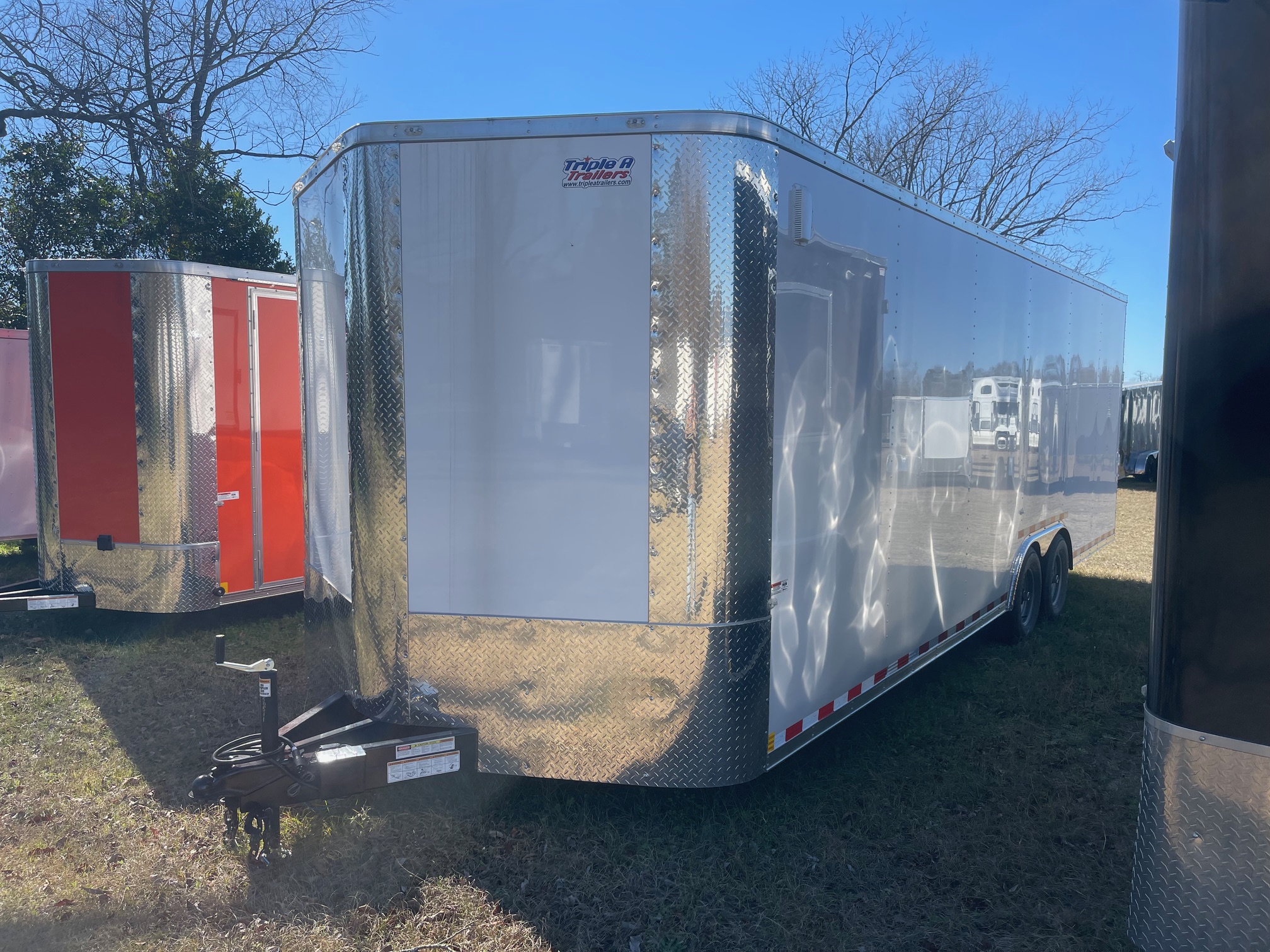

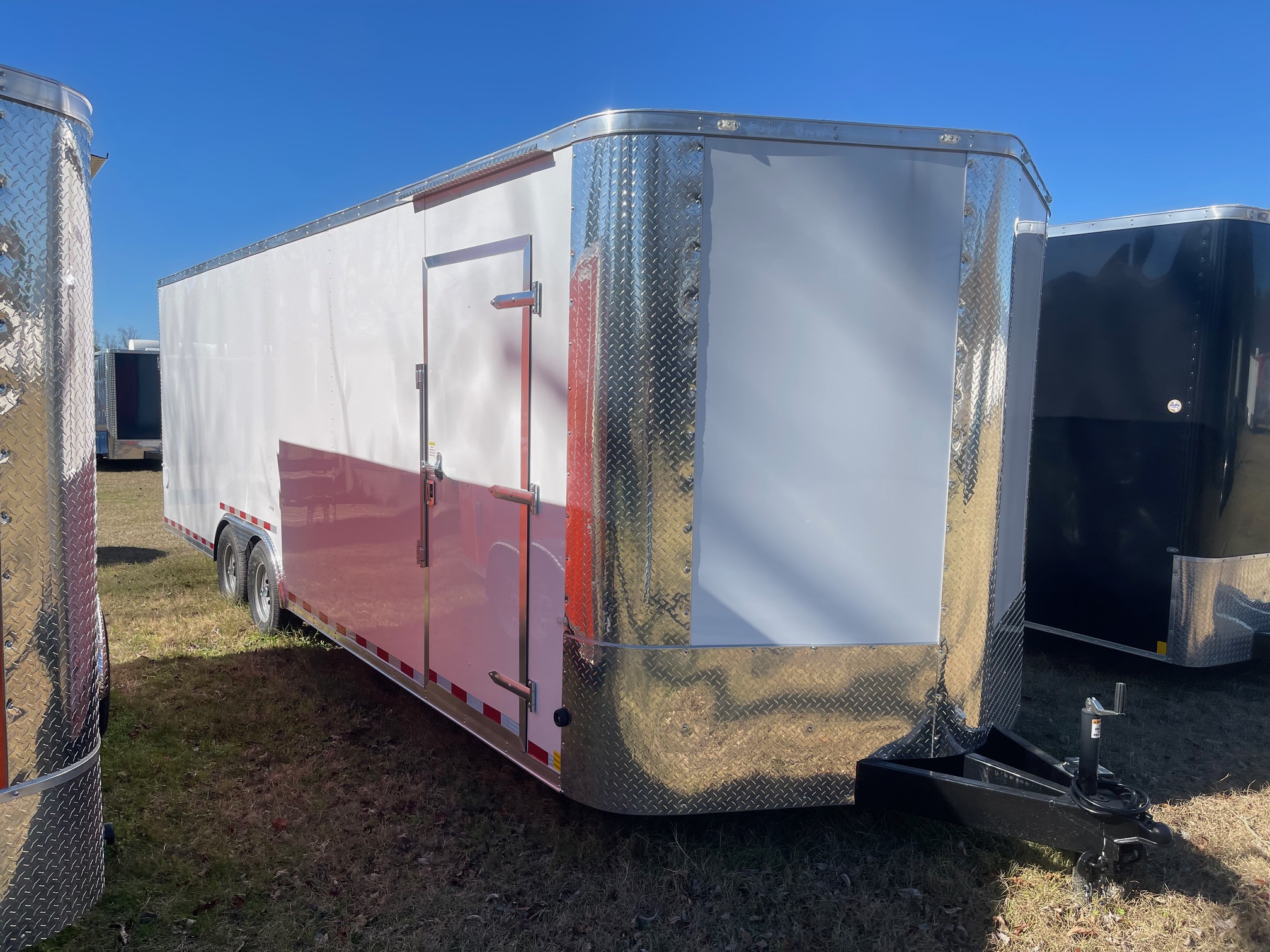

8.5×24 Tandem Axle Auto Carrier
Included Features:
2 Foot Rounded V-nose in addition to 24 foot box
2×6 Tubular Main frame (No I-Beam)
Triple tube tongue
16″ on center floor cross members – 2×6 Tubing
Tubular 16″ on center walls
Tubular 16″ on center ceiling
5200 lb Dropped Leaf Spring axles
Electric Brakes (both axles)
Easy Lube Hubs
Electric Brake wiring ran inside steel tubing
Front Diamond Tread Stone guard
Aluminum Teardrop fenders
White exterior Poly Core .080 gauge
Diamond tread front and rear corners
Diamond tread fenders
3” Bottom Trim
Plastic side wall vents

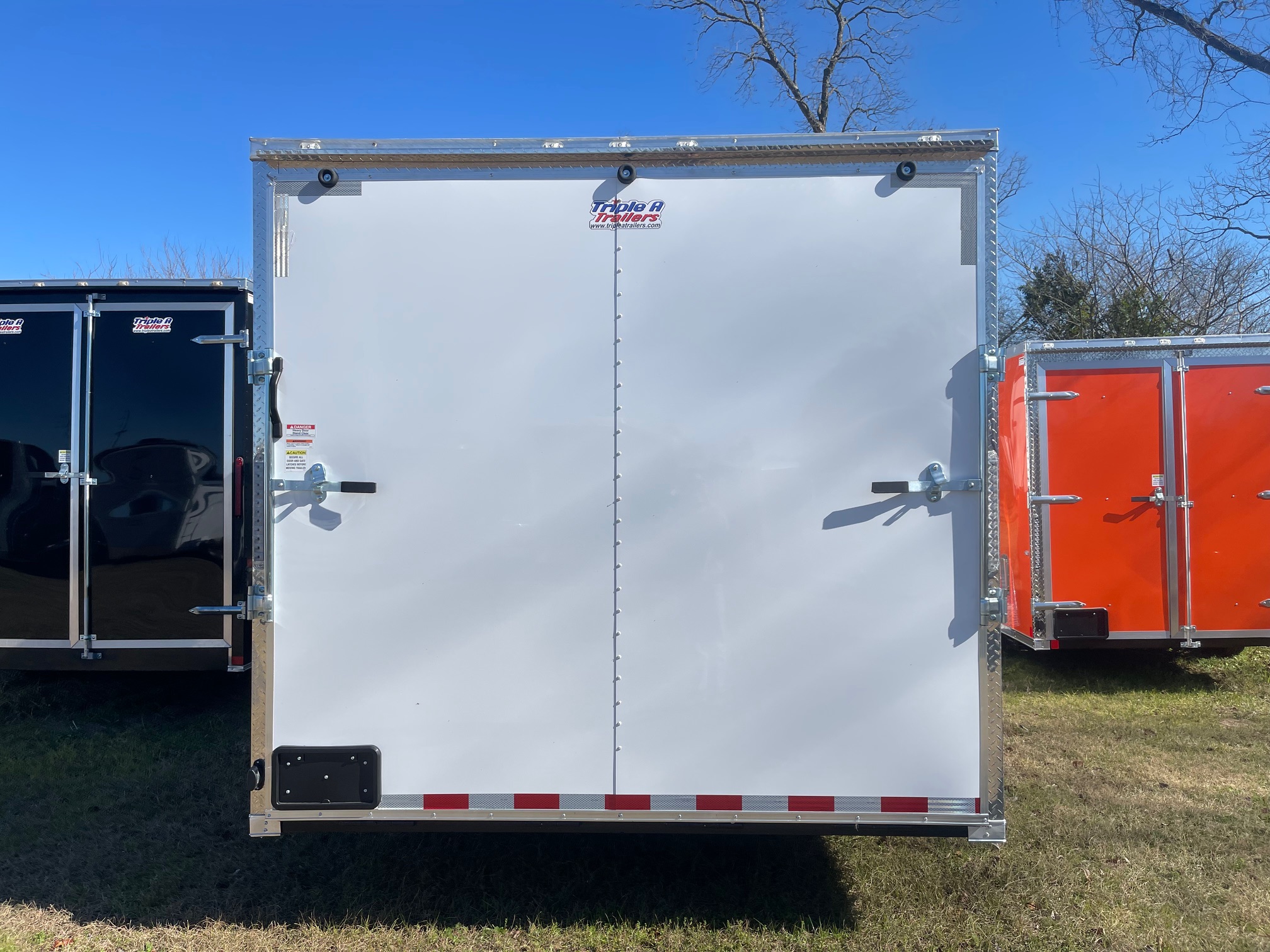

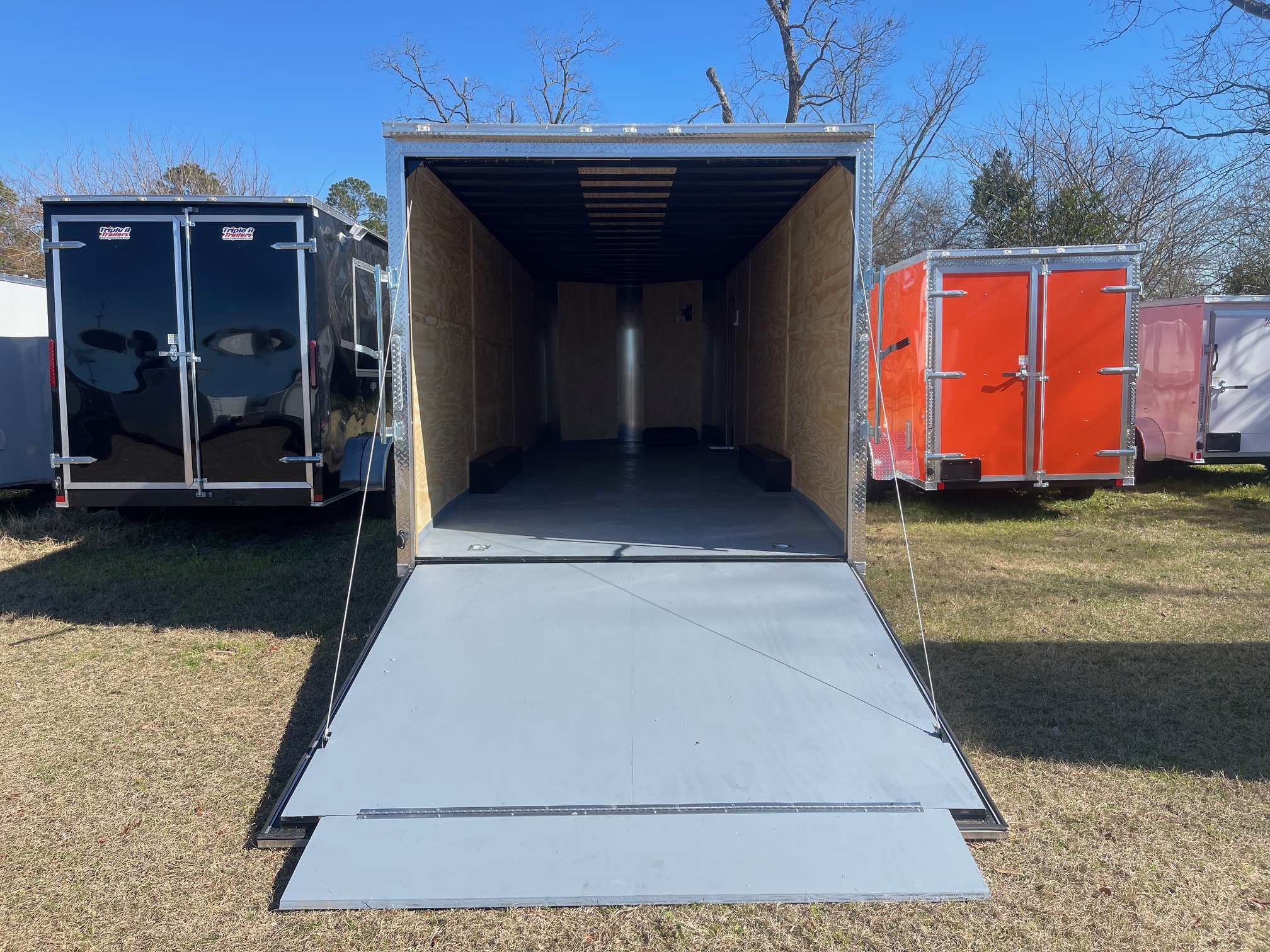

Rear 4500 lb Heavy Duty Ramp Door with flap

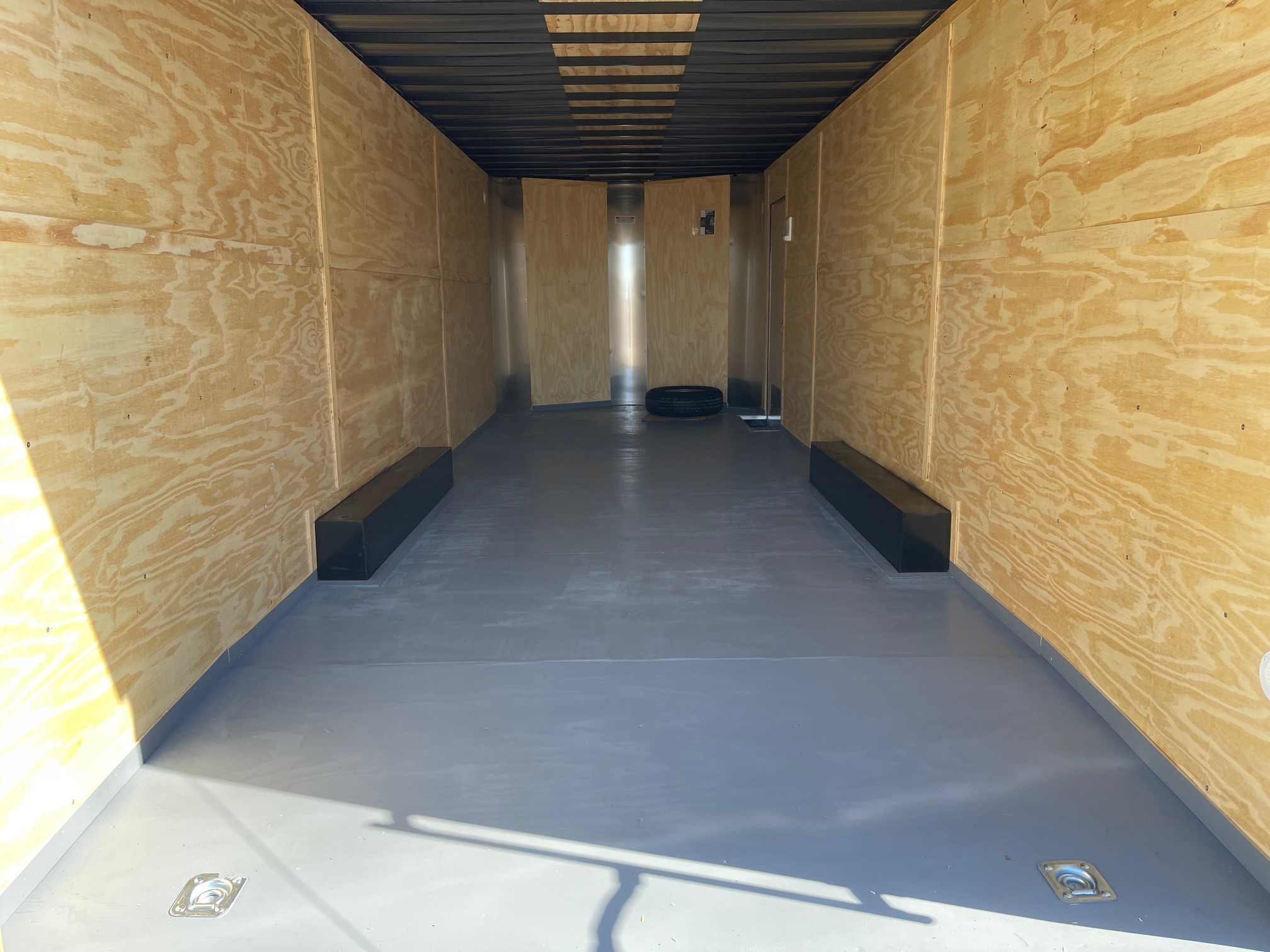

3/4″ plywood floor – Painted Gray
3/8″ Plywood walls
(4) D-rings in floor – recessed and bolted in place with steel plate
15″ Silver modular steel Wheels
Radial Tires 225/75/15
7 foot interior height
All LED Lights
2 5/16th Front Coupler
36″ Bar Lock door with added RV lock
Built in step at side door
2000# Tongue Jack
Corrugated galvanized Mesa roof
Asphalt Undercoating
Drip edge over all doors
Screwed Exterior
Deluxe tag bracket w/ light
Sand foot on tongue jack
DOT Reflective Tape
Spare Tire Included – 225/75/15 Radial on 15” Steel silver mod wheel
