Description

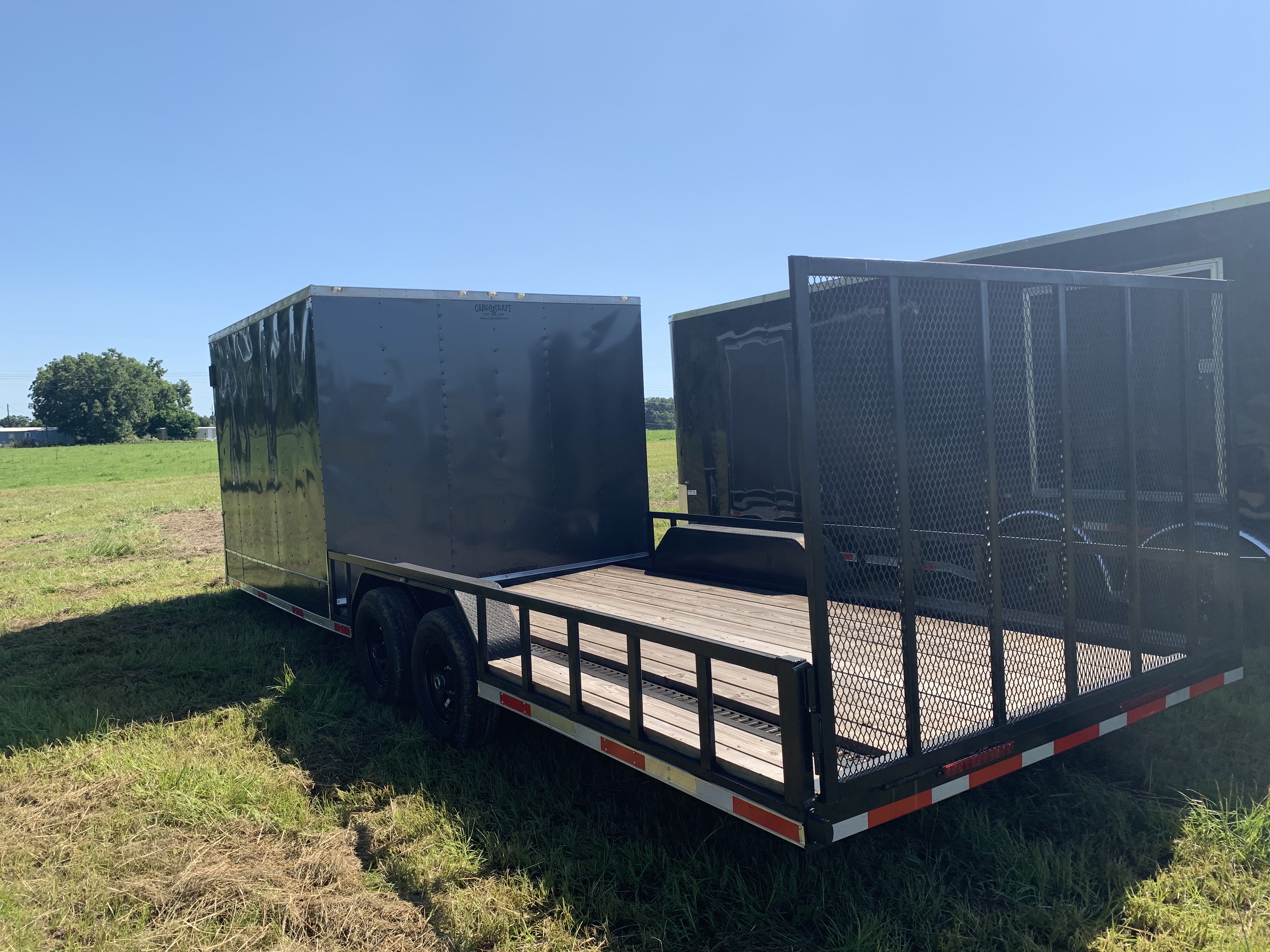

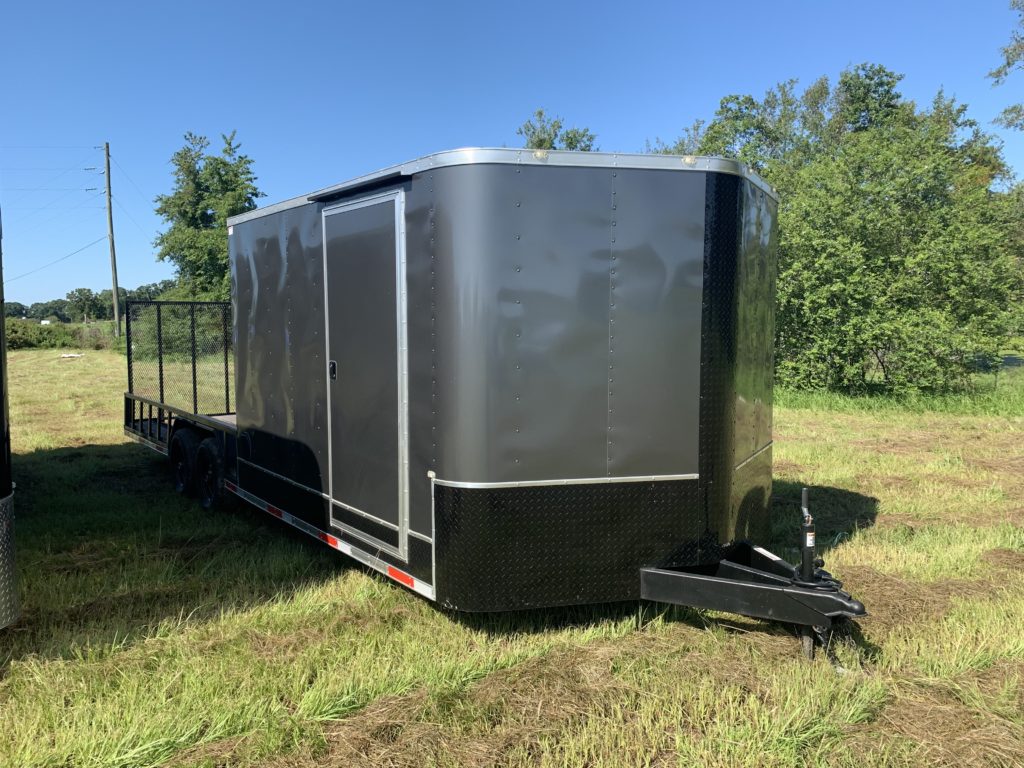

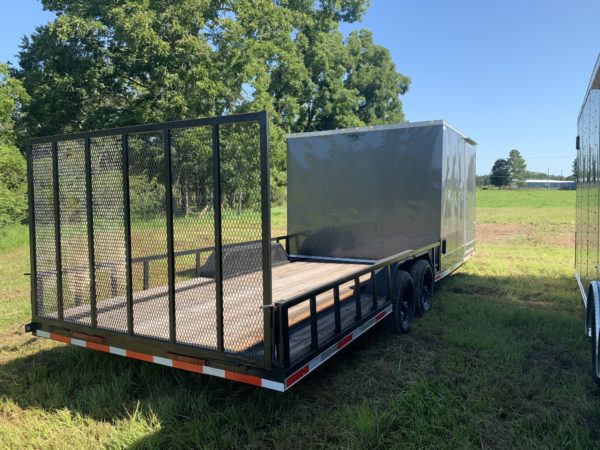

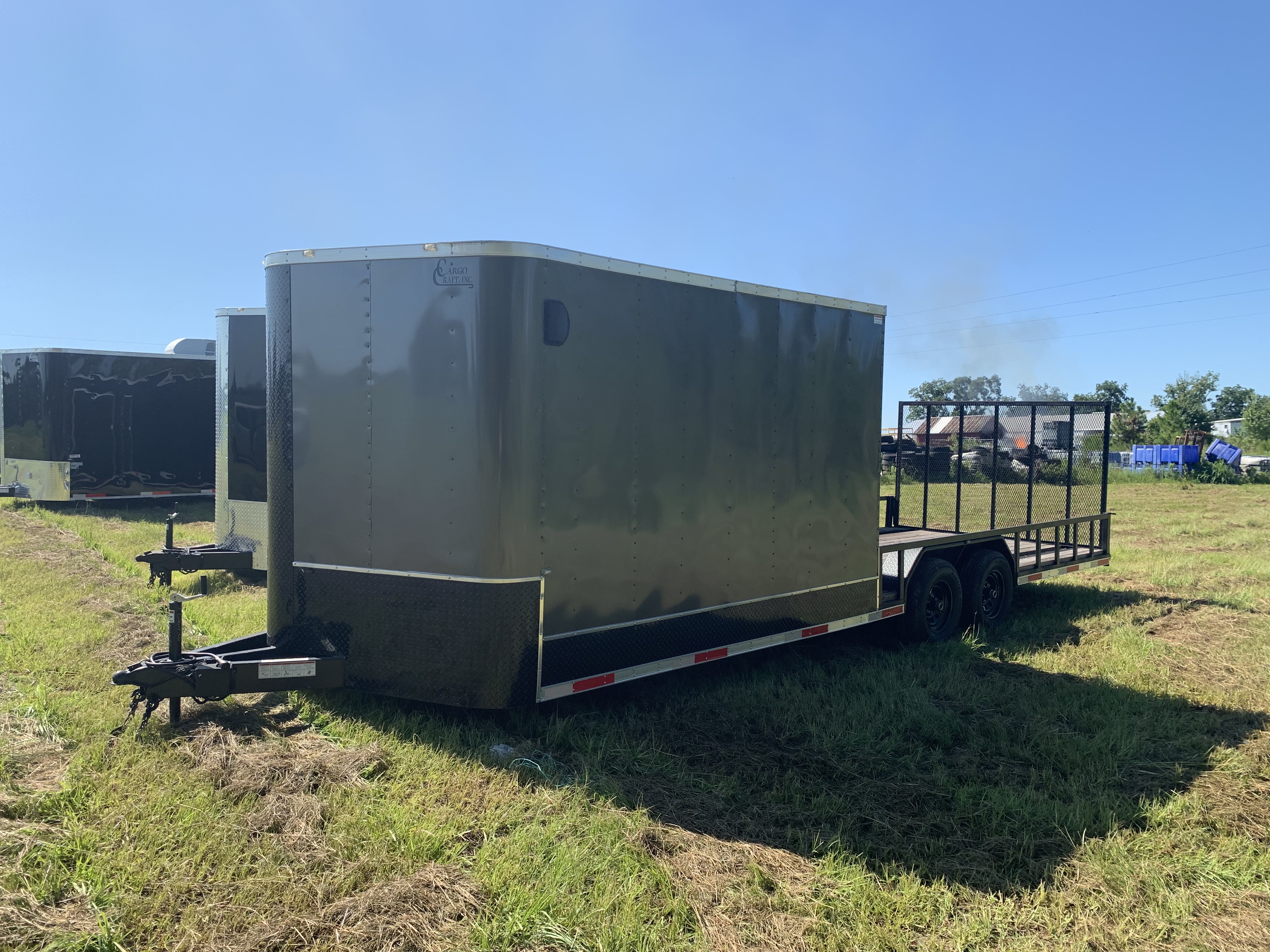

This trailer is an 8.5×24 Tandem Axle HYBRID Series
Included Features:

10 Foot Enclosed & 14 Foot Open
2 Foot rounded V-nose in addition to 10 foot box
2×6 Tubular Main frame
Triple tube tongue
16″ on center floor cross members
Tubular 16″ on center walls
Tubular 16″ on center ceiling
5200 lb Dropped Leaf Spring Axles
Easy Lube Hubs
Electric Brakes (both axles)
Electric Brake wiring ran inside steel tube main frame
36″ RV style side door
Charcoal Gray Exterior Aluminum .030 gauge
Screwed Exterior
Black diamond tread stone guard
12” black diamond tread on sides of enclosed area
Diamond Tread Fenders (walk on fenders)
5 Foot Steel Mesh rear Gate

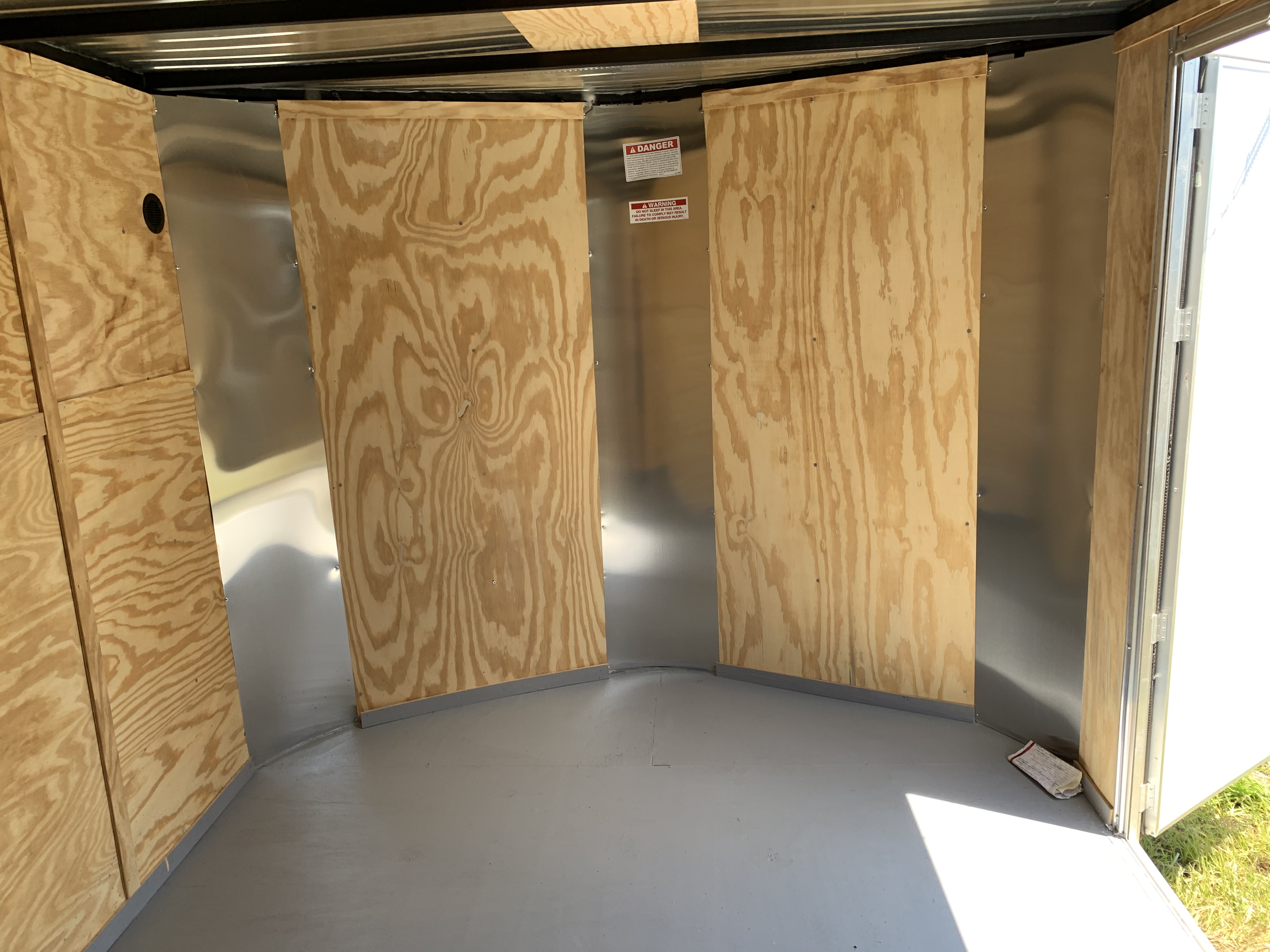

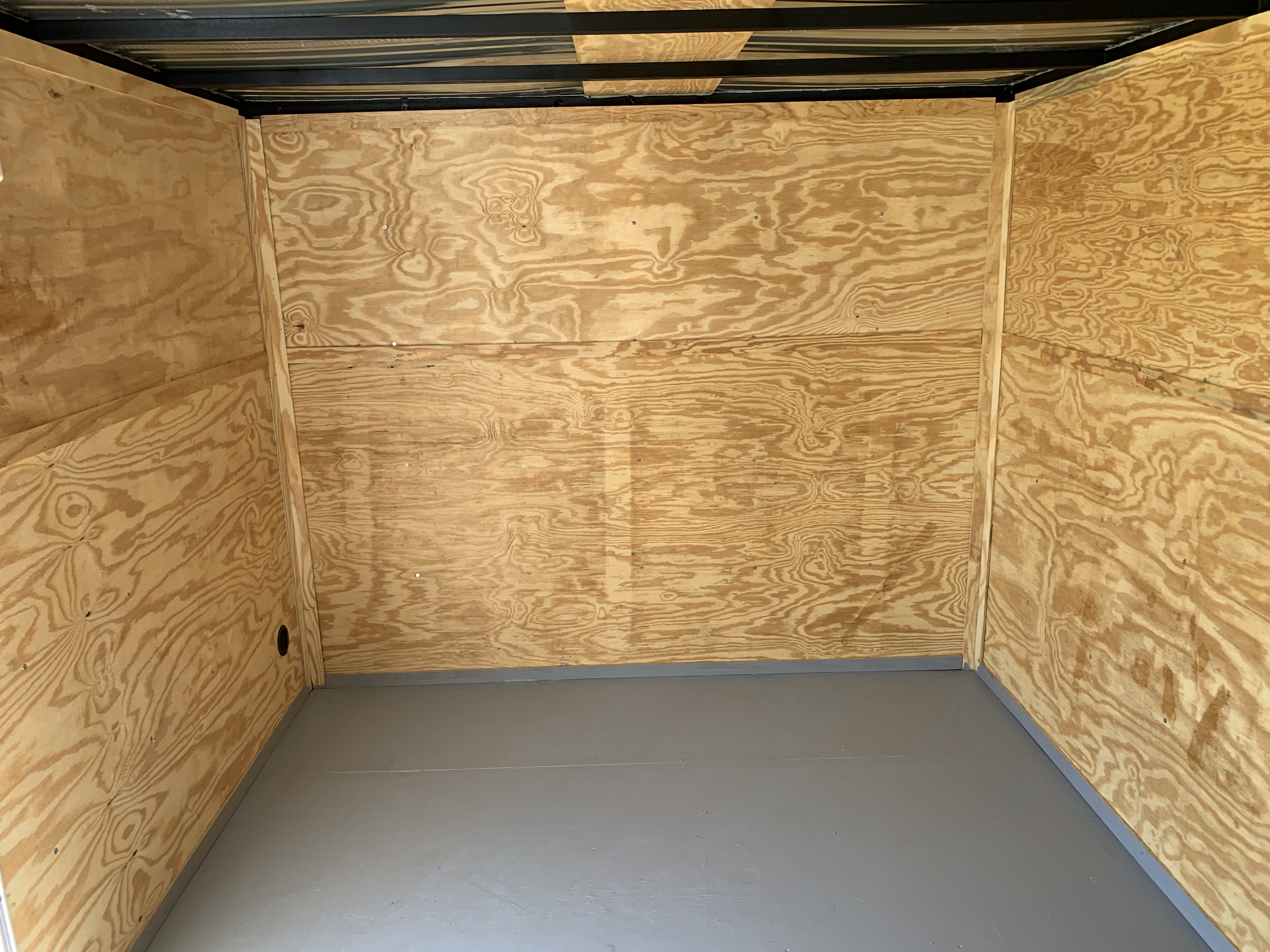

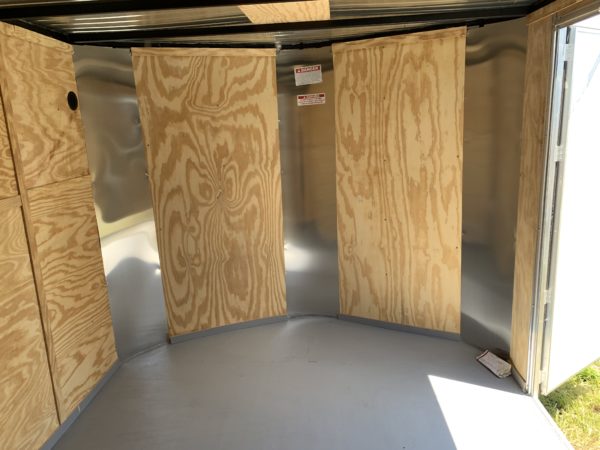

3/4″ plywood floor painted gray in enclosed area
3/8″ plywood walls
2 x 6 Treated Wood flooring (open part of trailer)
(2) rows of E-track in floor of rear open deck – recessed and welded in place
15″ Black Mod Wheels
225/75/15 Radial Tires
6 Foot 6 Inch interior height
All LED Lights
2 5/16th Front Coupler
Dust shield (no dust inside the trailer)
Solid front wall construction
Corrugated galvanized Mesa roof
Asphalt Undercoating
Drip edge over all doors
