Description

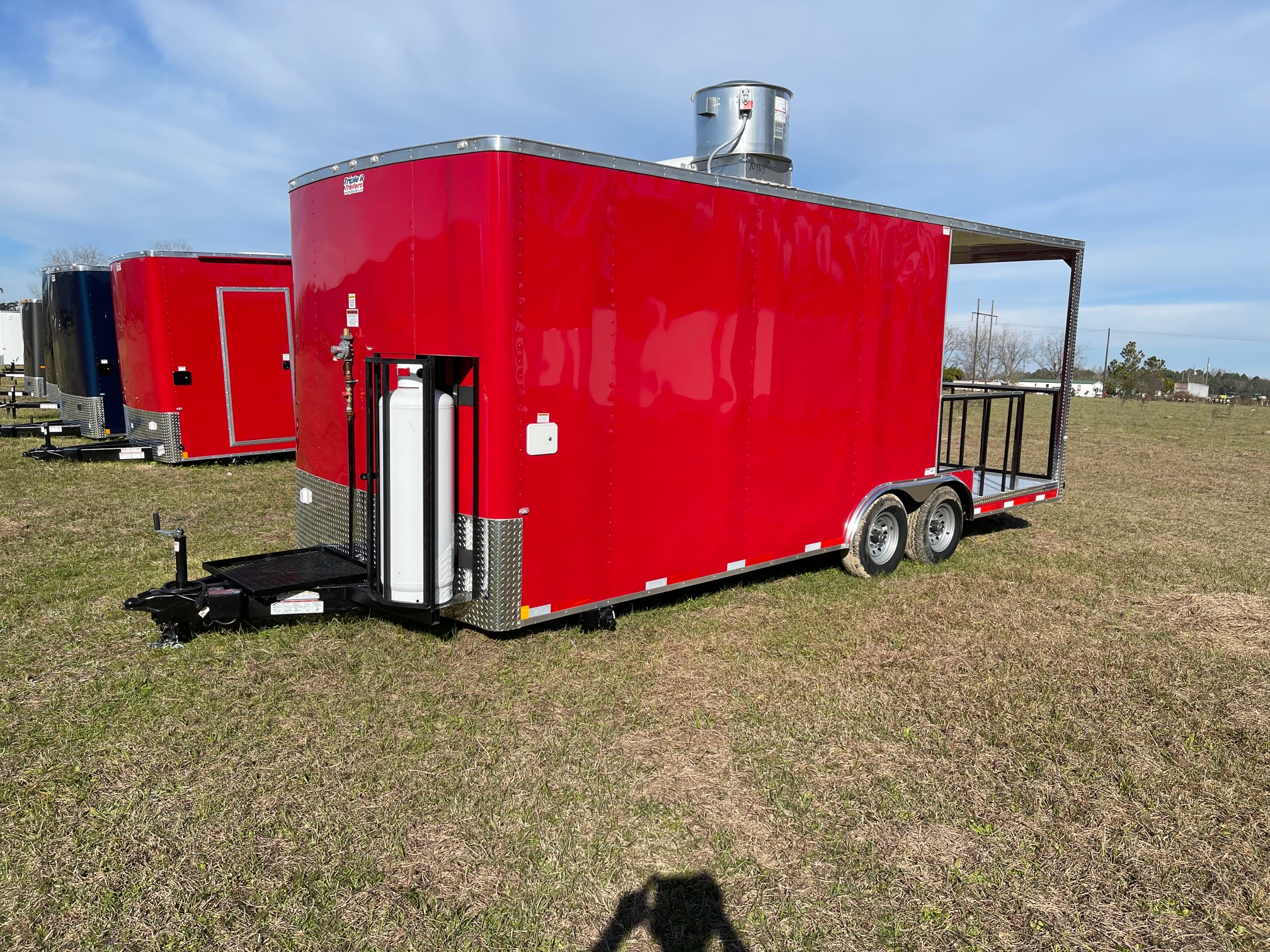

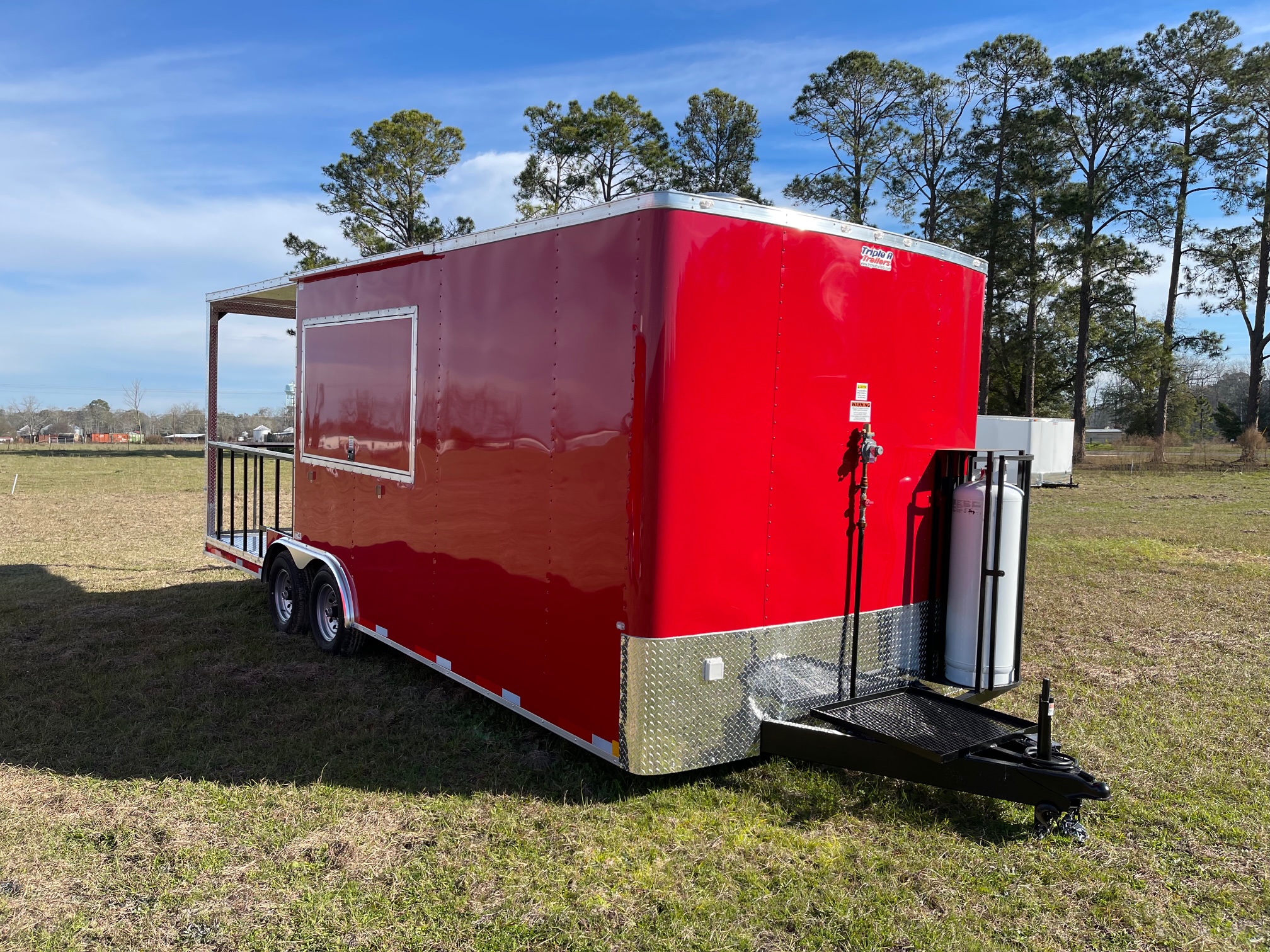

8.5′ x 22′ Tandem Axle – Concession Porch Series.

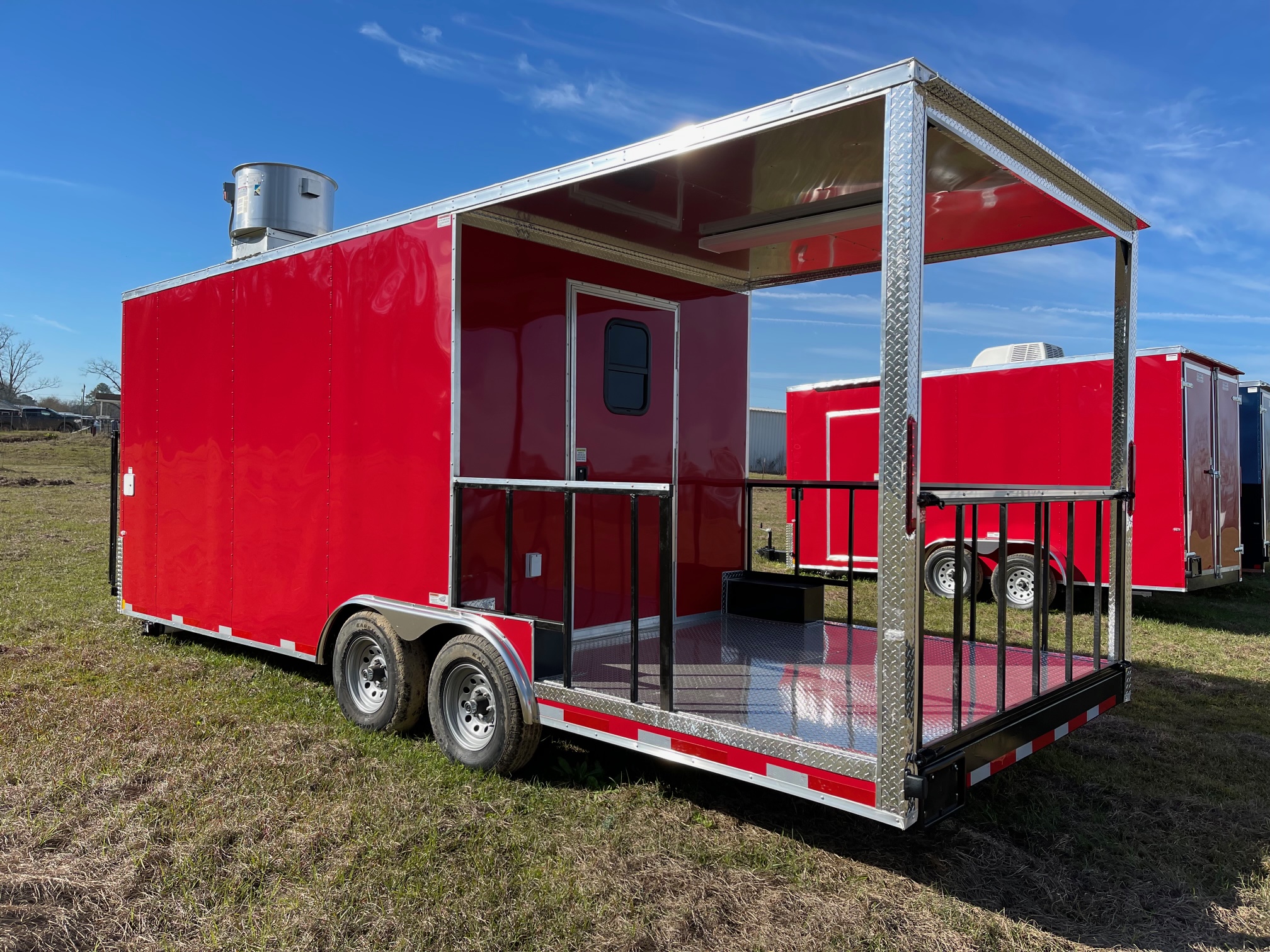

• This trailer has a 14 foot box with a 8 foot porch and handrails
• Removable Handrails on rear
• Triple Tube Tongue
• Extended Tongue
• Generator Platform on tongue
• 2×6 Tubular Main frame
• 16″ on center floor cross members
• 16″ on center wall studs
• 16″ on center ceiling cross members
• Styrofoam Insulated Walls and Ceiling
• 5200# Dropped Leaf Spring Axles
• Electric Brakes (both axles)
• Easy Lube Hubs
• Electric Brake Wiring ran inside steel tubing main frame
• Red Exterior Aluminum .030 gauge
• Semi Screwless Exterior
• Diamond Tread front Stone Guard
• Smooth aluminum Fenders
• 3/4″ Plywood Floor
• 7/16″ OSB Walls and ceiling
• Mill finish aluminum walls walls and ceiling in enclosed area
• Mill finish aluminum walls and ceiling (enclosed and porch)
• 15″ Silver Mod Wheels
• 225/75/15 Radial Tires
• 7 foot 6 Inch Interior Height
• (1) 40×74″ Concession window with sliding glass windows and screens
• (1) Interior shelf under concession window
• (1) Exterior removable shelf under concession window
• 2 5/16th Front Coupler
• (1) 12 volt dome light
• (1) 36″ R/V Style Door with window and screen door
• Heavy Gauge .063 diamond Tread on the porch floor
• Marble Vinyl Floor in the 14 foot enclosed part of the trailer
• All LED Lights
• Dust shield
• Solid front wall construction
• Corrugated galvanized Mesa roof
• Asphalt Undercoating
• Drip Edges Over All Doors
• Sand foot
• Deluxe license plate holder

50 Amp Electrical Package

• (5)outlets inside
• (3) Fluorescent Lights
• (1) Exterior 150 watt flood light
• 50 Amp Panel Box
• (1) GFCI Outlet – Located on the porch
• 50 Amp Ship to Shore Cord (25 foot lifeline to power the trailer
• 13,500 BTU A/C Unit with Heat Strip
• Hot and Cold Water package includes:
  Three Compartment Sinks and Hand wash sinks set inside base cabinets
  6 gallon Hot water Heater
  38 Gallon Gray water tank & 30 Gallon Fresh Water Tank
  120 Volt On Demand Water Pump
  Splash Guard and Drain Boards
• 6 Foot Hood range
• (1) 100# Propane tank and cage with 450,000 BTU regulator
• (3) Propane gas line stub ups under hood range
