Description

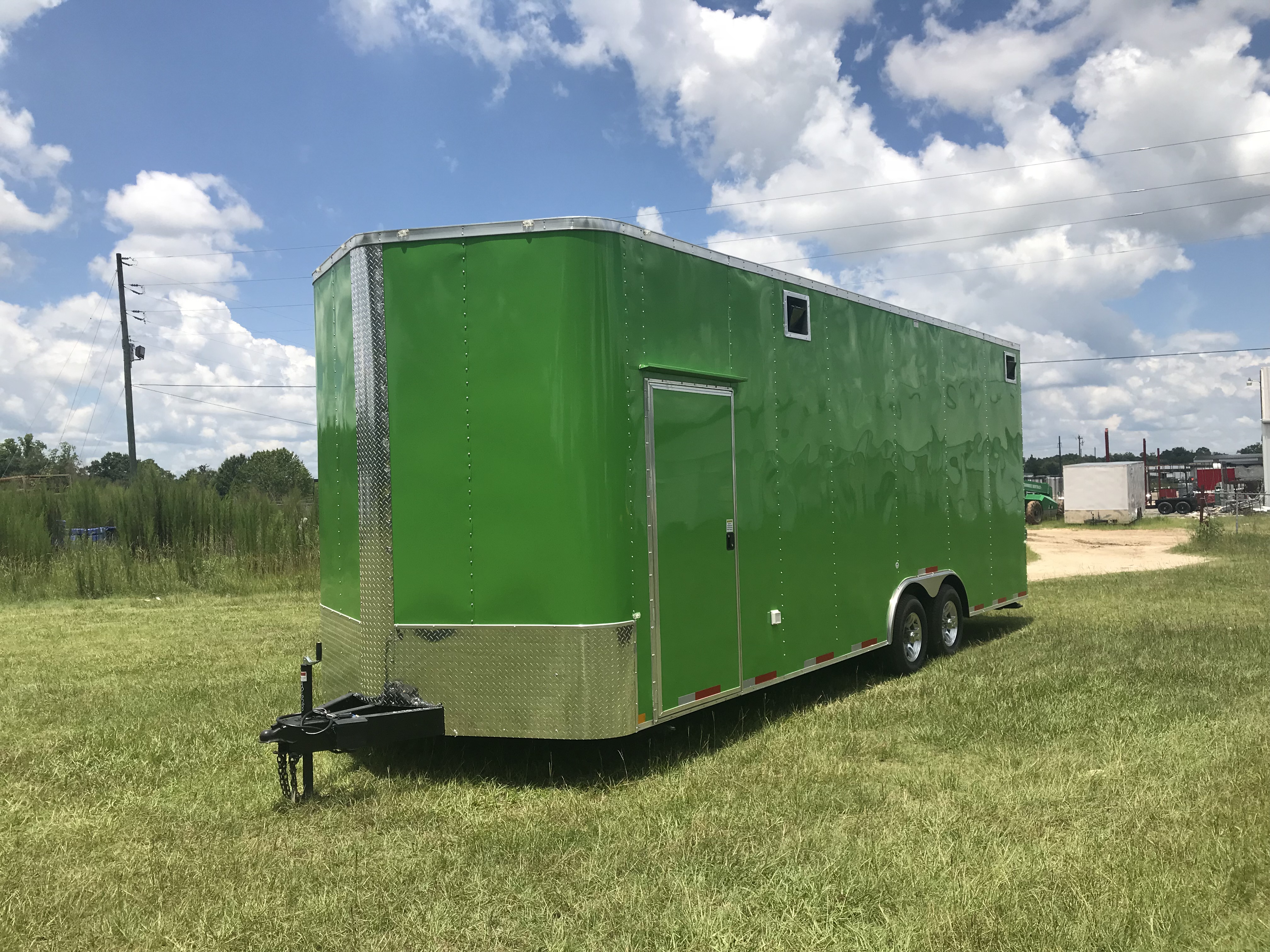

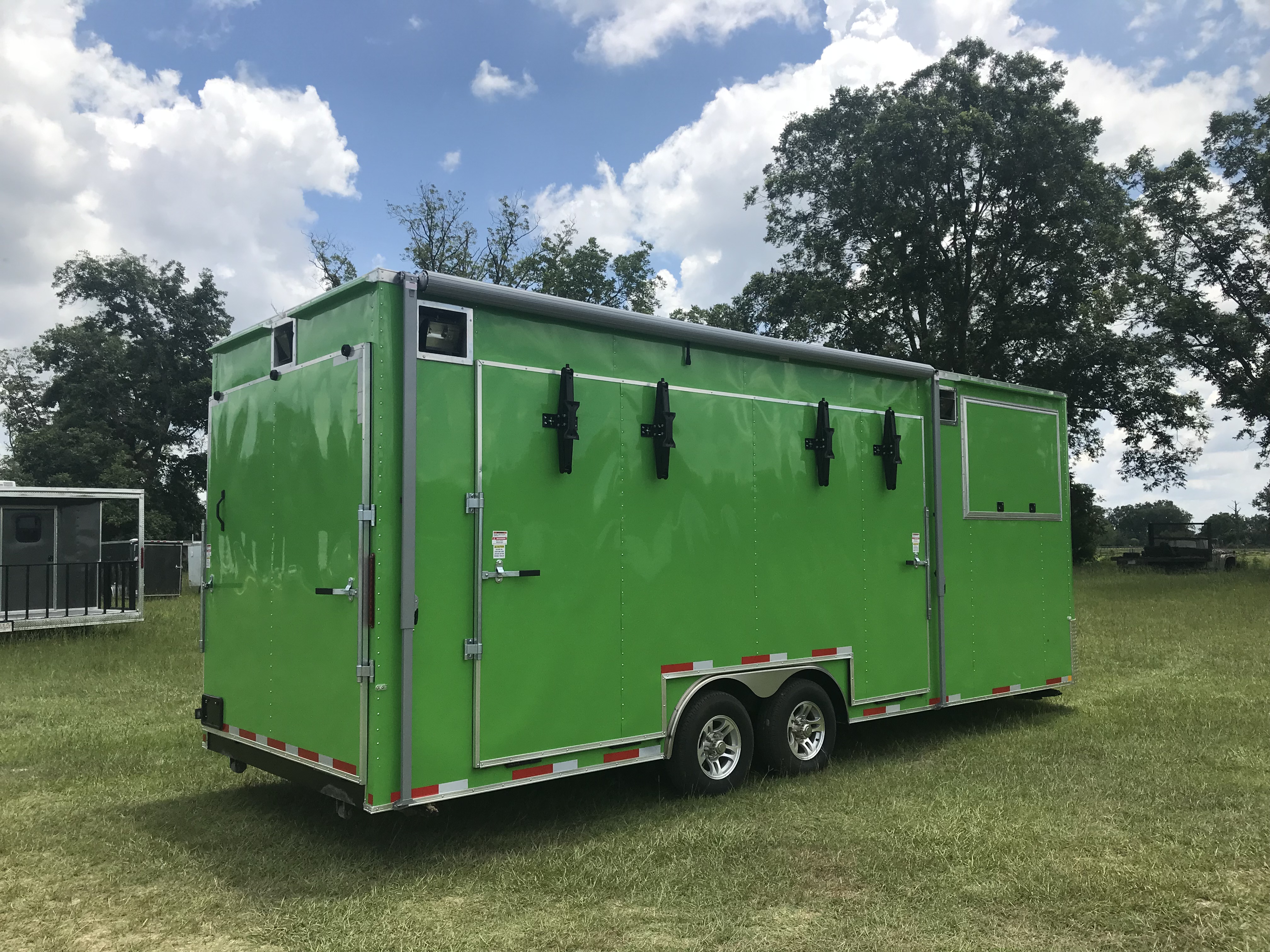

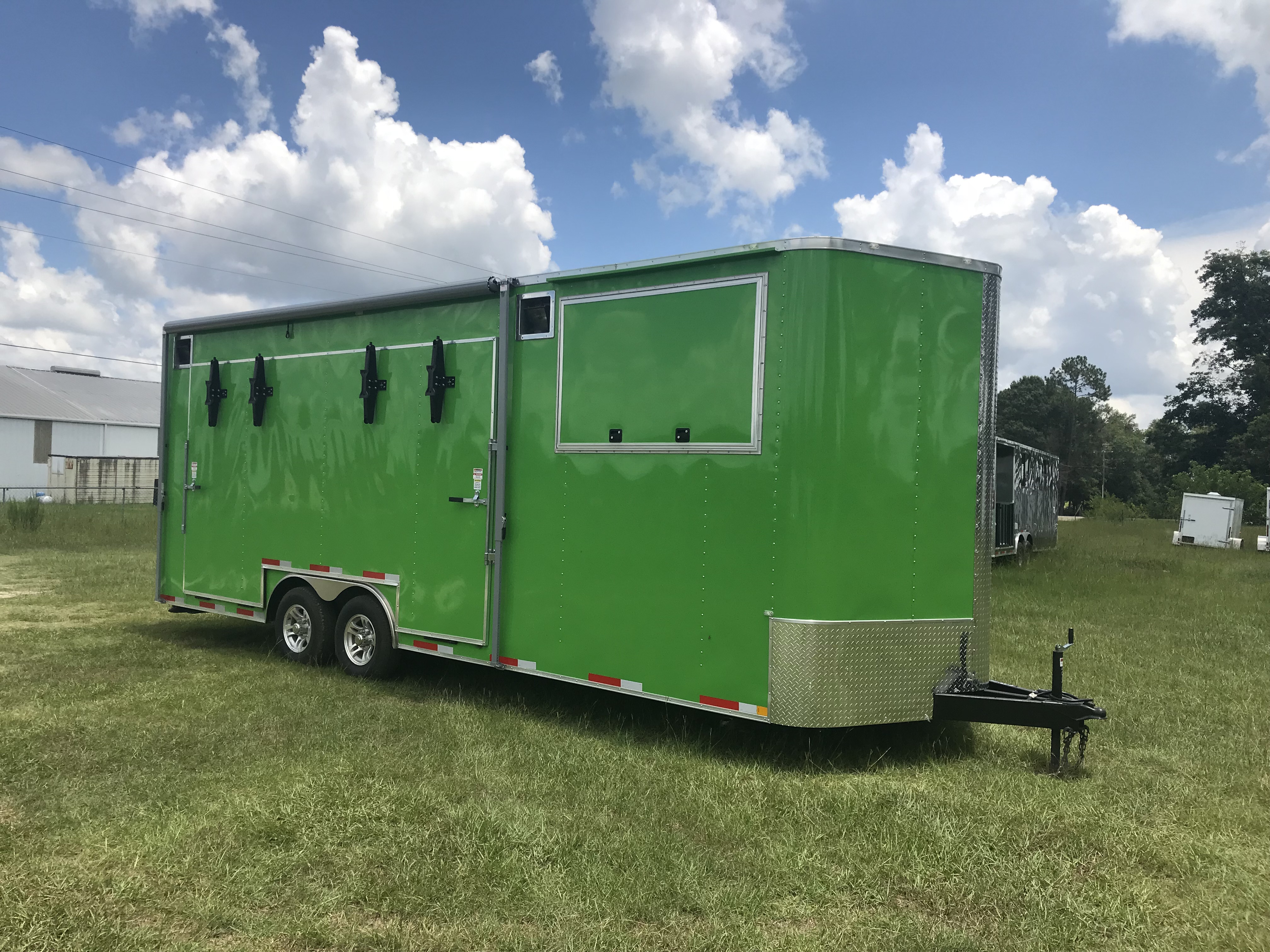

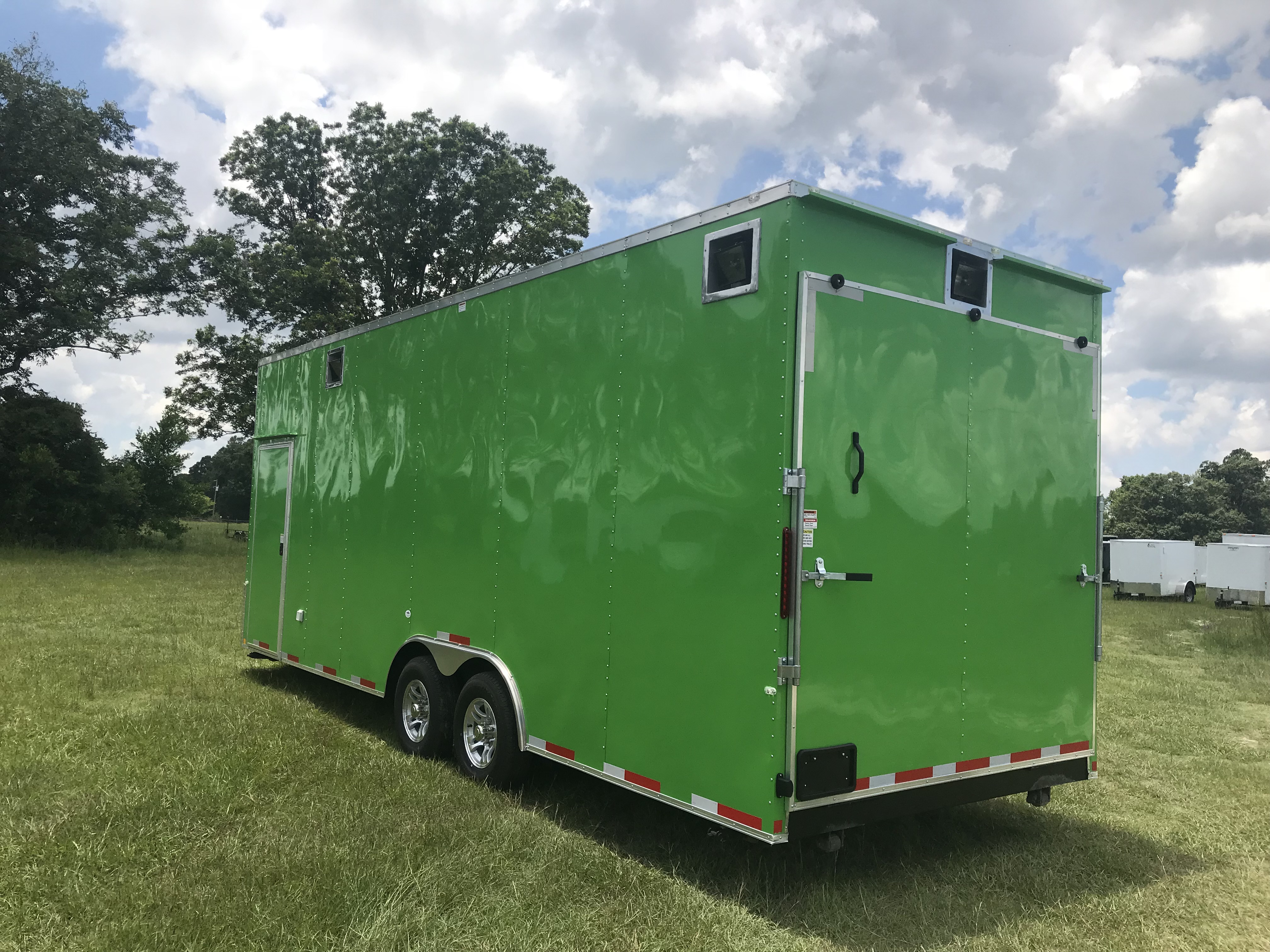

8.5×24 Tandem Axle Stage Trailer

– 2 Foot rounded V-nose in addition to the 24 foot box
– 2×6 Tubular main frame – NO I-BEAM
– 16″ on center floor cross members
– 16″ on center wall studs
– 12″ on center roof cross menmbers
– Triple Tube Tongue
– Solid front wall construction
– Dust Sheild
– Asphalt Undercoating
– 3/4″ Plywood floor
– 3/8″ Plywood walls
– Semi Screwless
– Lime Green exterior aluminum .030 gauge
– 8 foot 6 inch interior height
– 5200# Leaf Spring axles
– Electric Brakes Both axles with breakaway kit
– Easy Lube Hubs
– 2 Foot Elite front V-nose in addition to 24 foot box

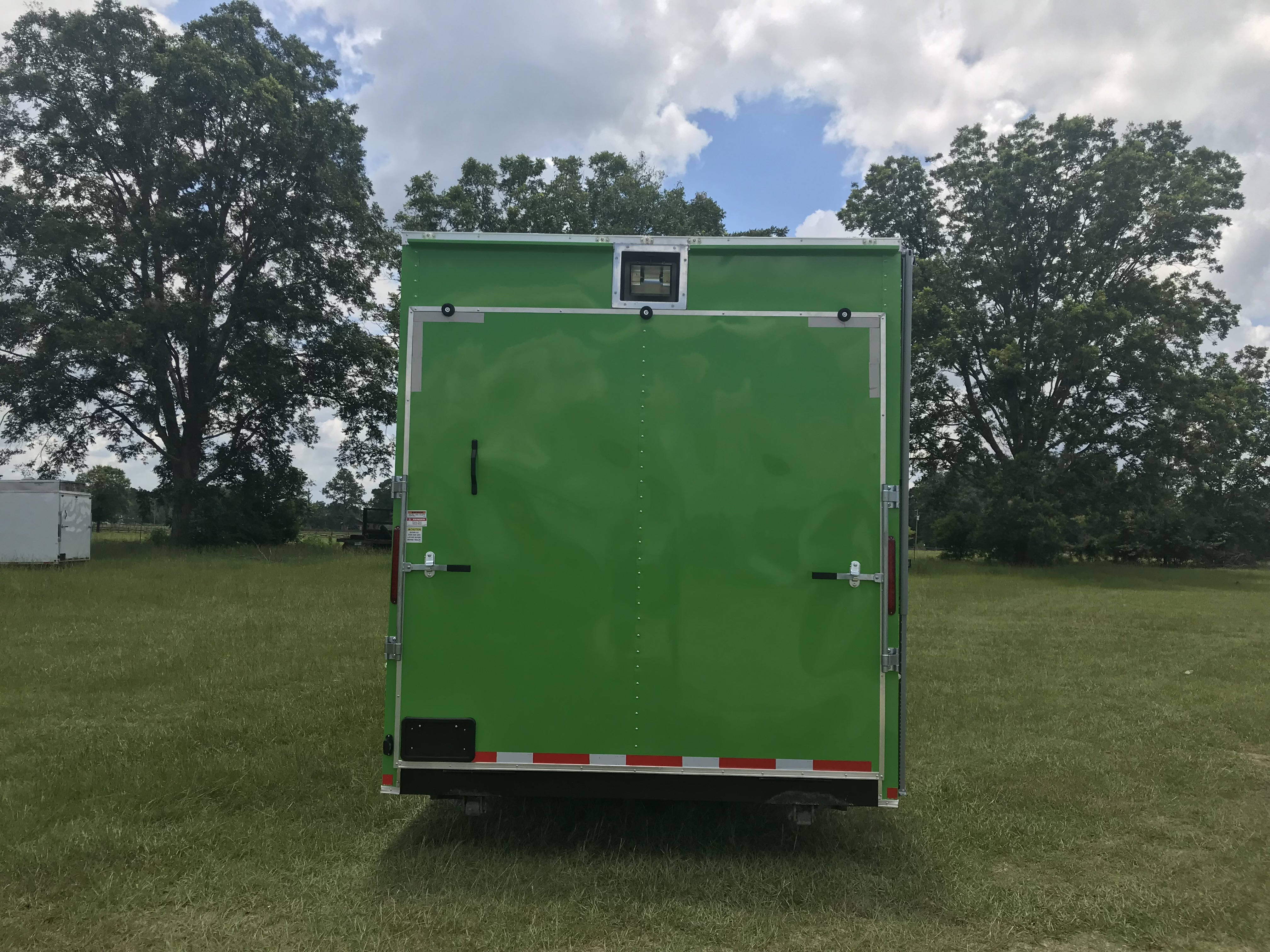

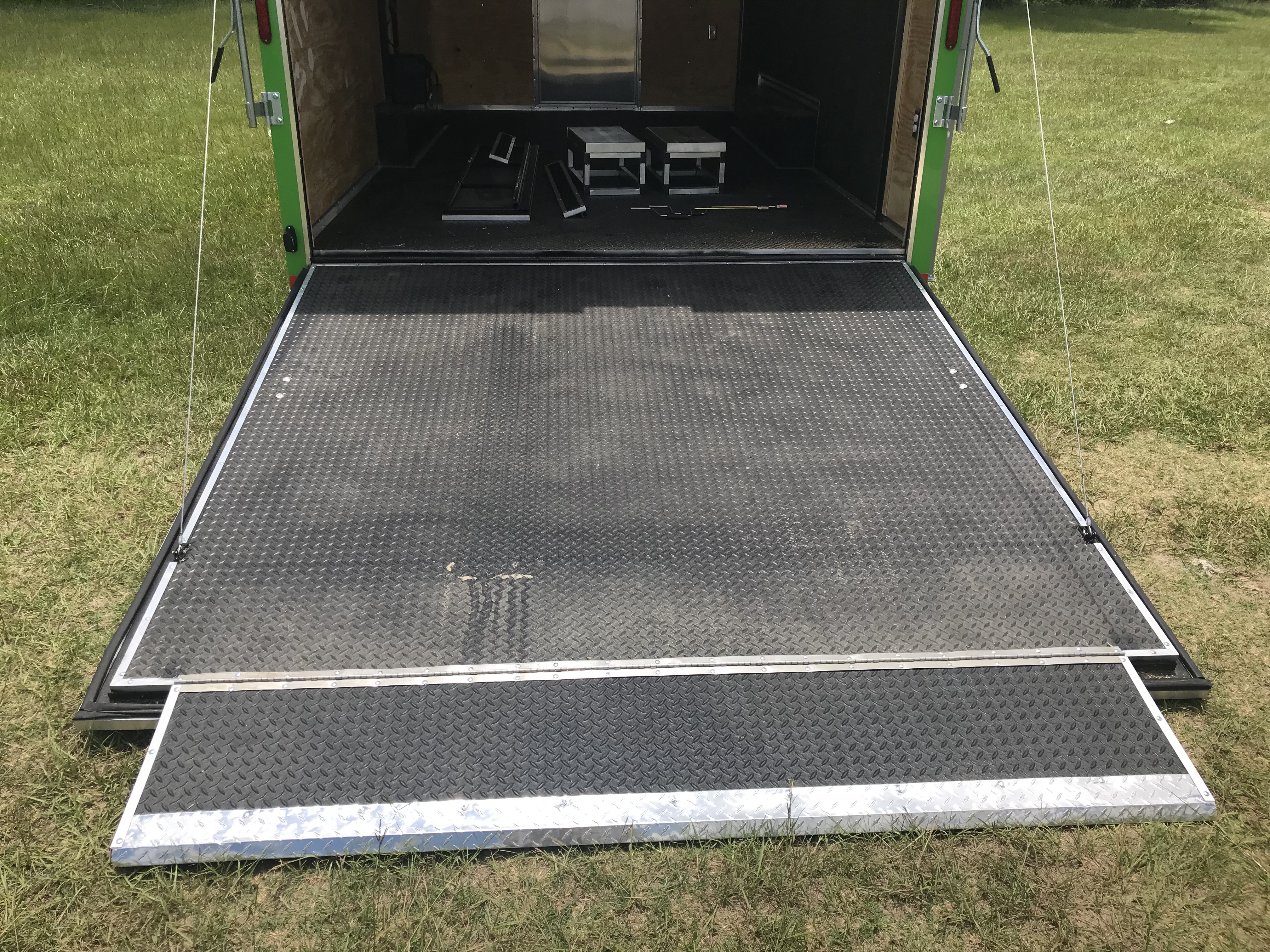

– Heavy Duty Rear ramp w/ flap 4500#
– Alloy Aluminum wheels with Radials
– Corrugated Galvanized Roof
– All LED lights

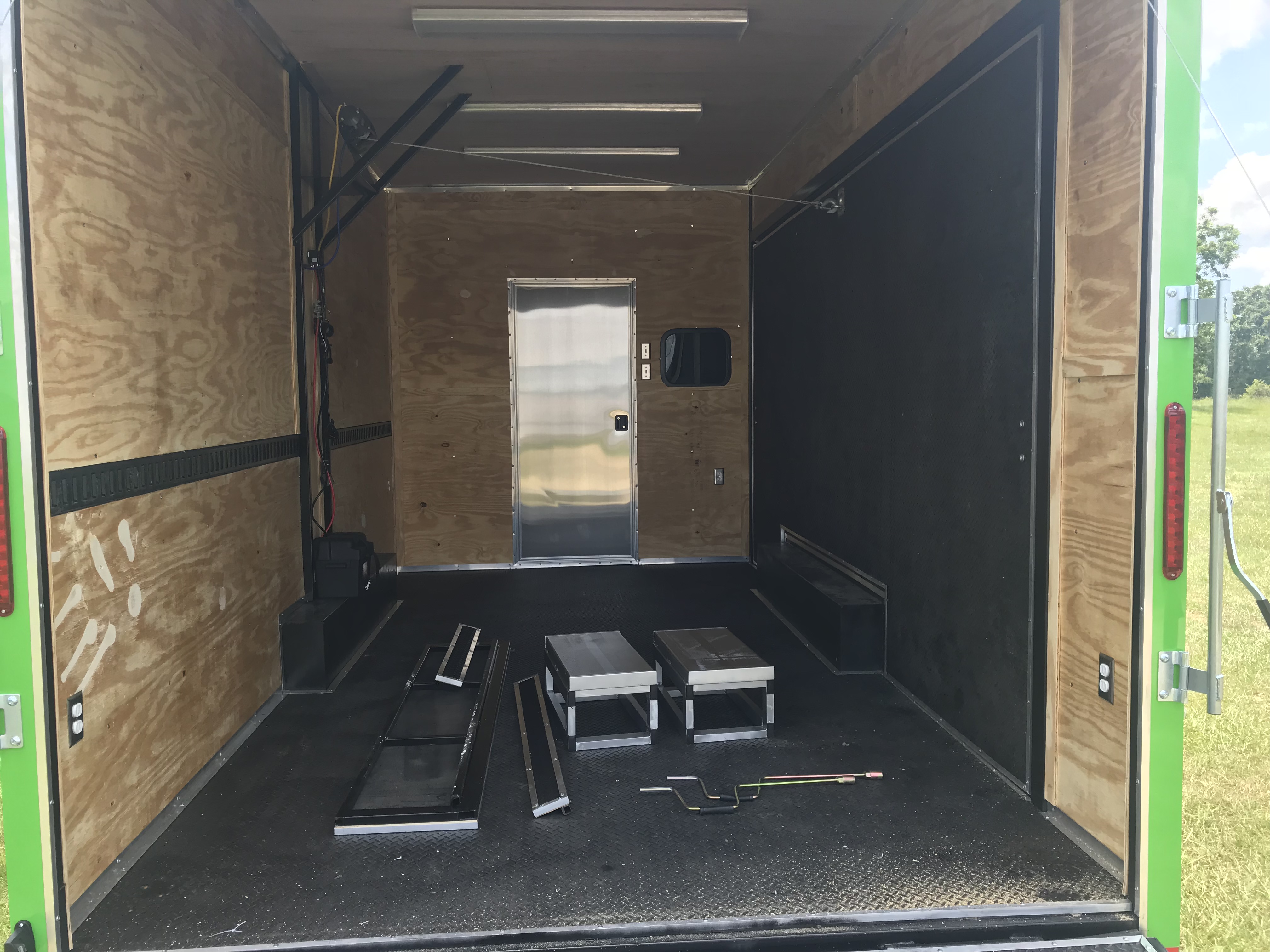

– 16 Foot of E-track welded in down the roadside wall
– 36″ R/V Style side door with step well
– 24″ Diamond Tread Stoneguard
– 2 5/16th Front cupler

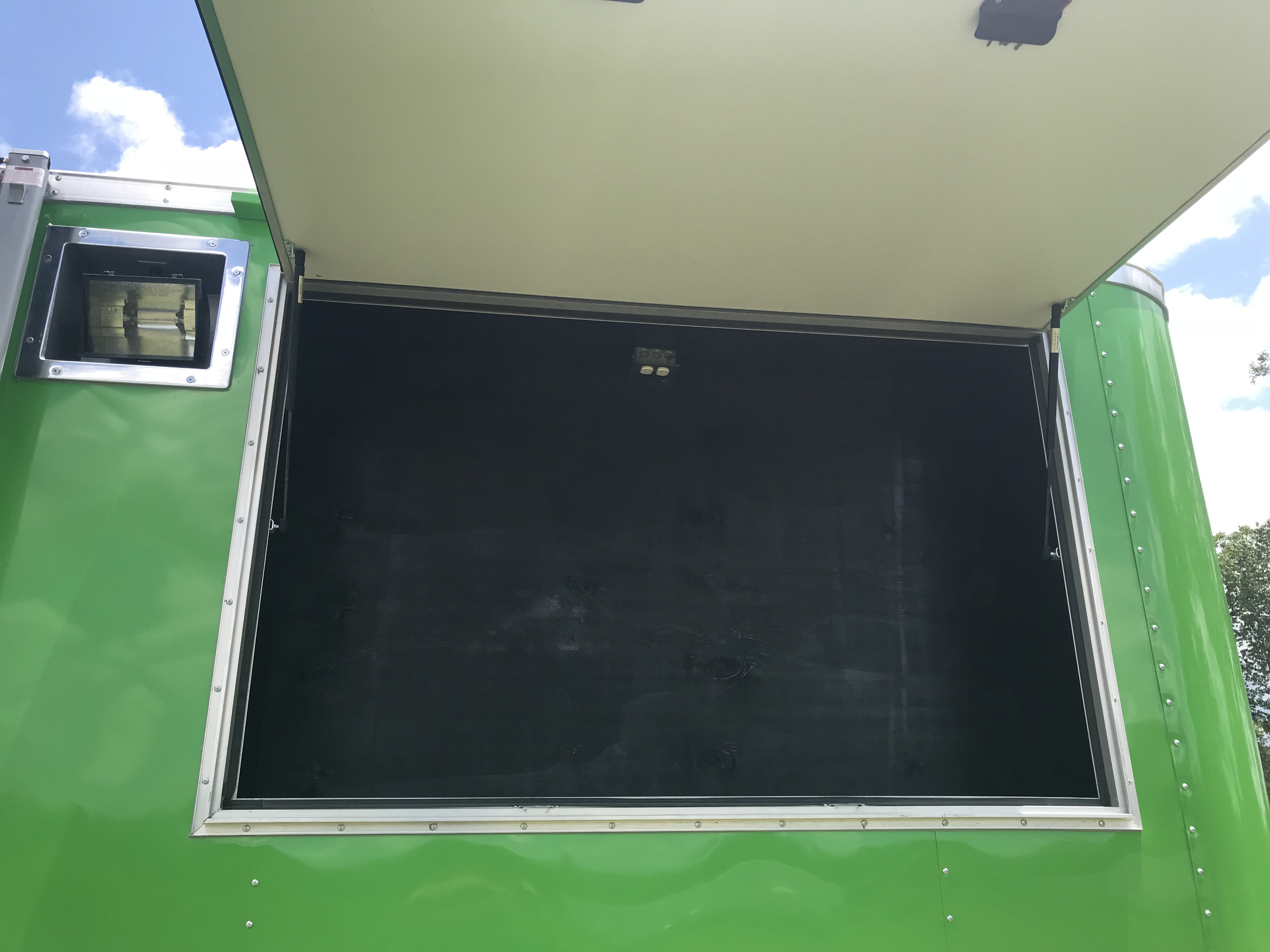

– 40×60″ Recessed TV Compartment with top hinge lift up awning with R/V latch

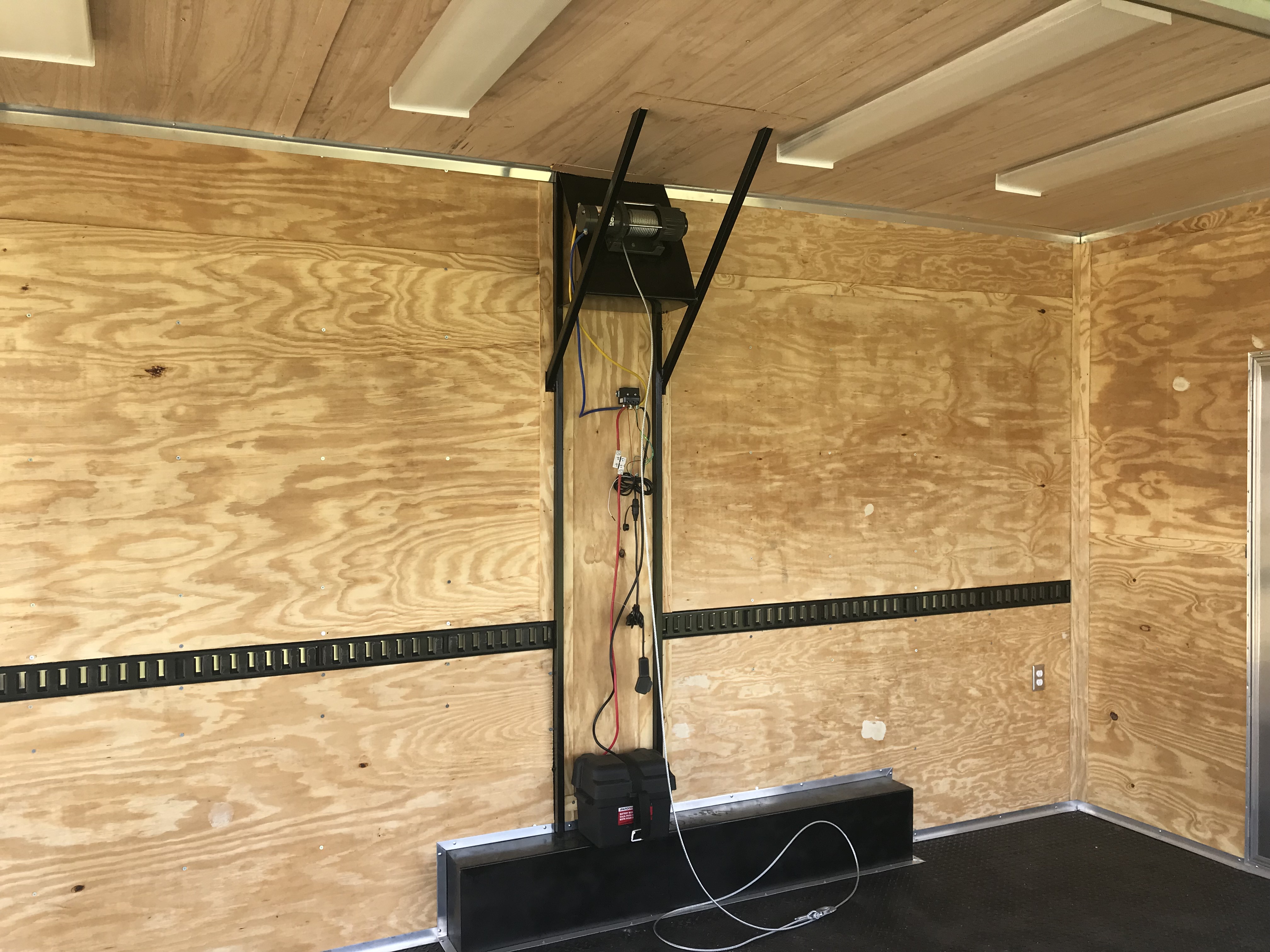

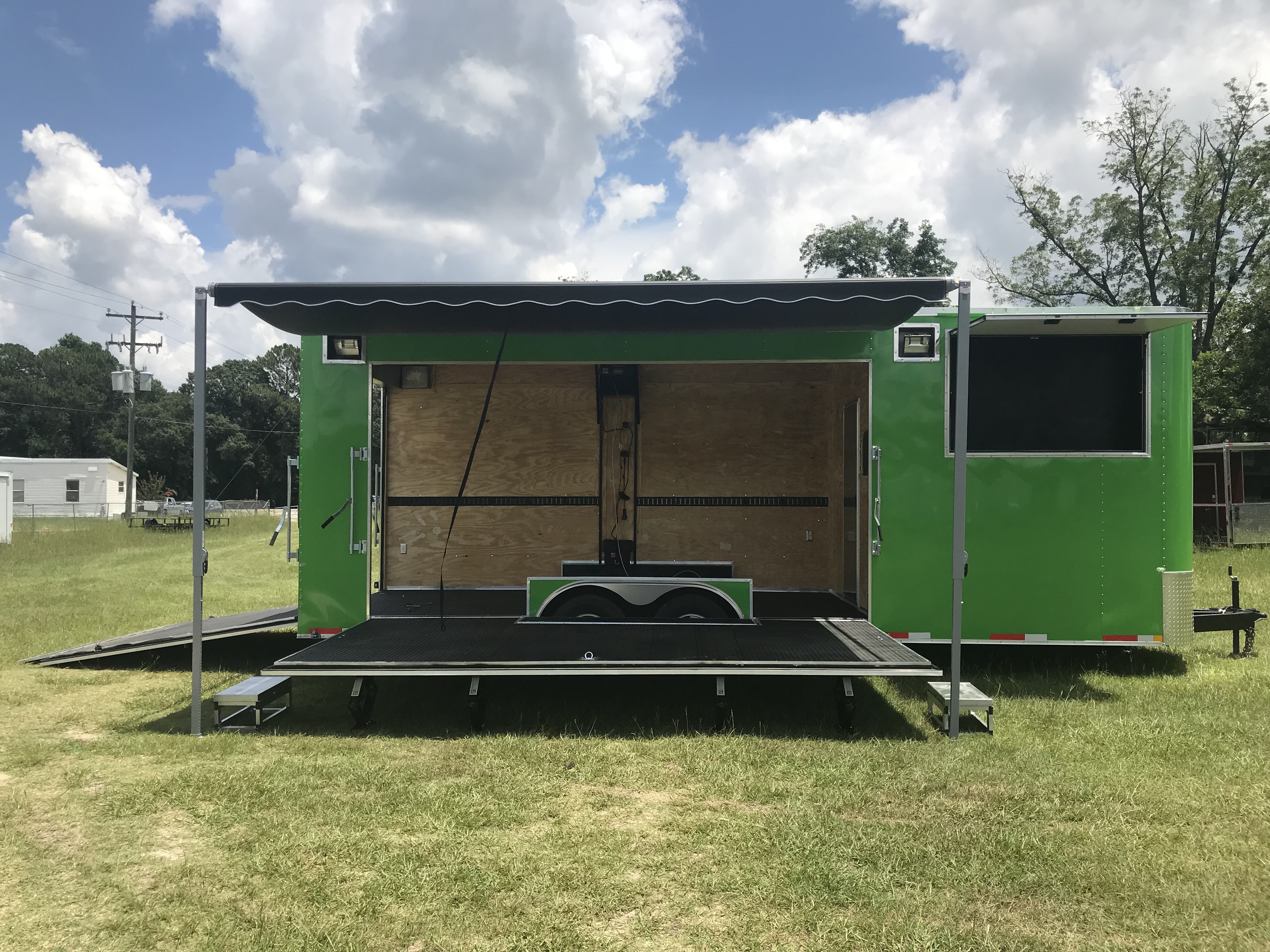

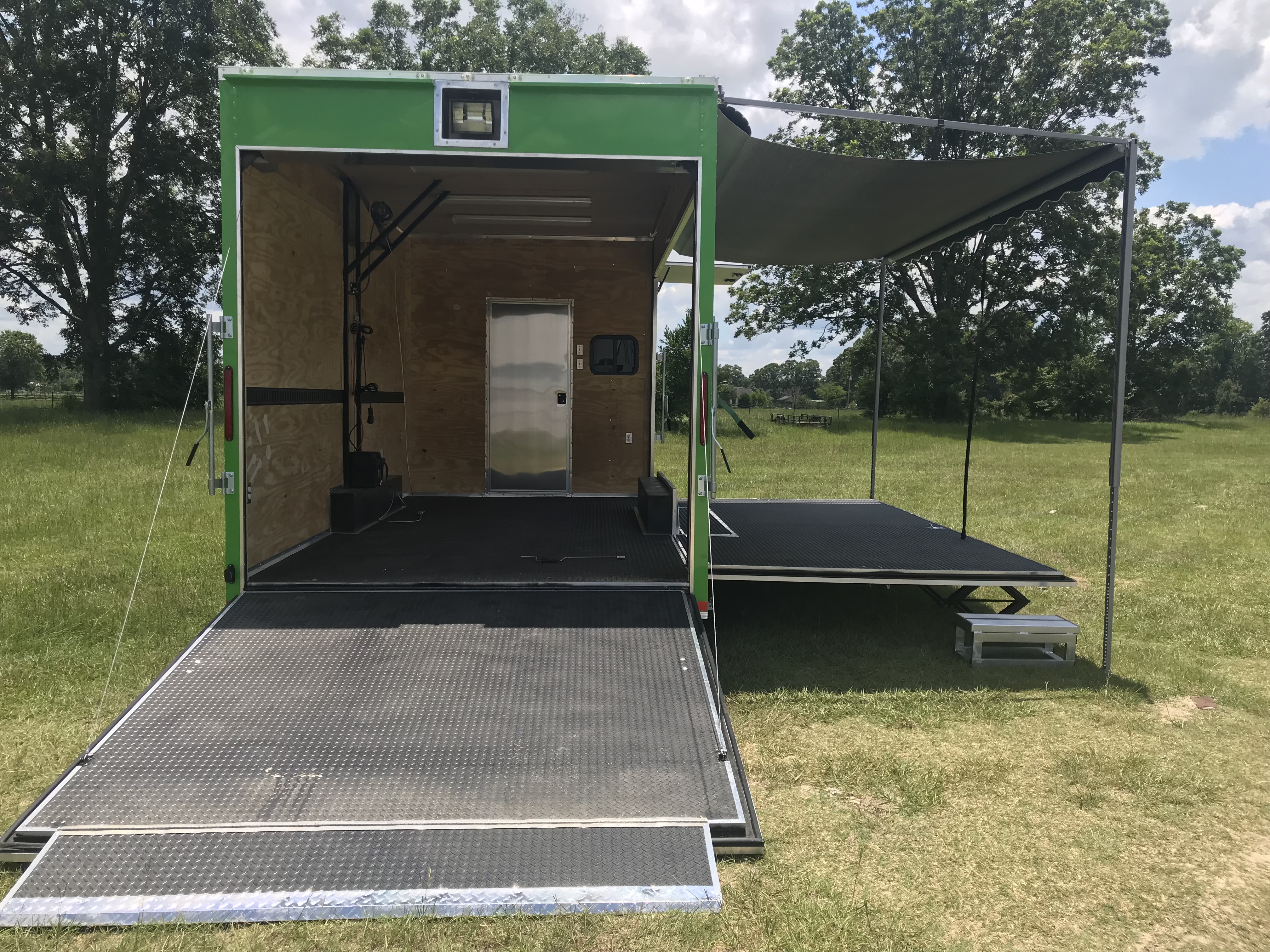

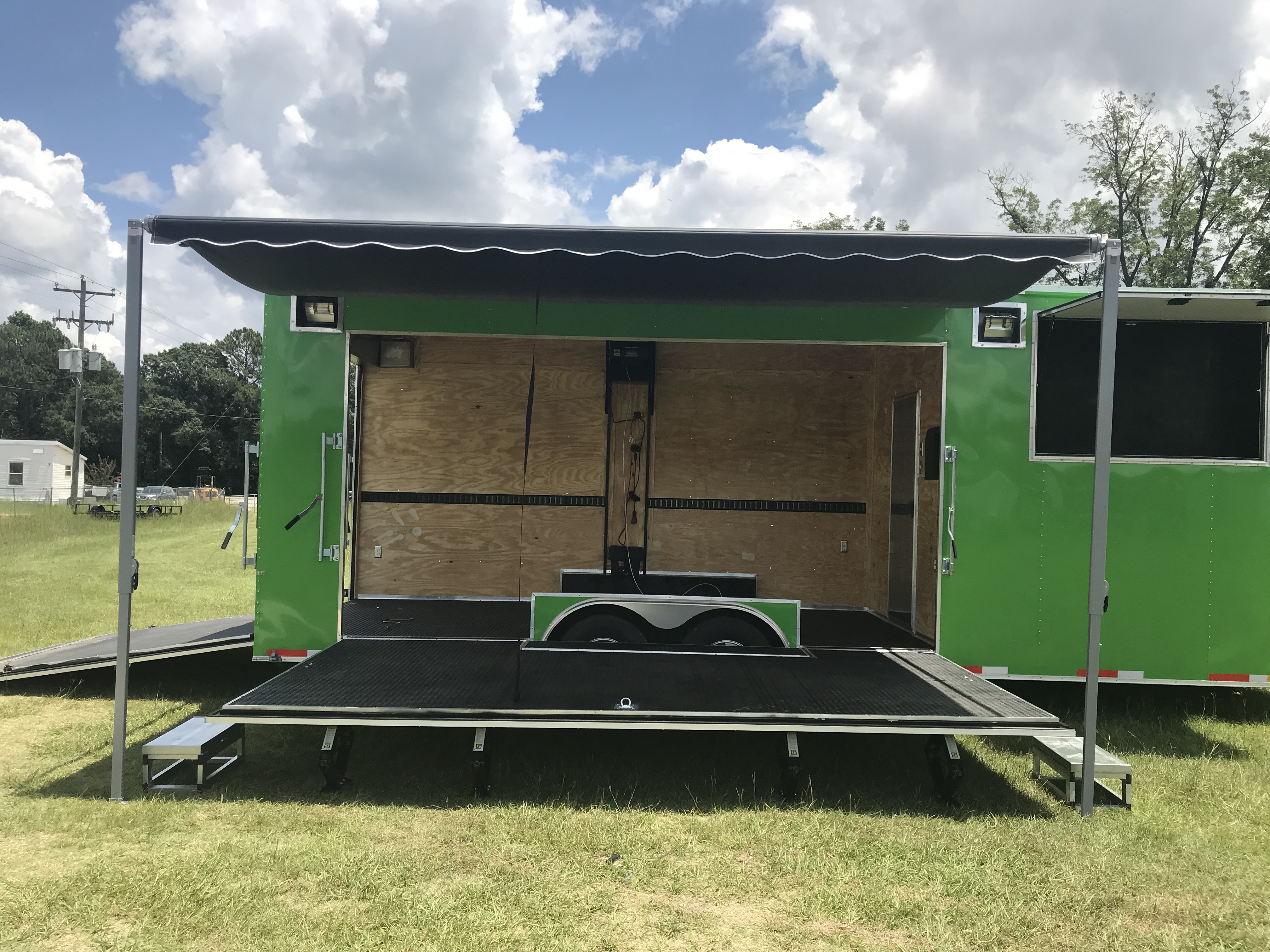

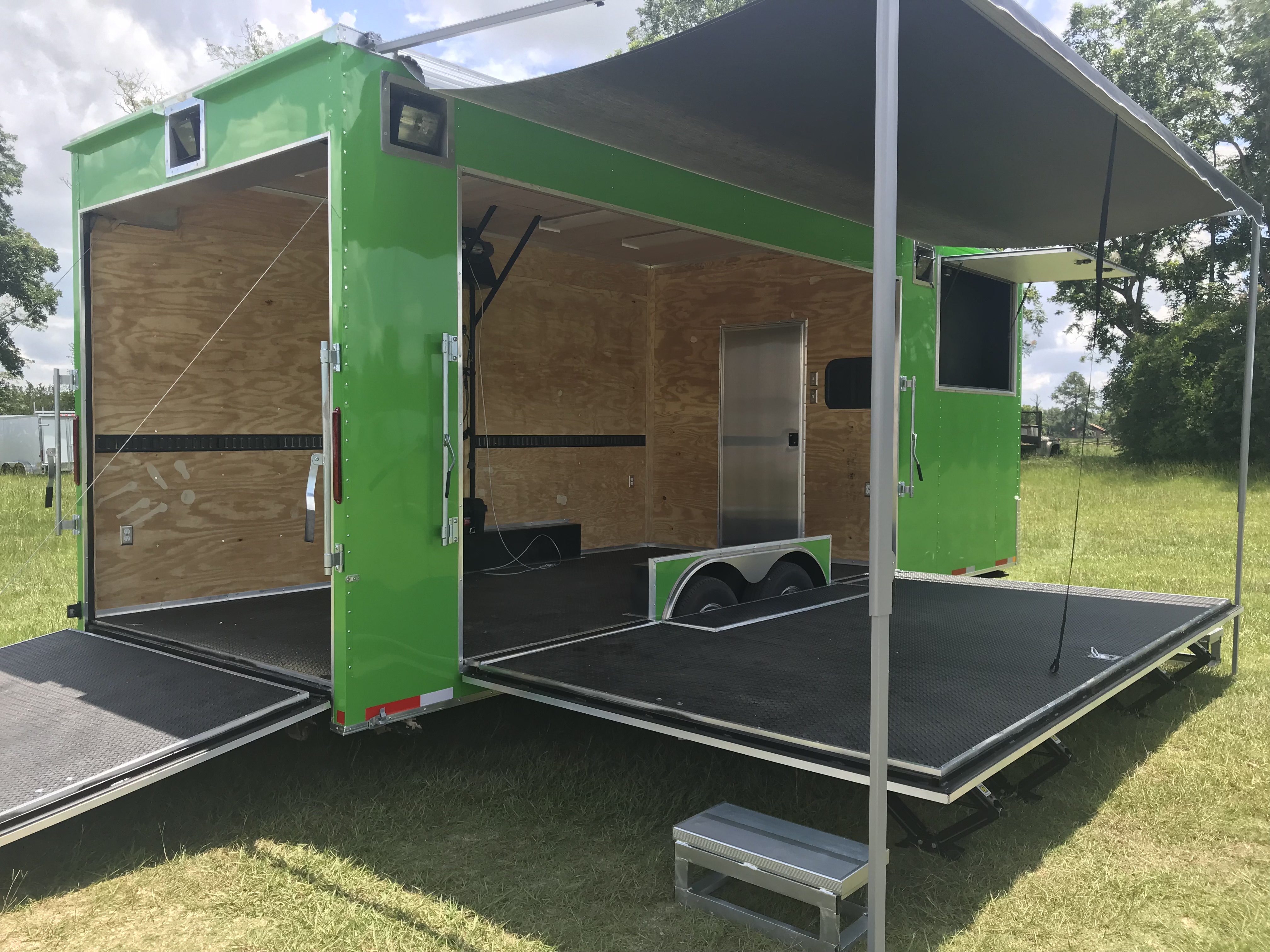

– 14′ Let down stage powered by Super winch and 12 volt battery
– (4) scissor Jacks under the stage
– (4) Scissor jacks under trailer (1) under each corner
– (1) set of custom built aluminum steps on side of stage
– Custom Built Inserts for the gaps when the stage is let down
– 15 foot Awing with protective covering (over the stage)
– Pair of Rear Bogey Wheels (steel)
– Rubber Tread Plate floor, ramp, & Flap

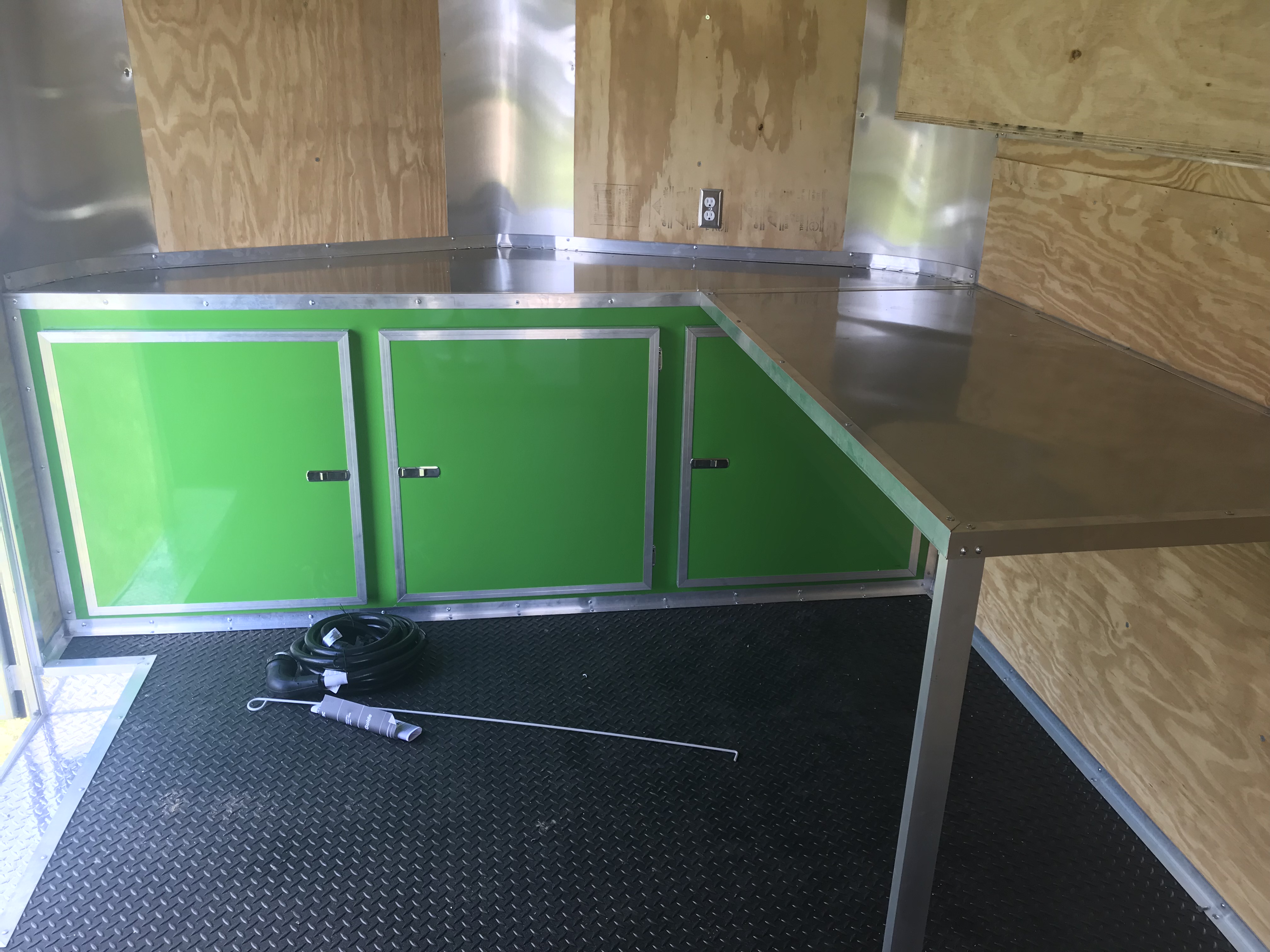

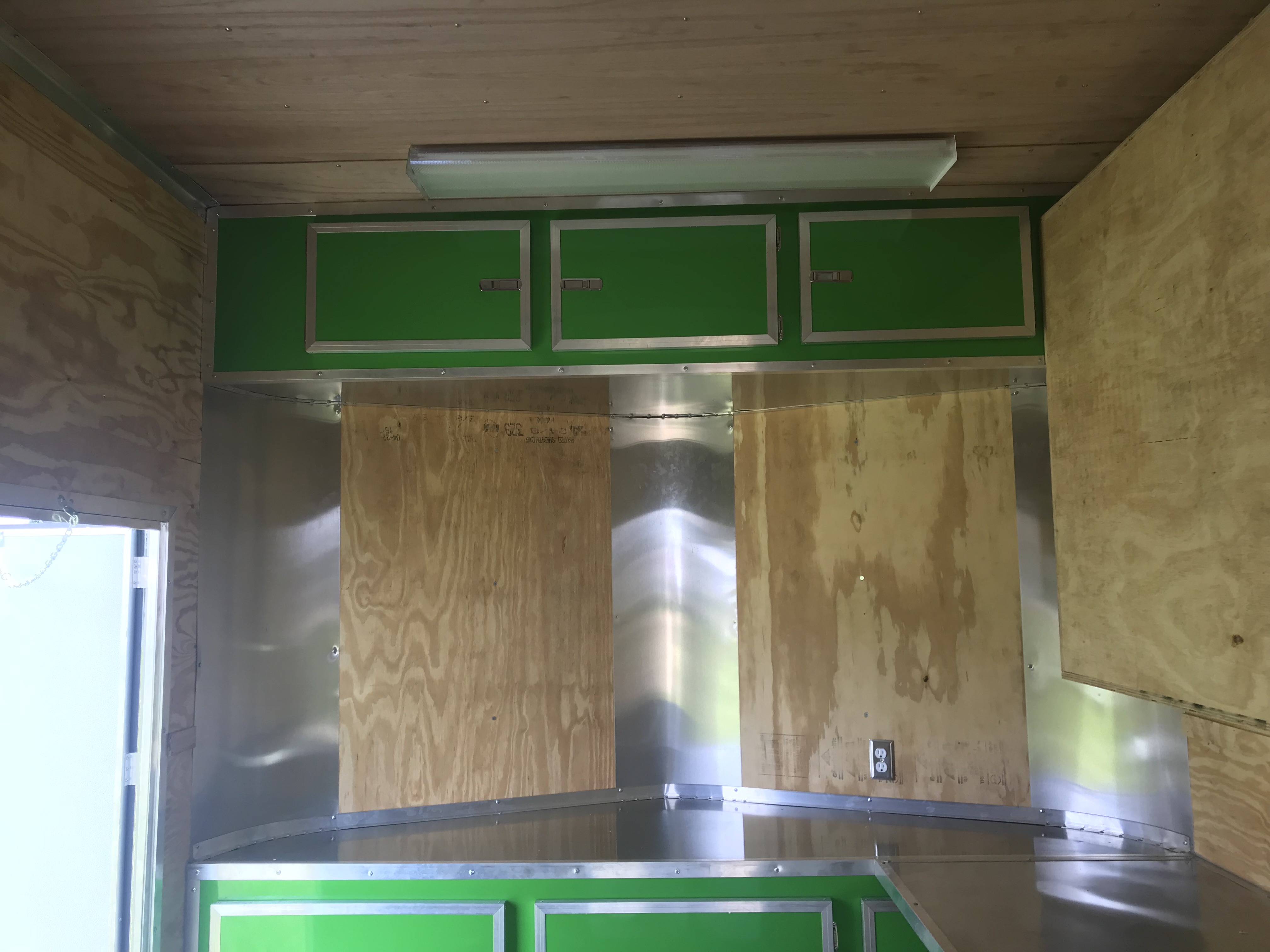

– Base Cabinet in Lime Green Aluminum (across the front of the trailer)
– Upper Cabinets in Lime Green Aluminum (across the front of the trailer)
– 30”x60” work table in mill finish aluminum in passenger side of office area

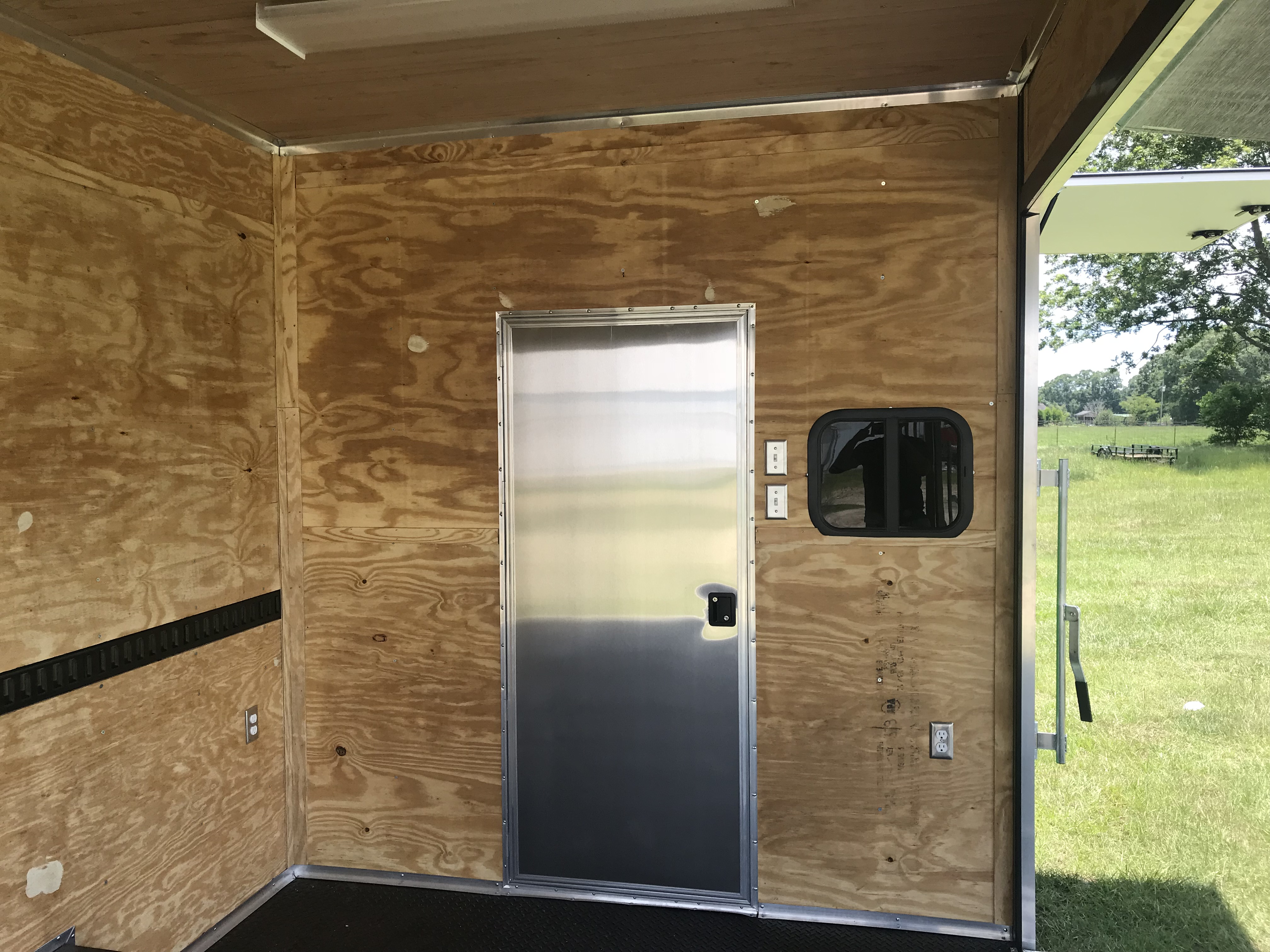

– Insulated Partition Wall with 32″ Door
– 15×18″ Tinted sliding glass window with screen (located in the partition wall)
– Styrofoam Insulated walls and ceiling in the front 8 foot office of the trailer
– Luan finished Ceiling
– 50 amp electrical Package
– (6) 4′ LED lights
– (7) interior Outlets
– 50 amp ship to Shore cord
– (5) Recessed LED Flood Lights
– Sand foot on tongue jack
– Deluxe tag bracket
– DOT Reflector Tape
– Drip edges over all doors
