Description

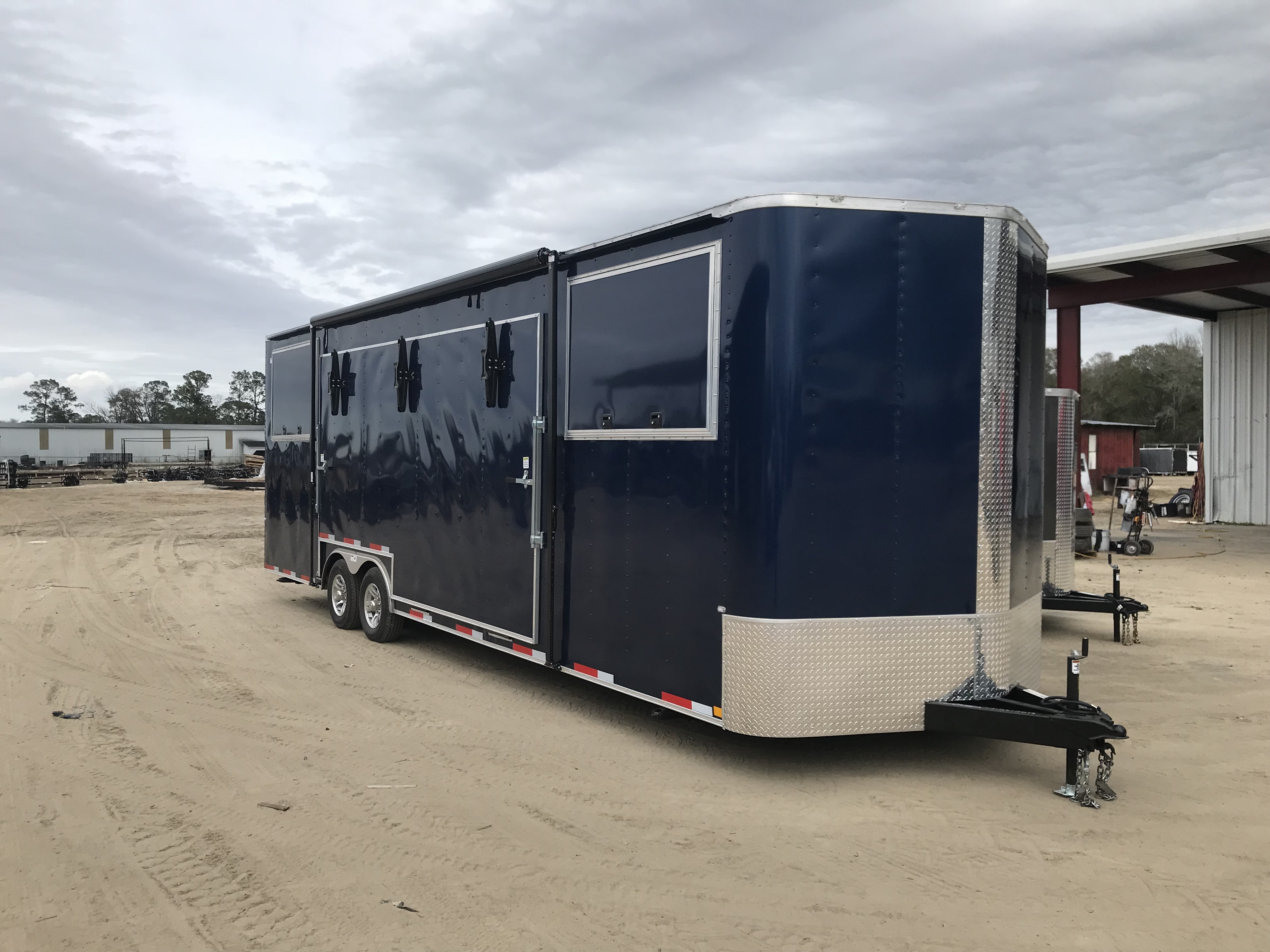

8.5×28 Tandem Axle Tounament Stage Trailer –
Included Features:
2×6 Tubular main frame – NO I-BEAM
16″ on center floor cross members
Tubular 16″ on center wall studs
Tubular 16″ on center roof cross members
Triple Tube Tongue
Solid front wall construction
Dust Shield
Asphalt Undercoating
3/4″ Plywood floor

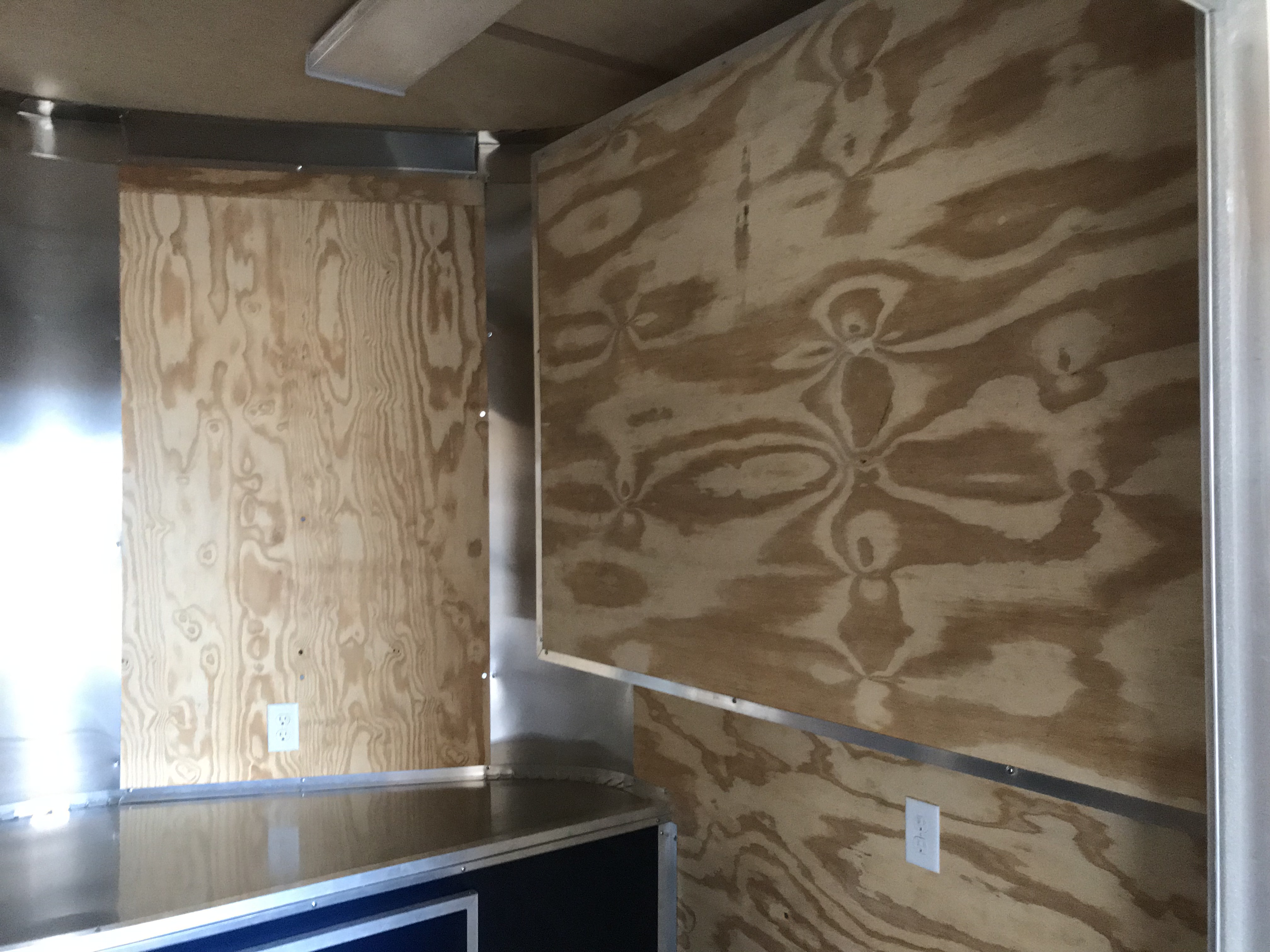

3/8″ Plywood walls
Screwed exterior
Indigo blue exterior aluminum
8 foot 6 inch interior height
5200 lb Leaf Spring axles
Electric Brakes Both axles with breakaway kit
Easy Lube Hubs
Elite front V-nose

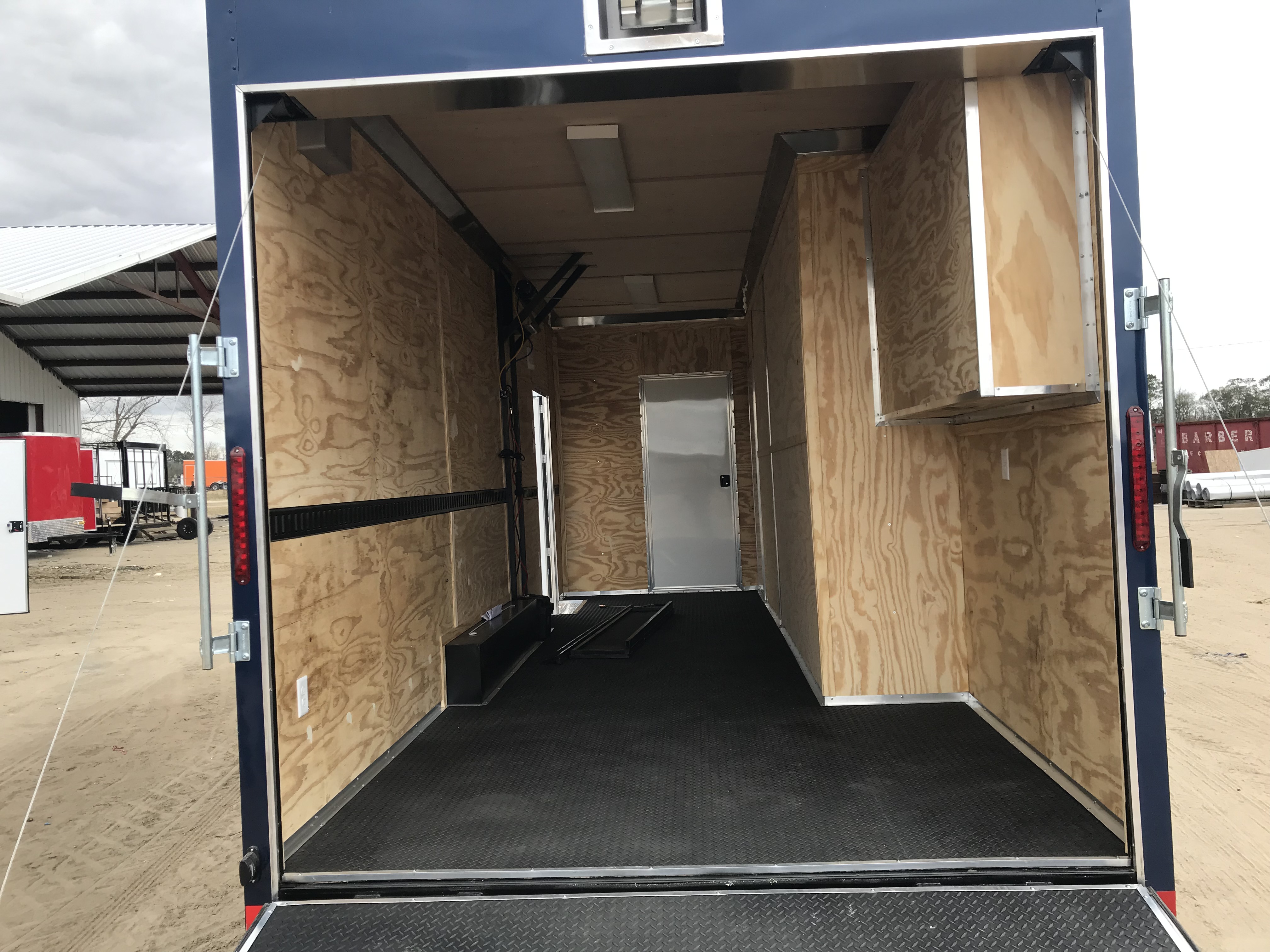

Heavy Duty Rear ramp w/ flap 4500#
Alloy Aluminum wheels with Radial Tires
Corrugated Galvanized Mesa Roof
All LED lights
19 Feet of E-track welded in driver side wall

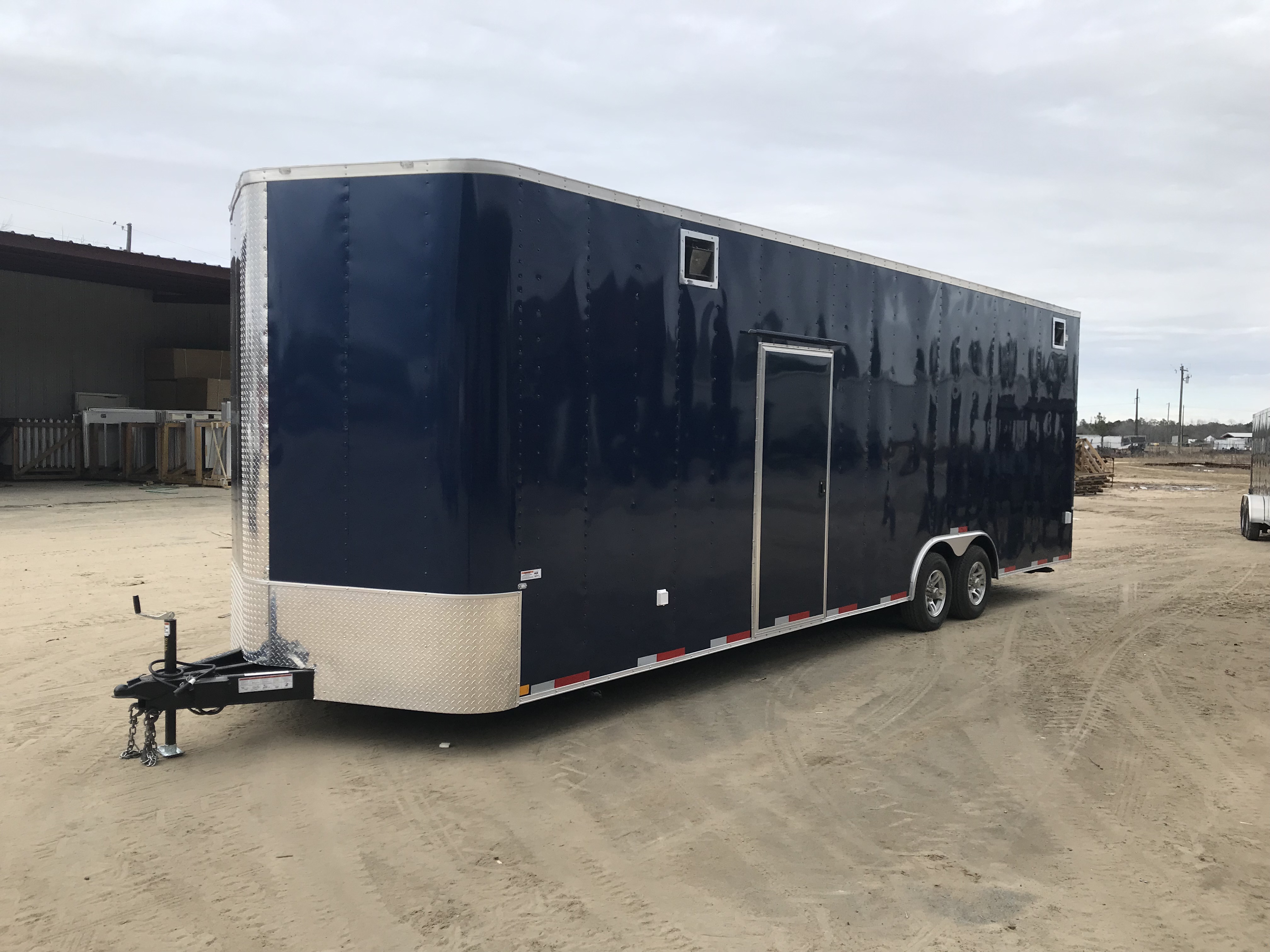

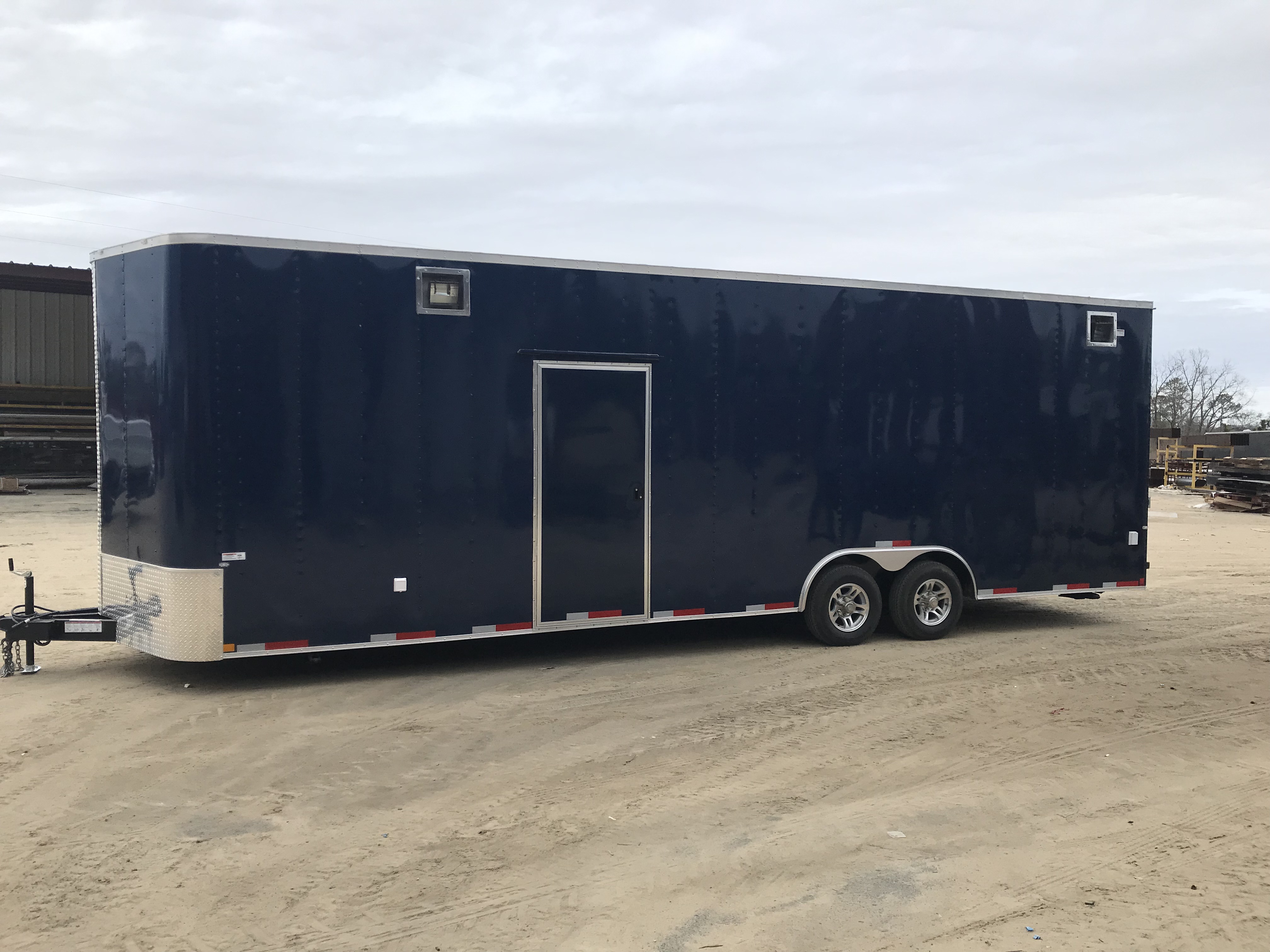

36″ R/V Style side door with step well
24″ Diamond Tread Stoneguard
2 5/16th Front coupler

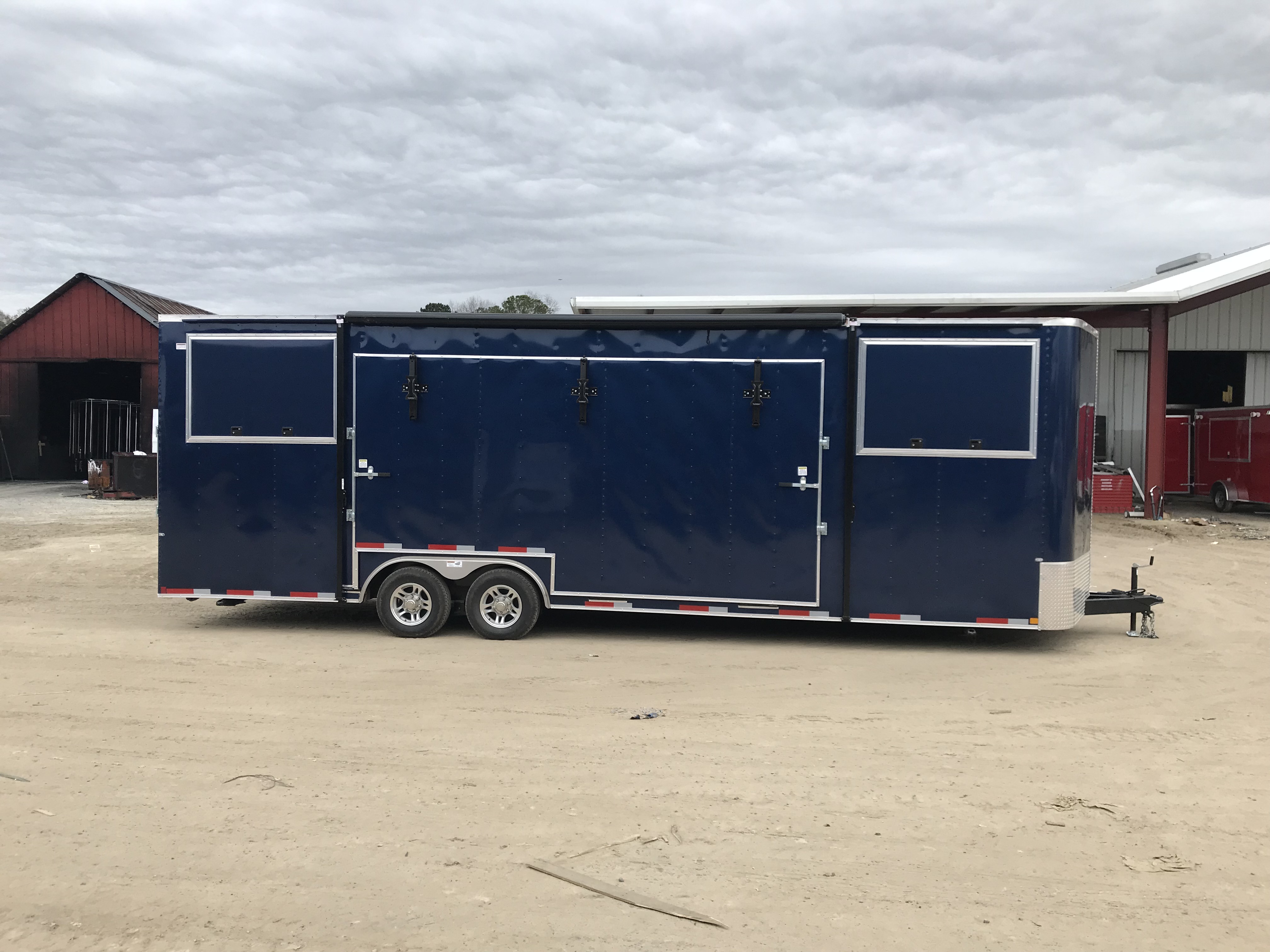

(2) 40 x 60″ Flat screen TV Compartments with top hinge lift up awning with R/V latch – Black interior

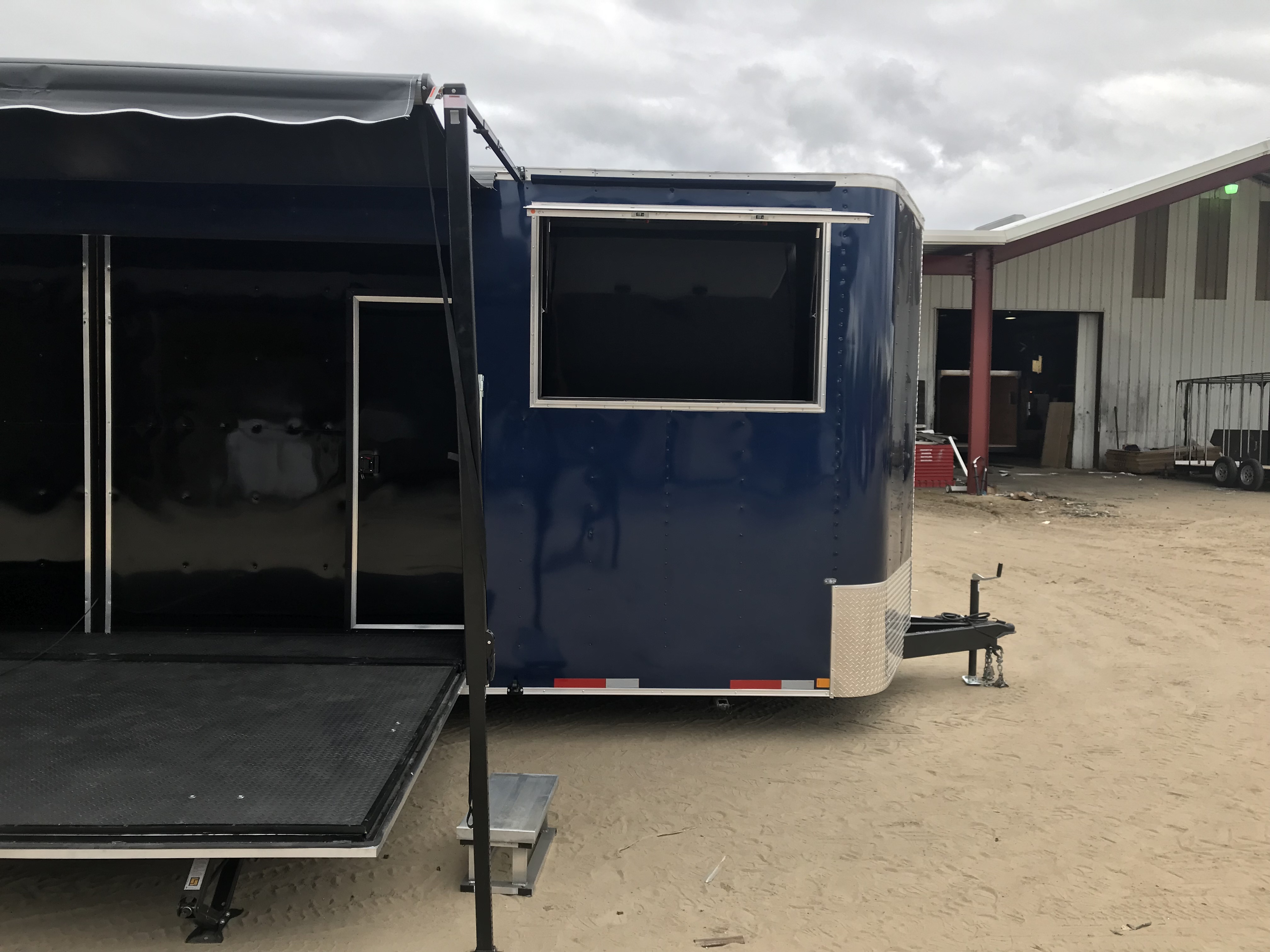

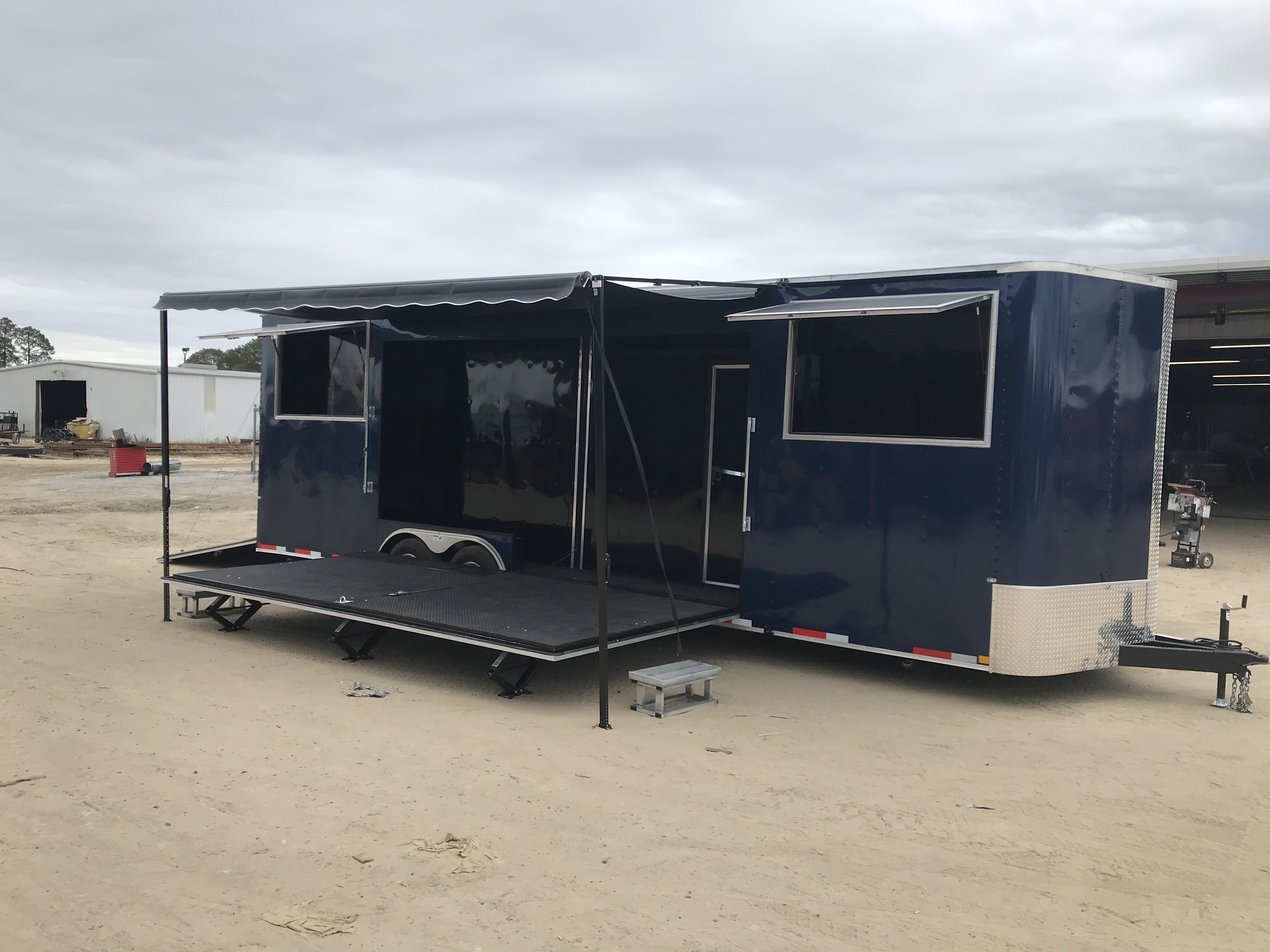

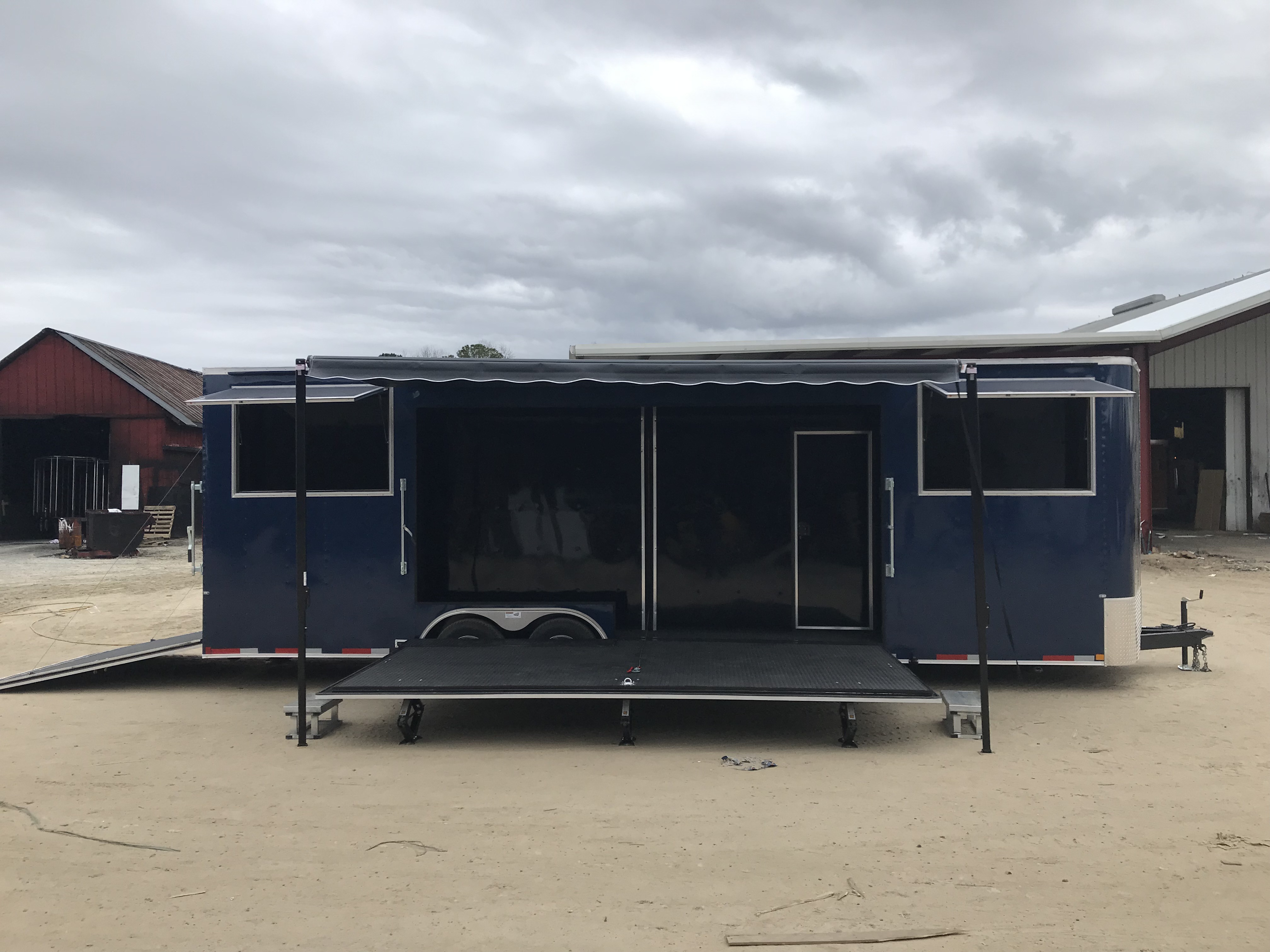

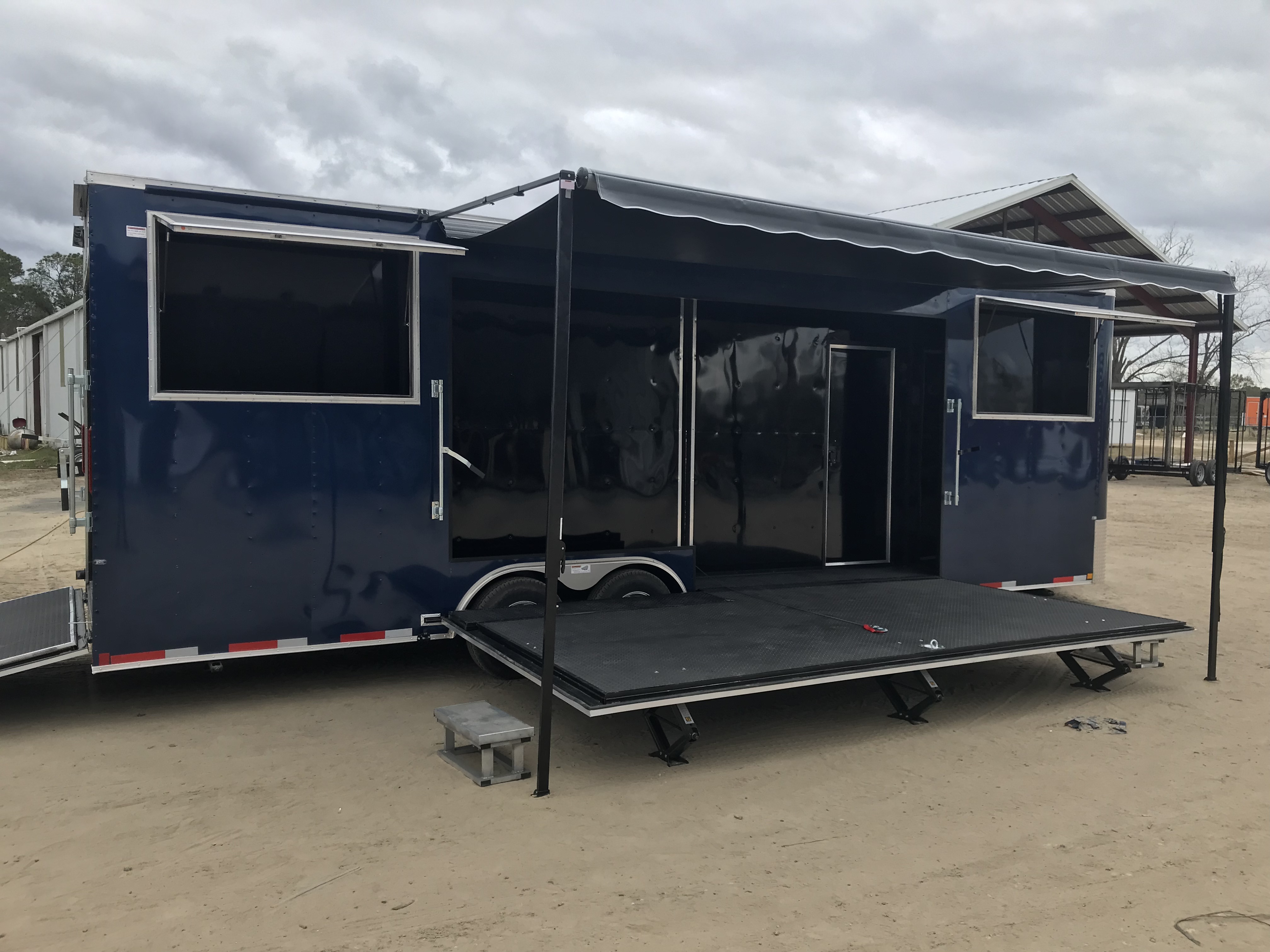

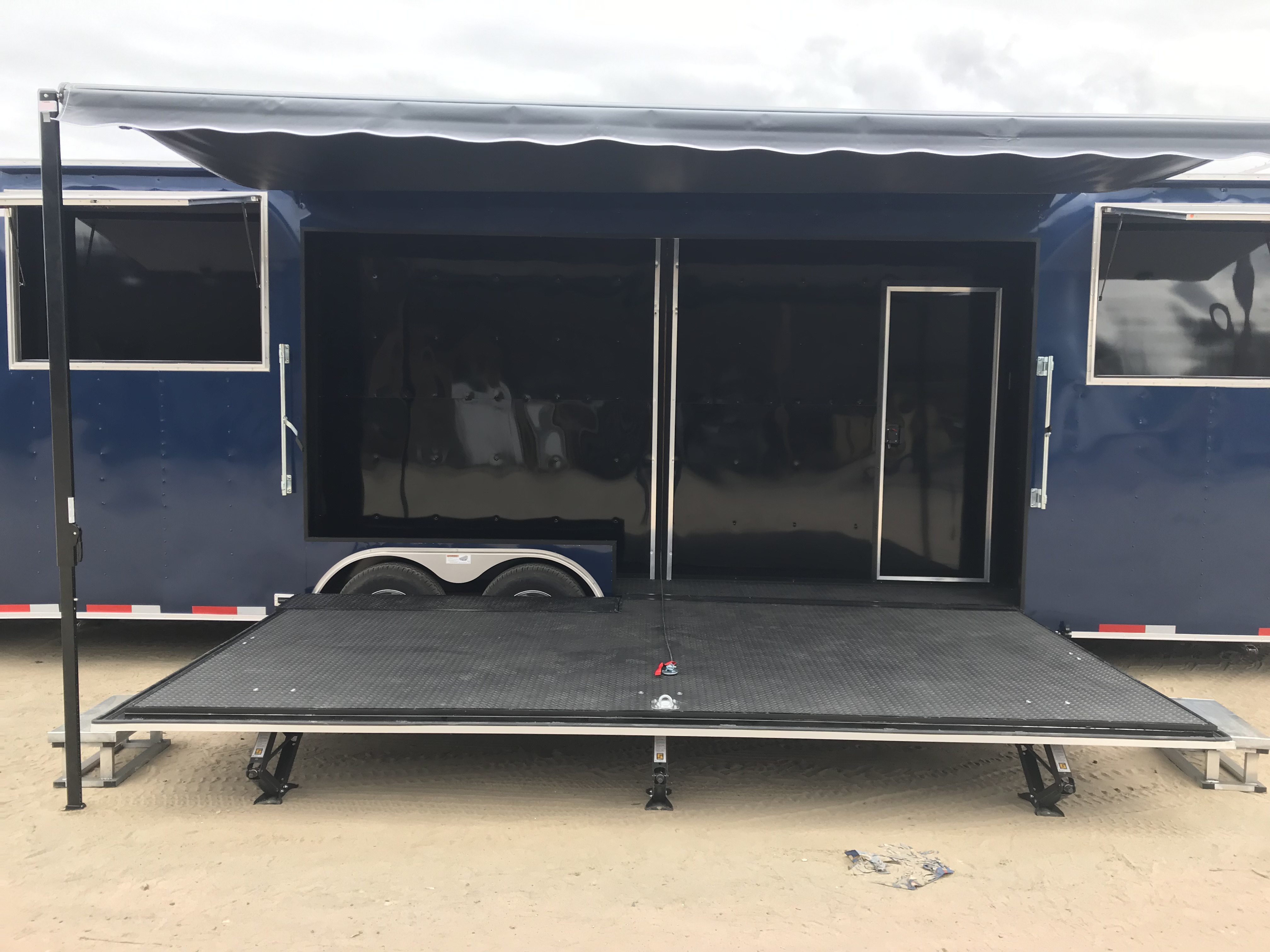

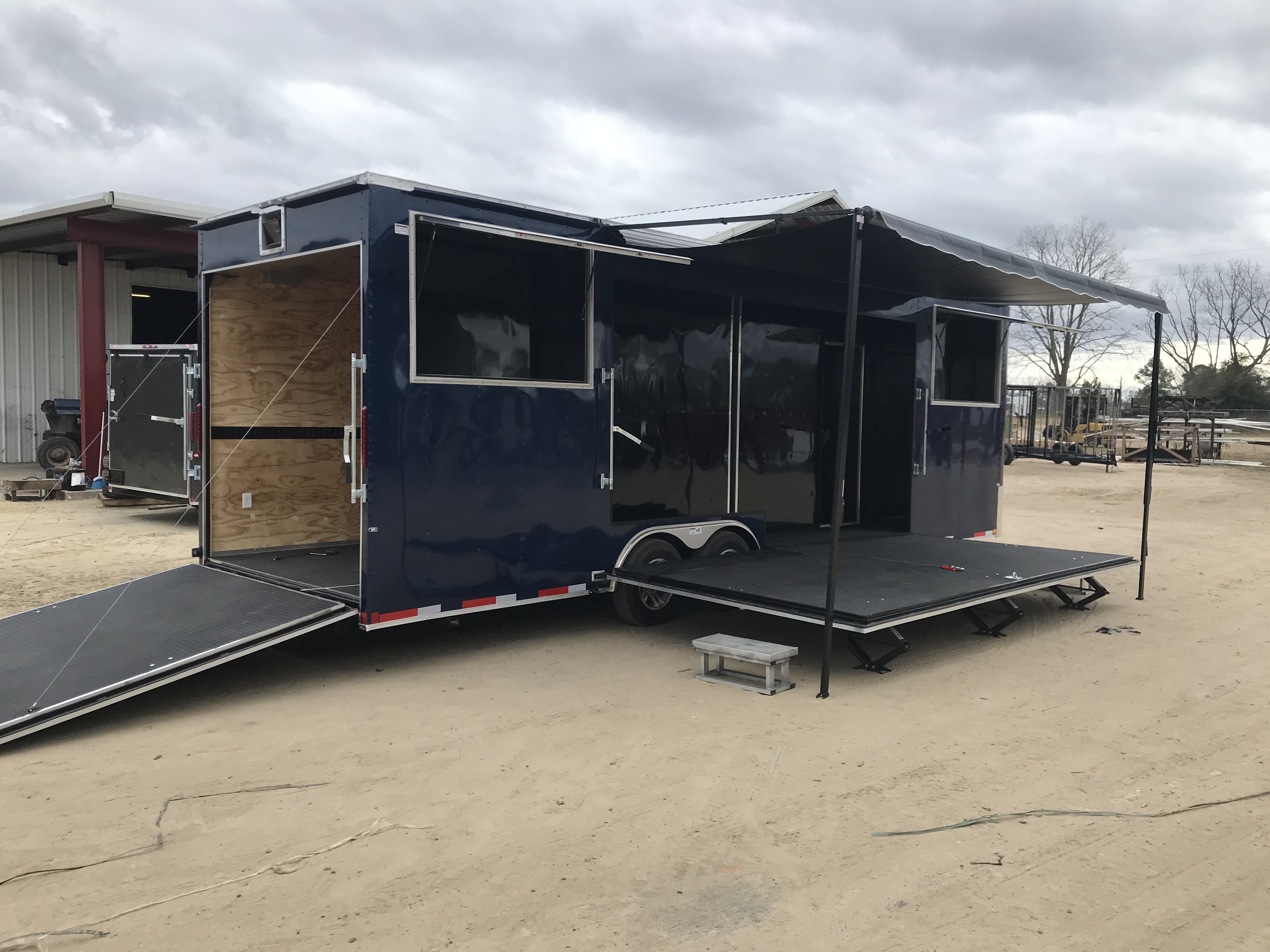

14′ Let down stage powered by Superwinch and 12 volt battery
(4) scissor Jacks under the stage
(1) set of custom built aluminum steps on side of stage
Custom Built Inserts for the gaps when the stage is let down
16 foot Awning with protective covering (over the stage)
14 foot long x 2 foot deep Blacked out partition wall behind stage with 32” RV style Door
Pair of Rear Bogey Wheels (steel)
Rubber Tread Plate floor, ramp, and Flap

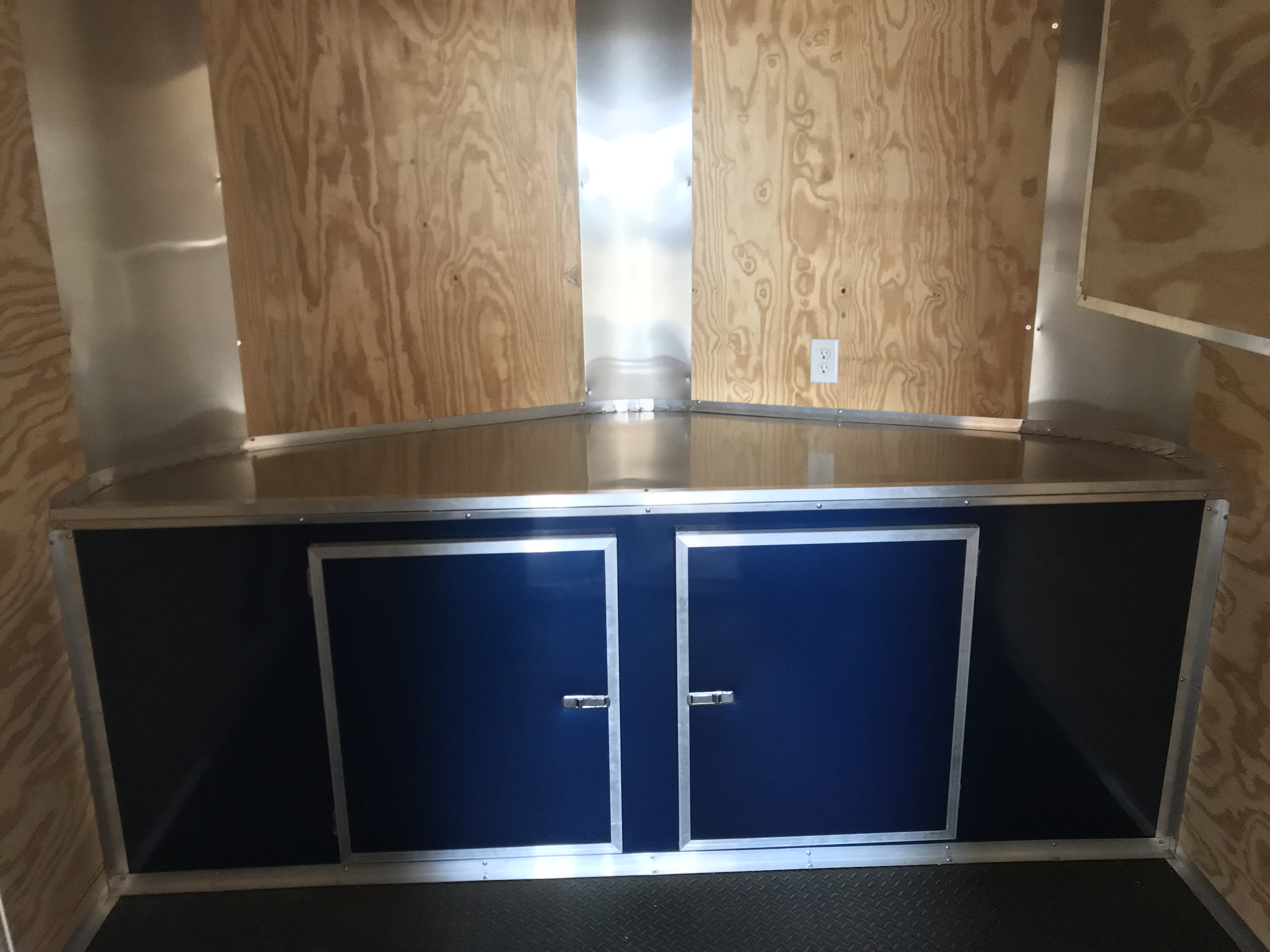

Base Cabinet in Indigo Blue Aluminum (across the front of the trailer)

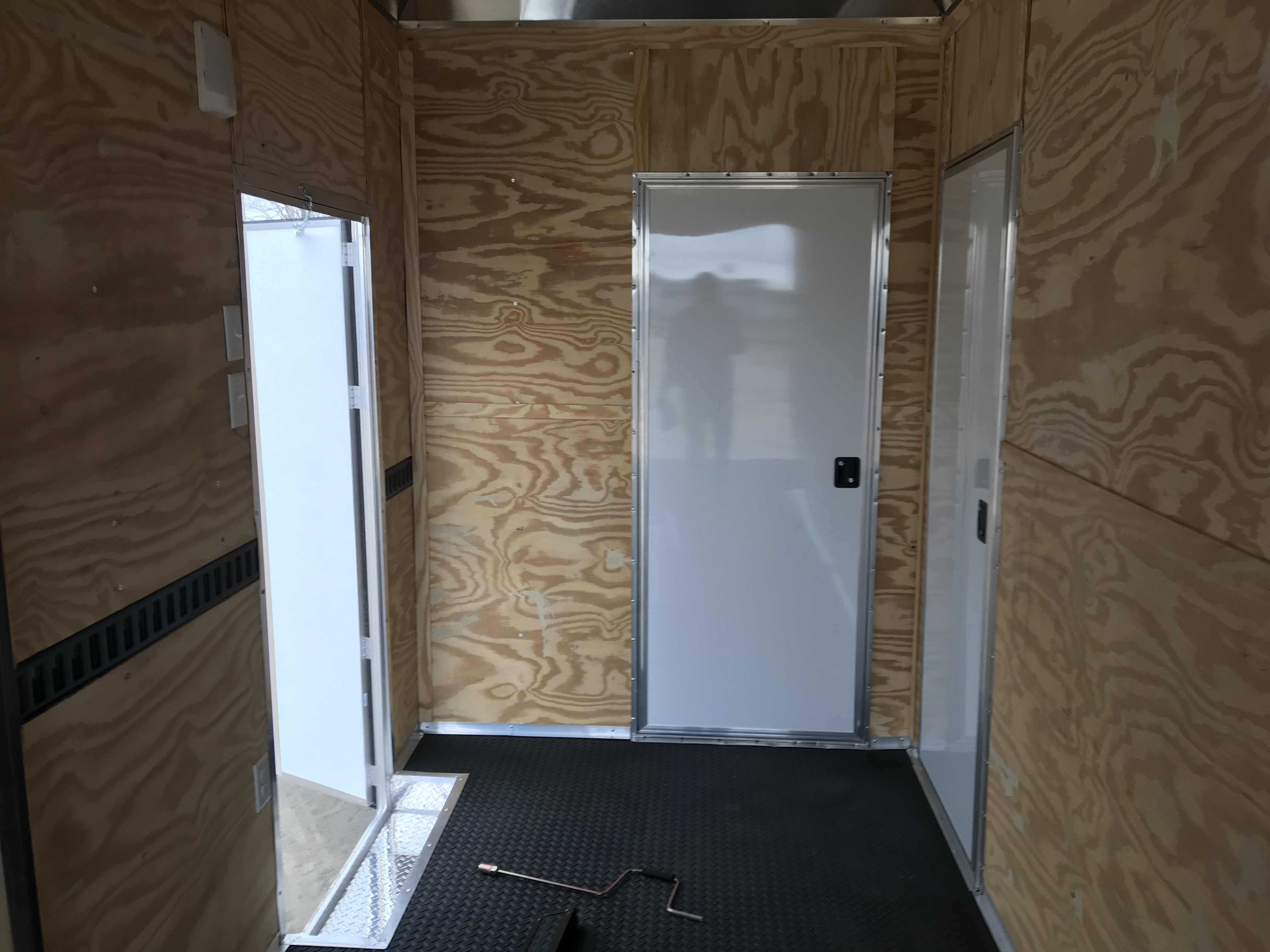

Insulated Partition Wall with 32″ RV Style Door leading to office area
Styrofoam Insulated walls and ceiling only in the front 6 foot office of the trailer
Luan finished Ceiling

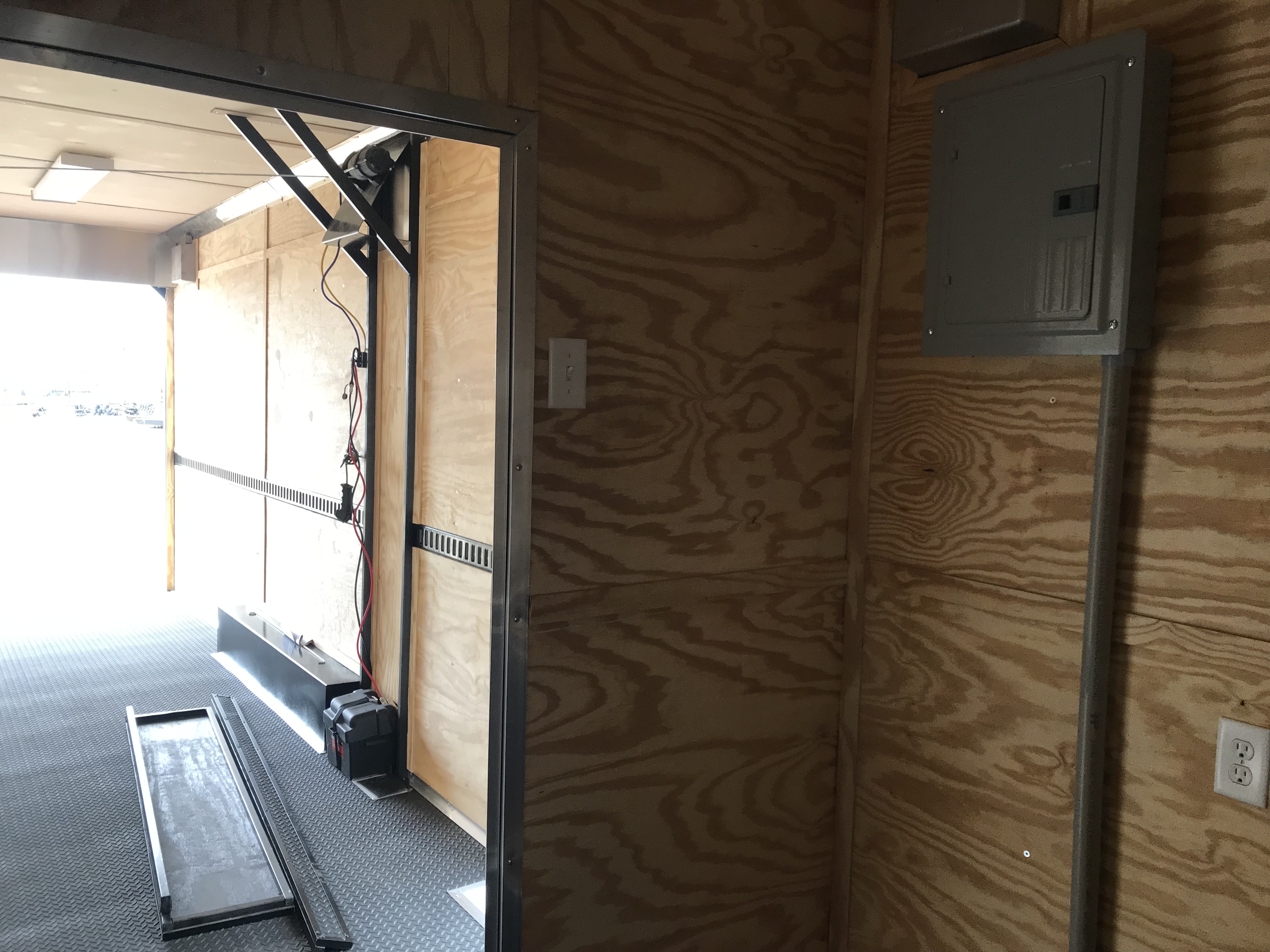

50 amp electrical Package
(6) 4′ Fluorescent lights
(10) interior Outlets
50 amp ship to Shore cord
(3) 300 Watt recessed Quartz Lights
Sand foot on tongue jack
Deluxe tag bracket
DOT Reflective Tape
Drip edges over all doors
