Description

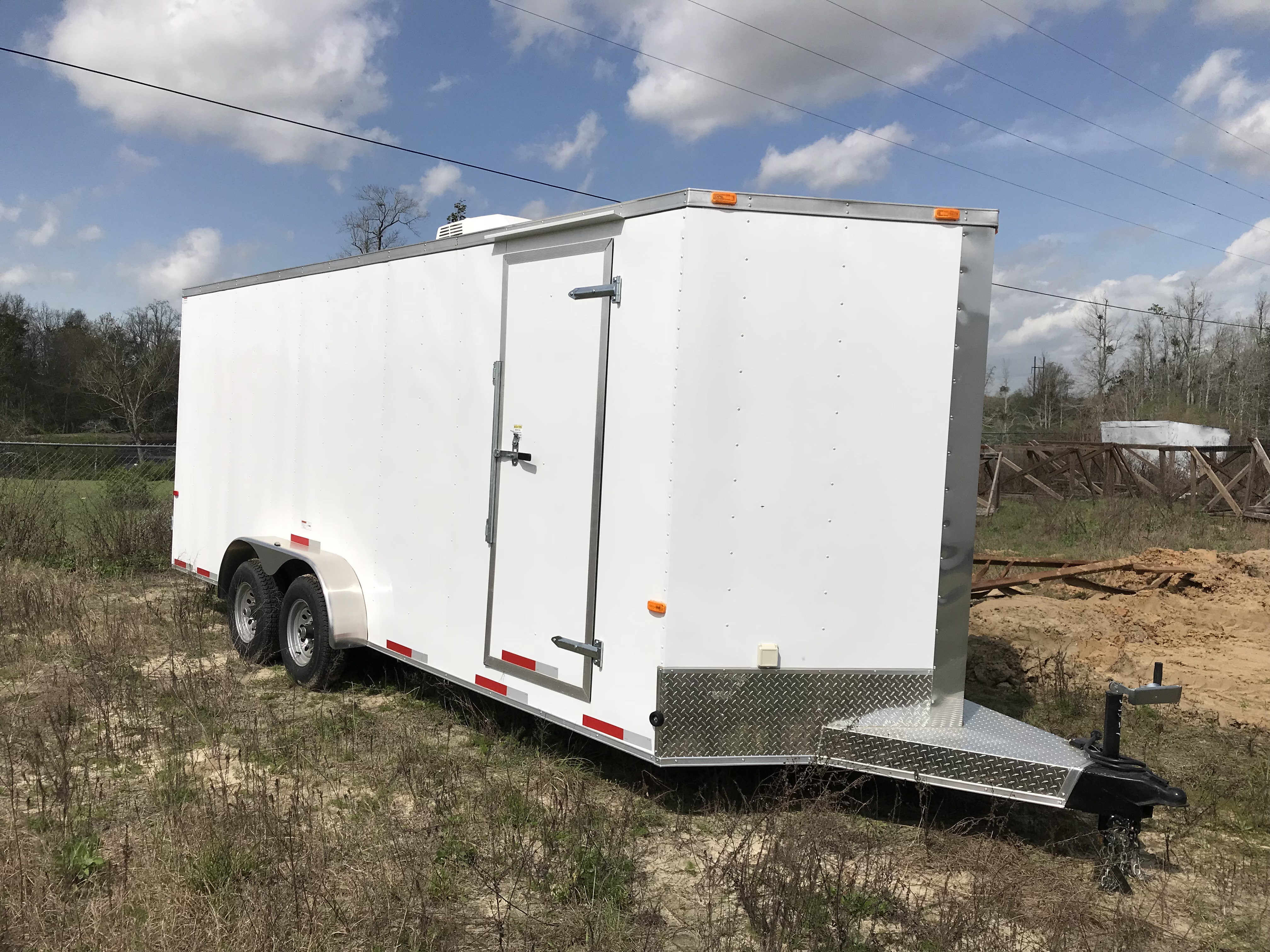

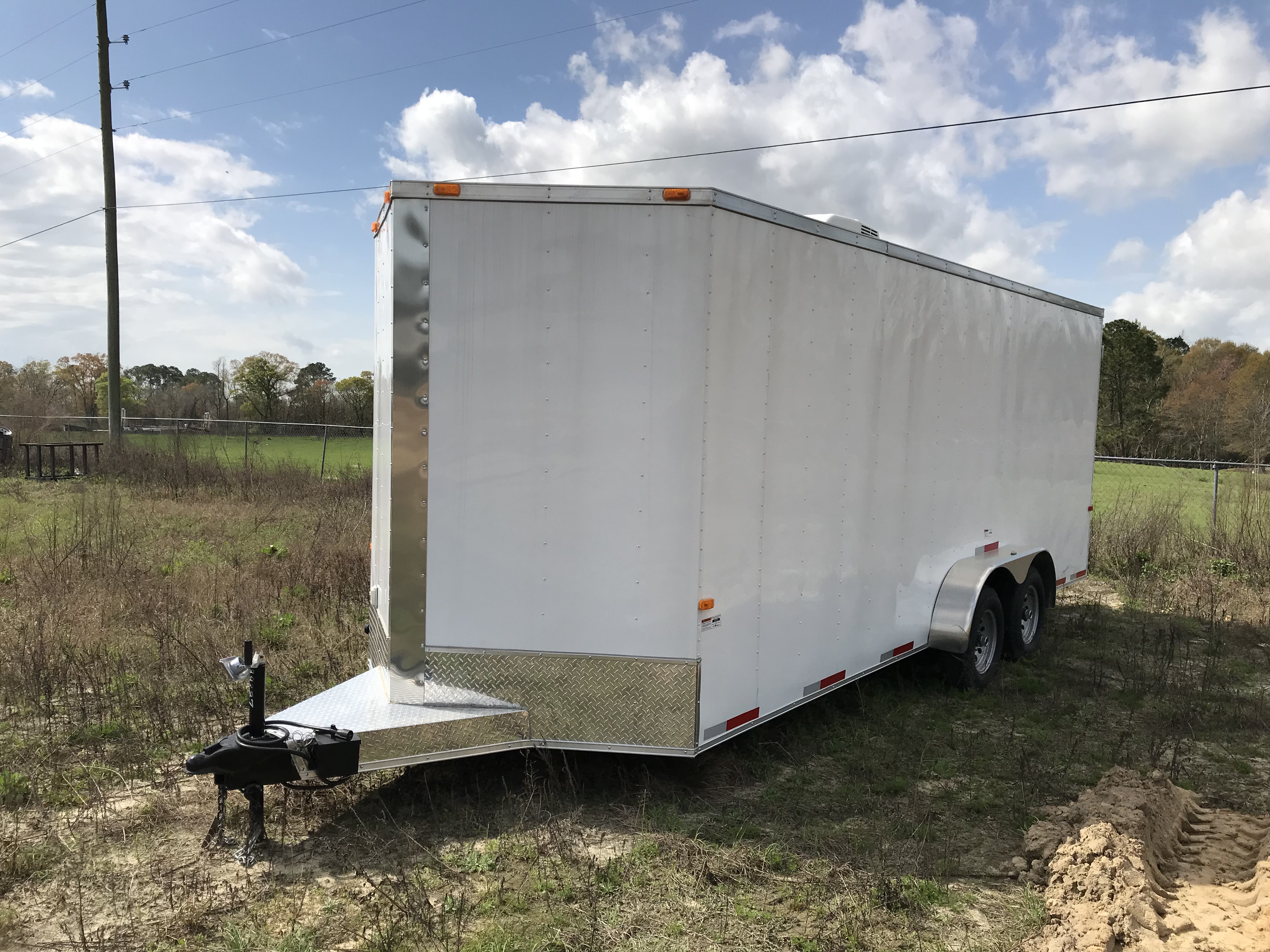

7×20 Tandem Axle – Sport Series.
Included Features:
Triple Tube Tongue
Extended Tongue
Diamond Tread covered tongue
2 Foot V-Nose (in addition to the 20 foot lenght)
2×6 Tubular Main frame (No I-beam)
16″ on center floor cross members
Tubular 16″ on center wall studs
Tubular 16″ on center ceiling
5200# Dropped Leaf Spring Axles
Electric Brakes (both axles)
Easy Lube Hubs
Electric Brake Wiring ran inside steel tubing main frame
225/75/15 Radial Tires
32″ Bar Lock Side Door
White Exterior Aluminum .030 gauge
Screwed Exterior
Smooth aluminum Fenders

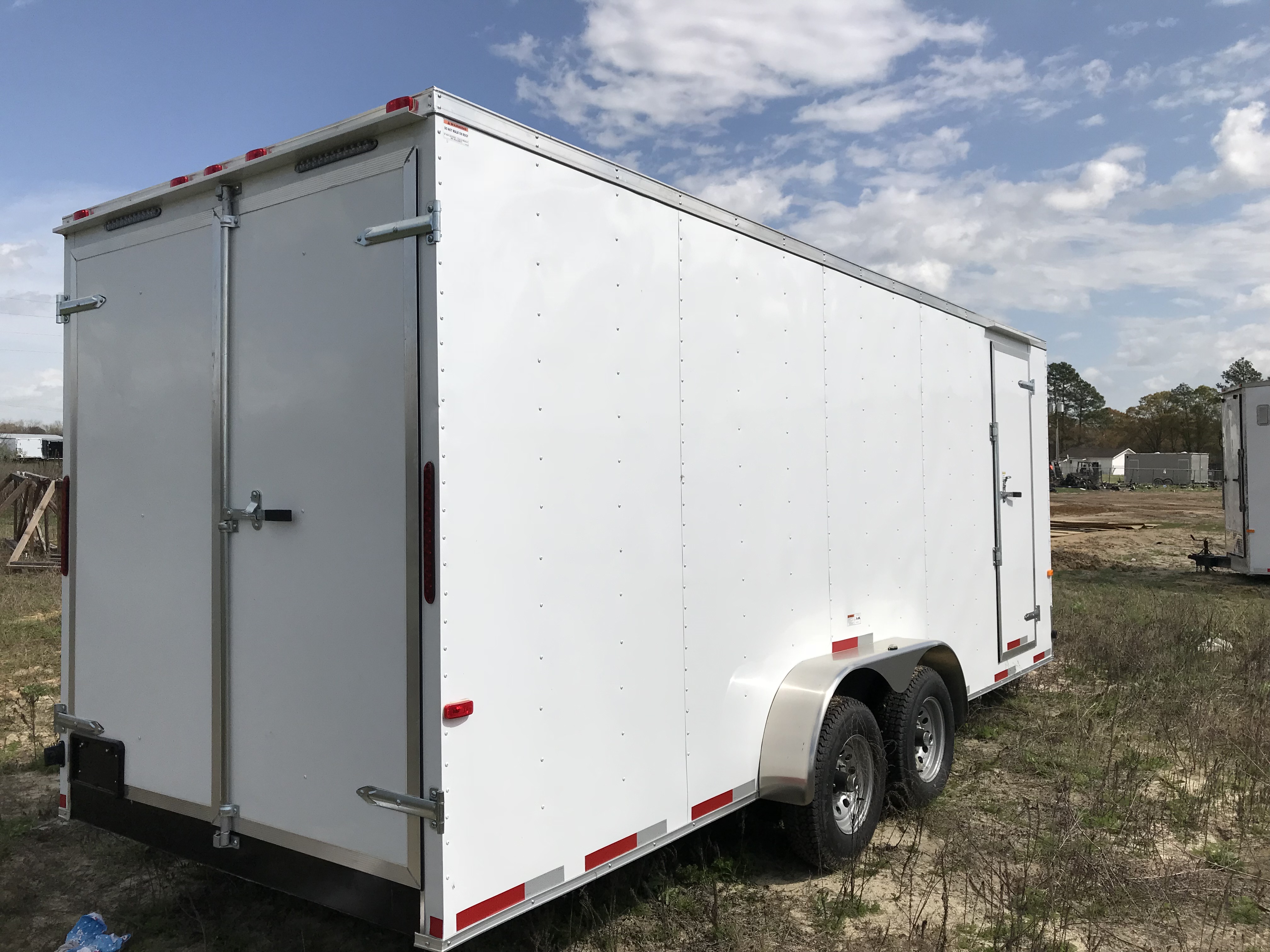

Double Rear Doors
3/4″ Plywood Floor Painted Gray
3/8″ Plywood Walls
Raw luan ceiling liner
Insulated walls
Insulated roof
Insulated Floor
7 foot Interior Height
Diamond Tread Stone Guard
All LED Lights
2 5/16th Front Coupler
(1) 12 volt dome light
(2) 12 volt LED rear loading lights
Dust shield
Solid front wall construction
Corrugated galvalume Mesa style roof
Access panels to fender lights
Asphalt Undercoating
Drip Edges Over All Doors
Sand foot
Deluxe license plate holder

30 Amp electrical Package
(2) Interior receptacles
(2) 4 Foot LED lights
30 Amp ship to shore cord (25feet long)
13,500 BTU A/c with heat strip
