Description

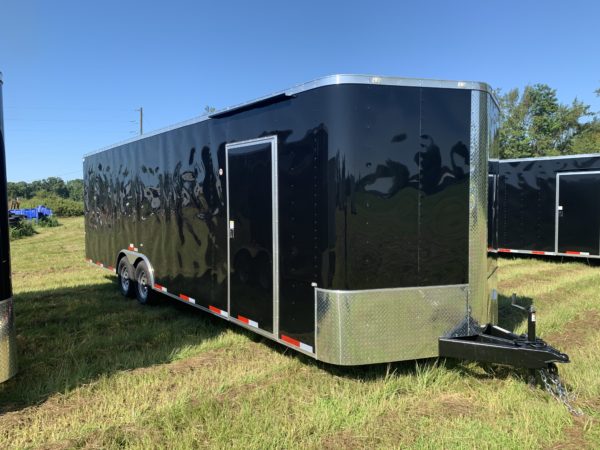

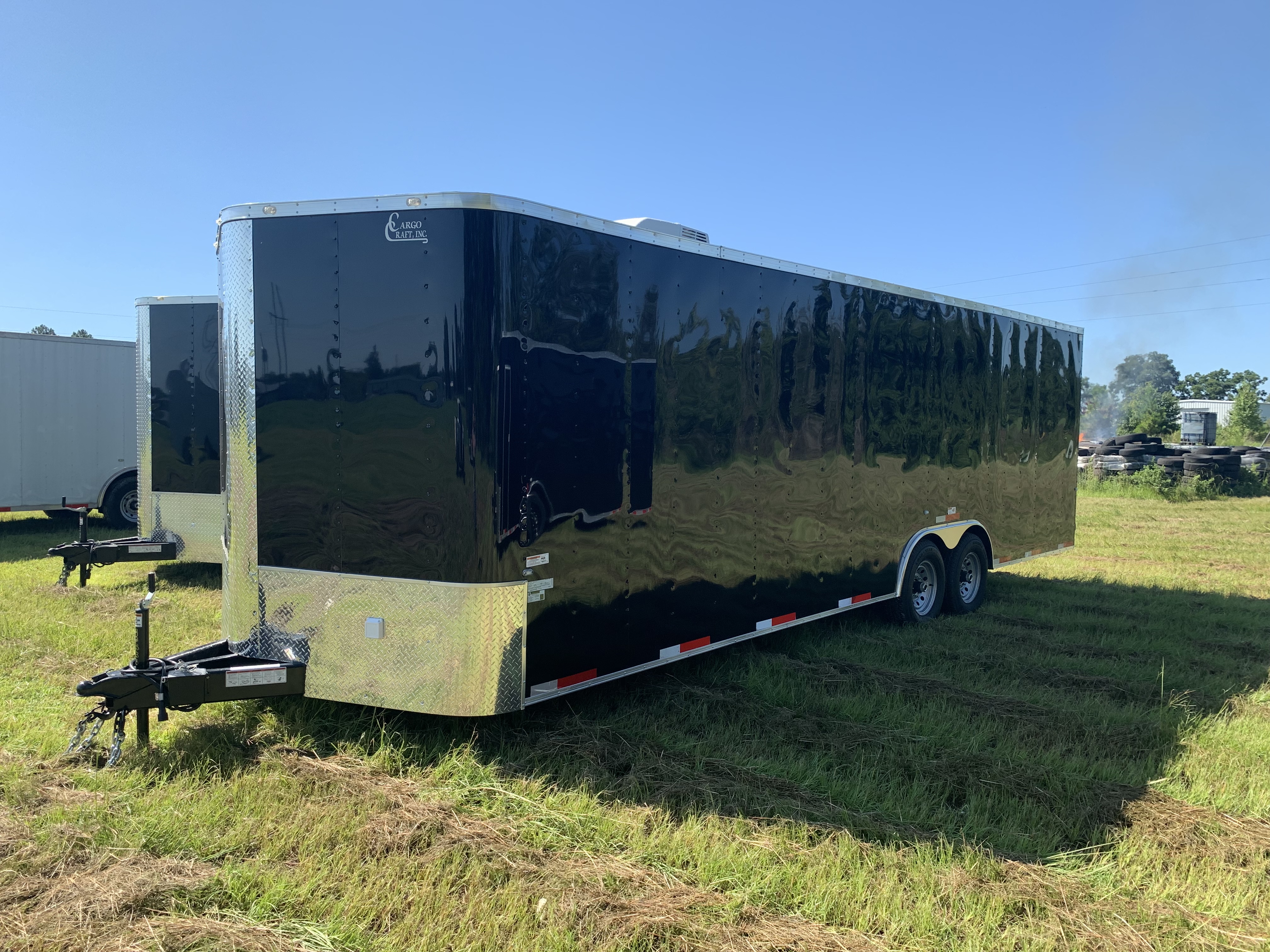

8.5×26 Tandem Axle with rounded front V-nose
Included Features:
2 Foot rounded V-nose in addition to 26 foot box
2×6 Tubular Main frame (No I-Beam)
Triple tube tongue
16″ on center floor cross members
Tubular 16″ on center walls
Tubular 16″ on center ceiling
7000 lb Dropped Leaf Spring axles
Electric Brakes (both axles)
Easy Lube Hubs
Electric Brake wiring ran inside steel tubing
Front V-nose Diamond Tread Stone guard
Aluminum Teardrop fenders
Black exterior aluminum .030 gauge

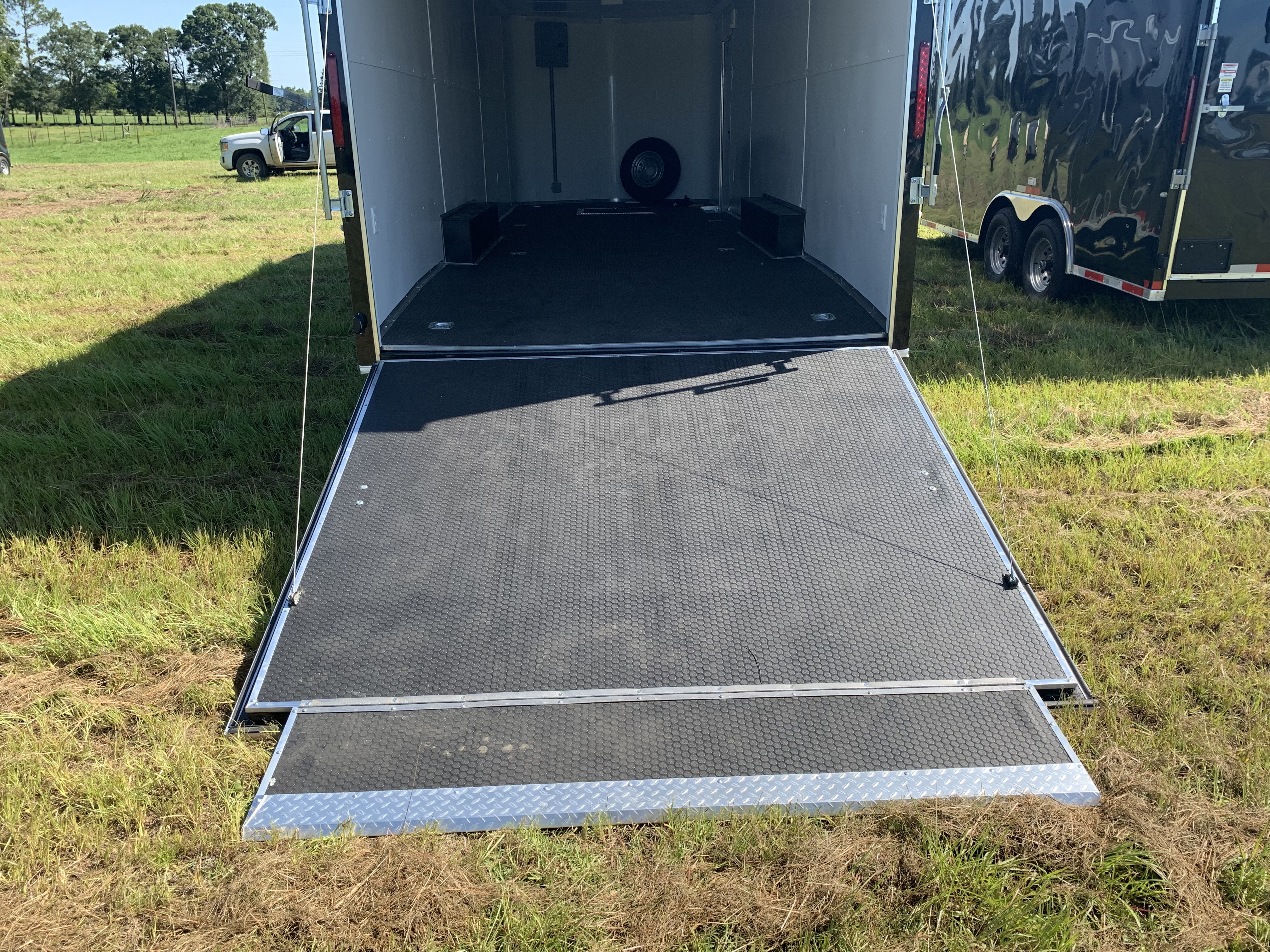

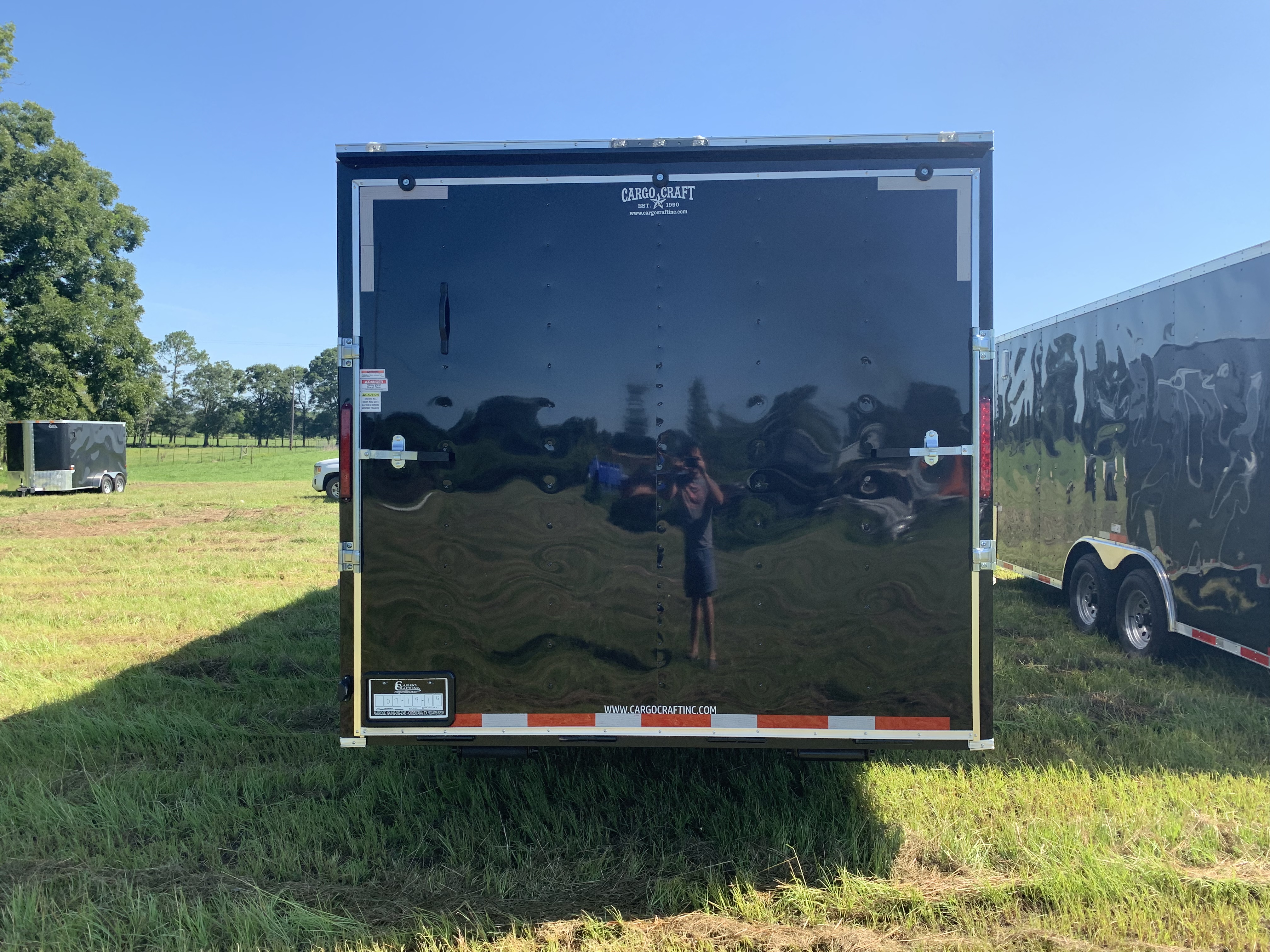

Rear 4500 lb Heavy Duty Ramp Door with flap
4 Foot beaver tail on rear
3/4″ plywood floor
7/16” OSB walls

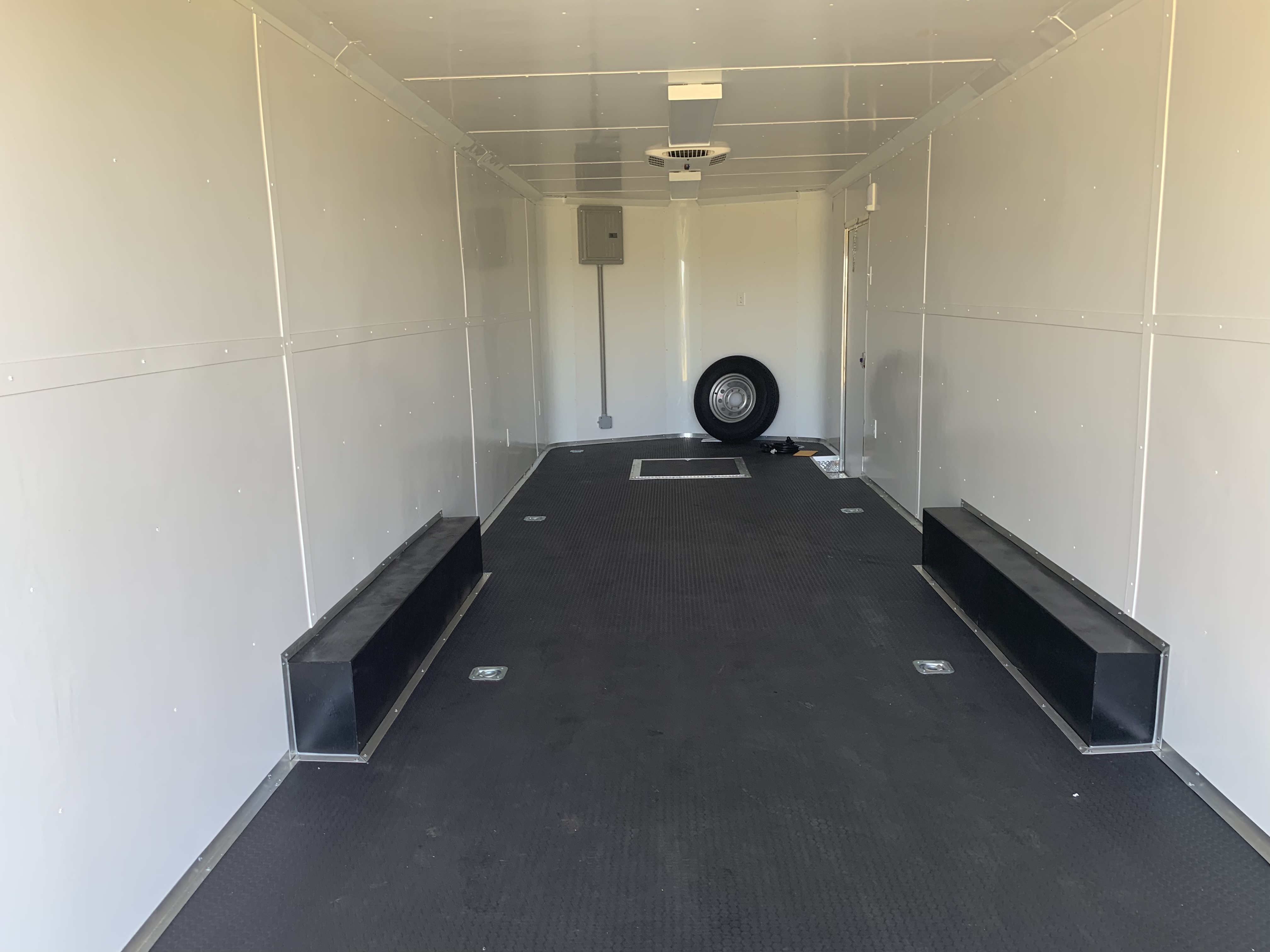

White vinyl walls and ceiling
Rubber coin plate floor, ramp, and flap
Insulated walls and ceiling
(8) D-ring tie downs in floor – recessed and welded in place
16″ Silver modular steel Wheels
Radial Tires 235/80/16

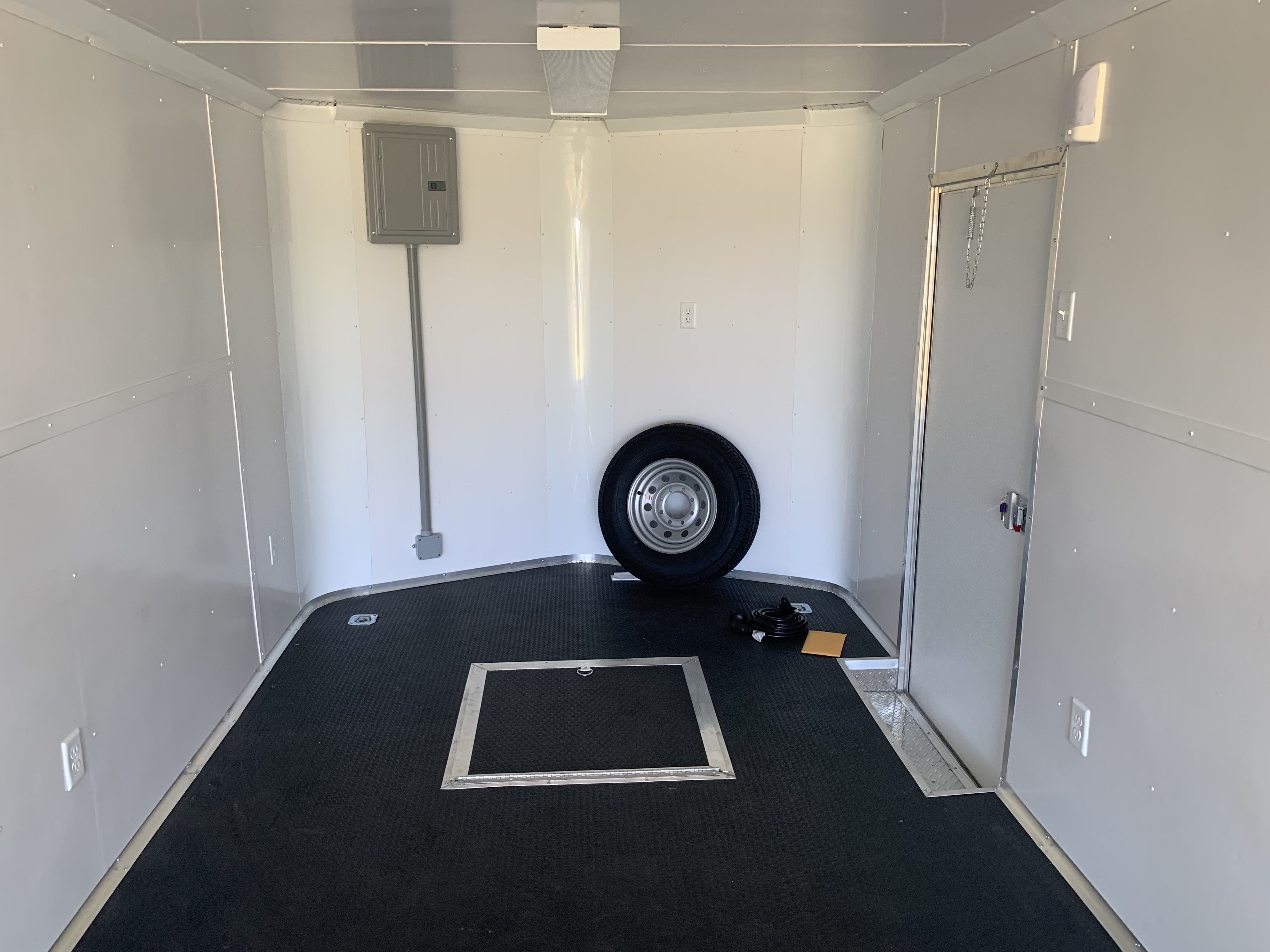

Recessed spare tire compartment in floor
Spare Tire – Radial 235/80/16
7 Foot interior height
All LED Lights
2 5/16th Front Coupler
36″ RV Style side door
Built in step at side door
2000 lb Tongue Jack
Dust shield
Solid front wall construction
Corrugated galvanized Mesa roof
Asphalt Undercoating
Drip edge over all doors
Screwed Exterior
Deluxe tag bracket w/ light
Sand foot on tongue jack
DOT Reflective Tape

30 Amp electrical package
30 Amp panel box
(6) Interior outlets
(3) 4 Foot fluorescent lights
30 Amp ship to shore cord (25 feet in length)
15,000 BTU A/C Unit with Heat Strip
